Home >> Honda >> 2007 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Locations >> Harness Locations >> Throttle Actuator Control Module Subharness

Throttle Actuator Control Module Subharness

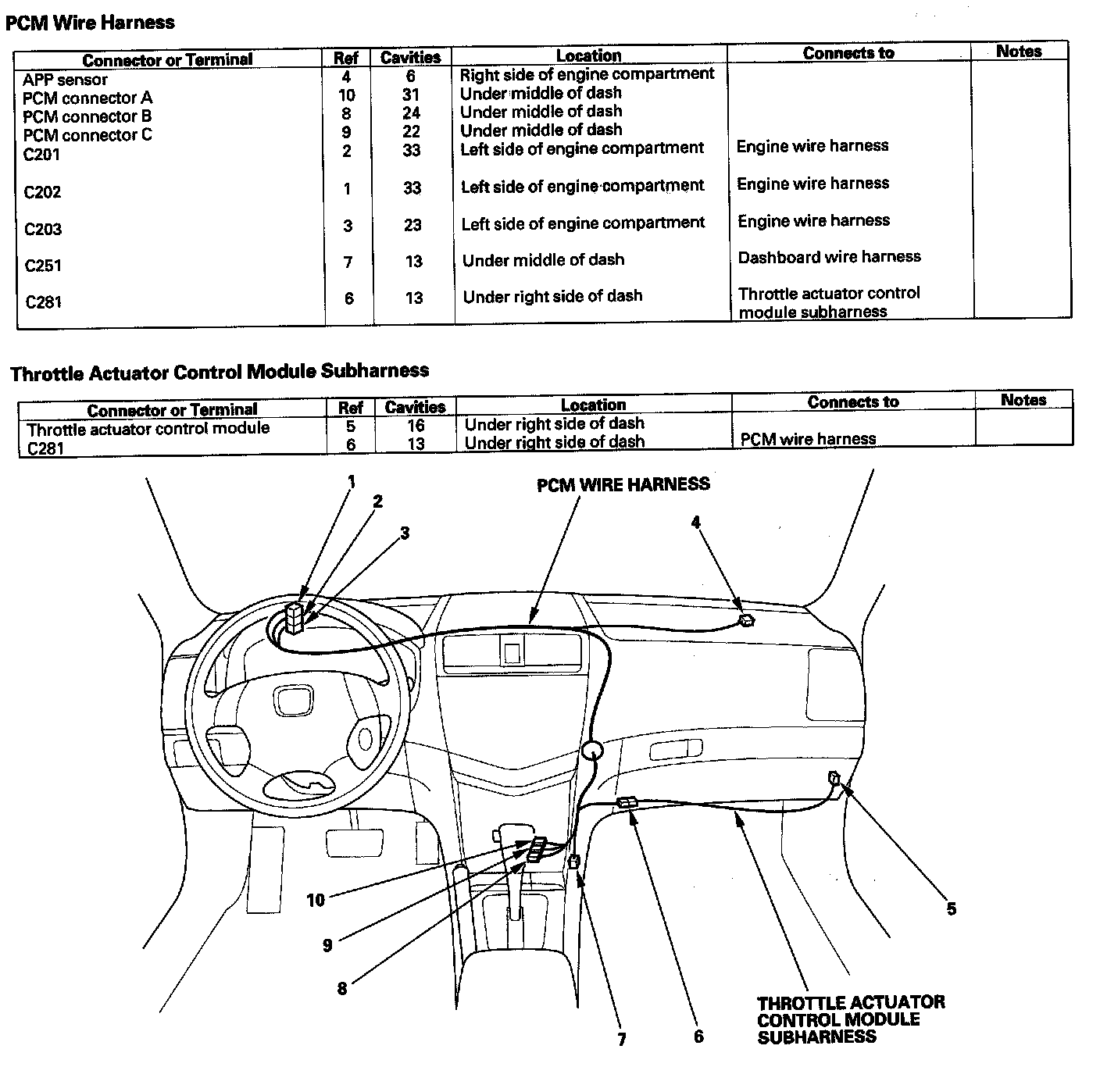

PCM Wire Harness/Throttle Actuator Control Module Subharness:
