Removal and Replacement
Starter Removal and InstallationRemoval
1. Make sure you have the anti-theft codes for the audio unit (and navigation code if equipped), then write down the audio presets. Make sure the ignition switch is OFF.
2. Disconnect the negative cable from the battery first, then disconnect the positive cable.
3. Remove the battery.
4. Remove the harness clamp (A).
5. Disconnect the starter cable (B) from the B terminal, then disconnect the BLK/WHT wire (C) from the S terminal.
6. Remove the two bolts holding the starter, then remove the starter.
Installation

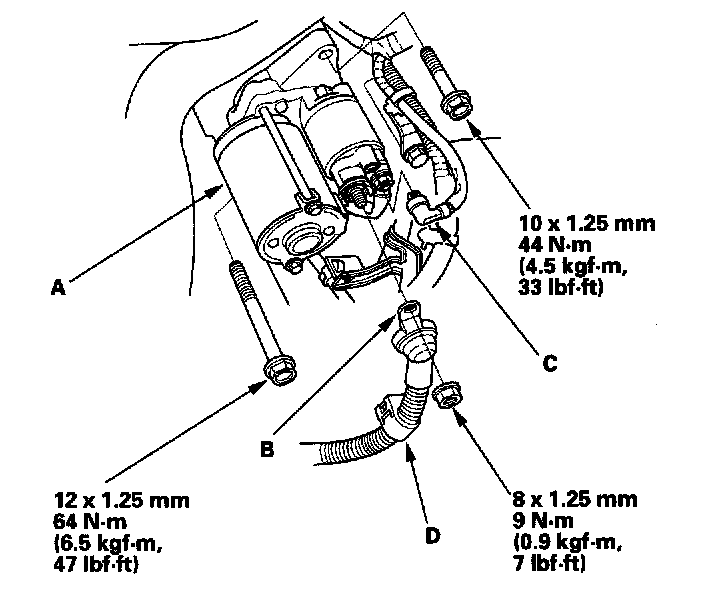

1. Install the starter (A). Make sure the crimped side of the ring terminal faces away from the starter when you connect it.
2. Connect the cable (B) to the B terminal, then connect the BLK/WHT (C) to the S terminal.
3. Install the harness clamp (D).
4. Install the battery.
5. Connect the positive cable to the battery first, then connect the negative cable.
6. Start the engine to make sure the starter works properly.
7. Enter the anti-theft codes for the audio unit (and navigation code if equipped), then enter the audio presets.
8. Set the clock.
