Connector Locations

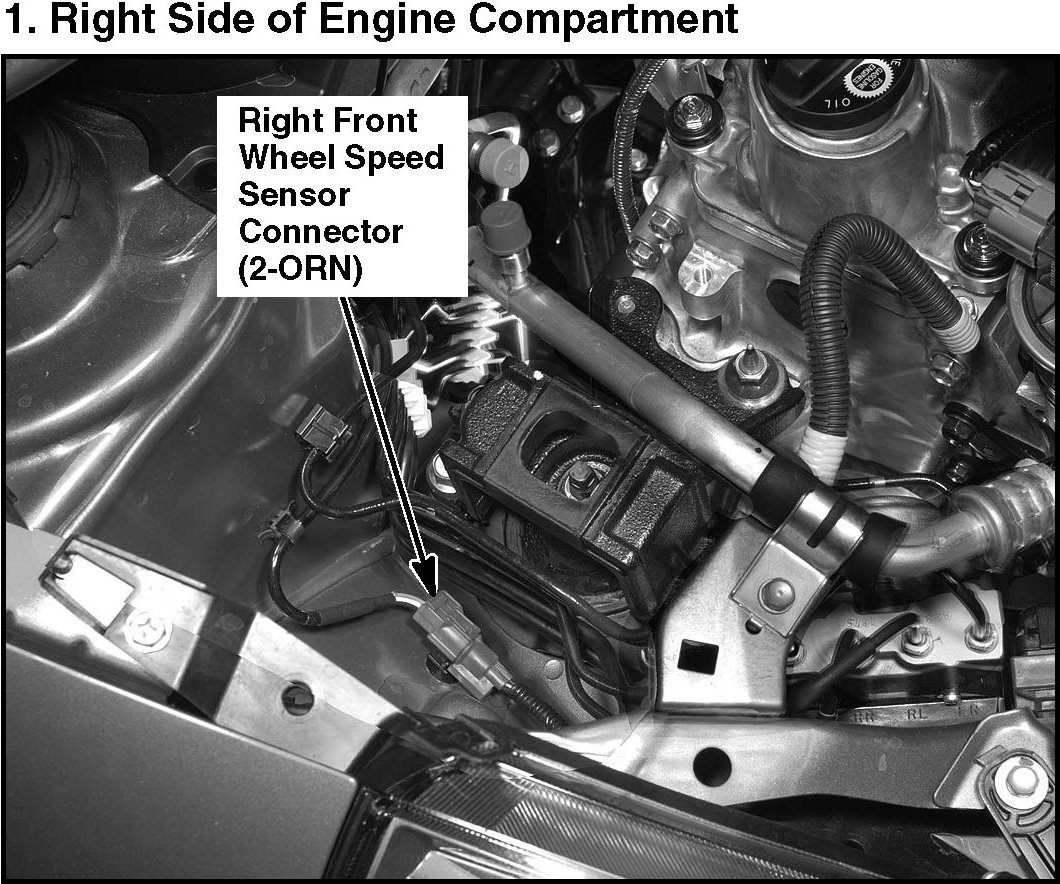

1. Right Side Of Engine Compartment:

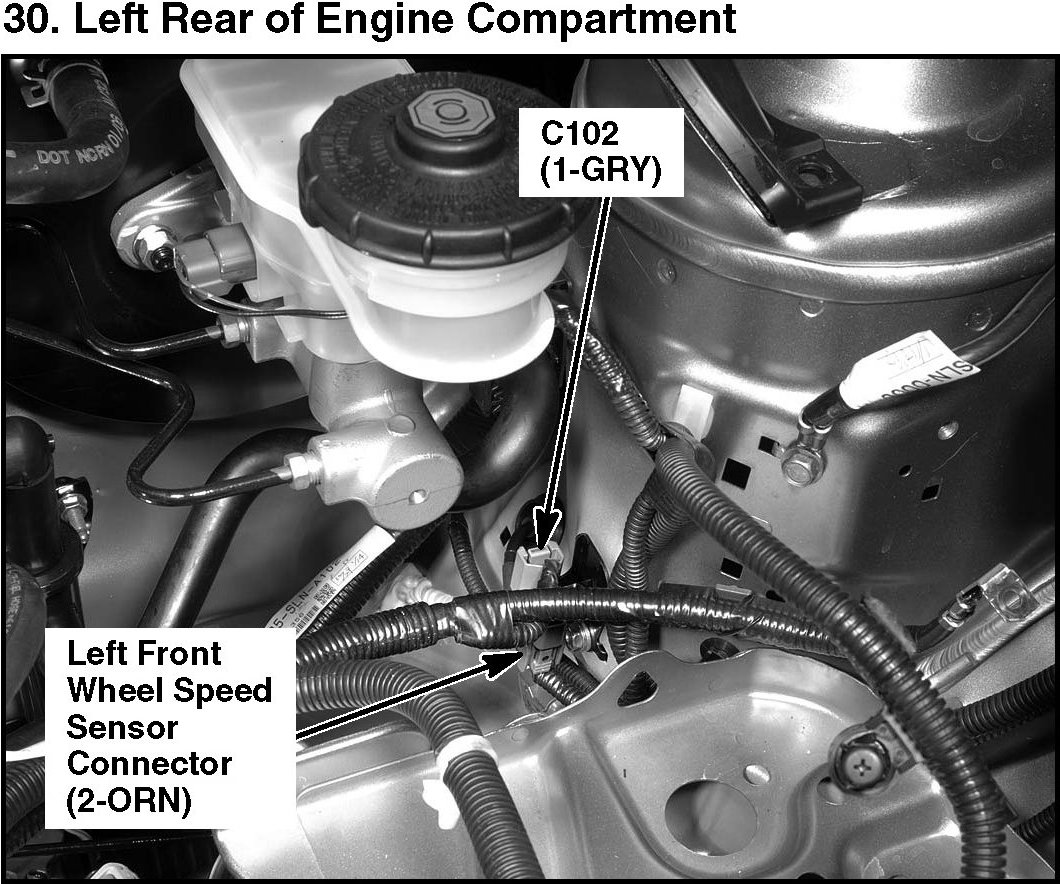

30. Left Rear Of Engine Compartment:

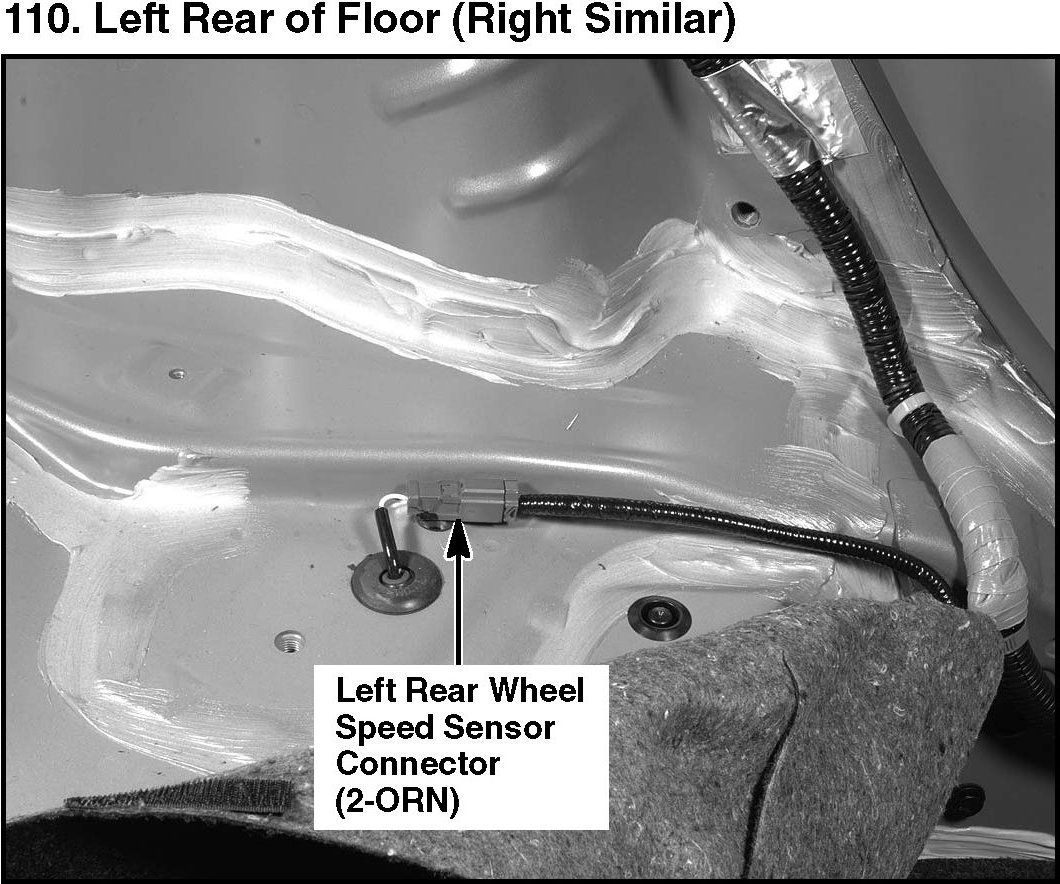

110. Left Rear Of Floor (Right Similar):
