Auxiliary Input / Output Jack, Entertainment System
Auxiliary Input / Output Jack, Entertainment System

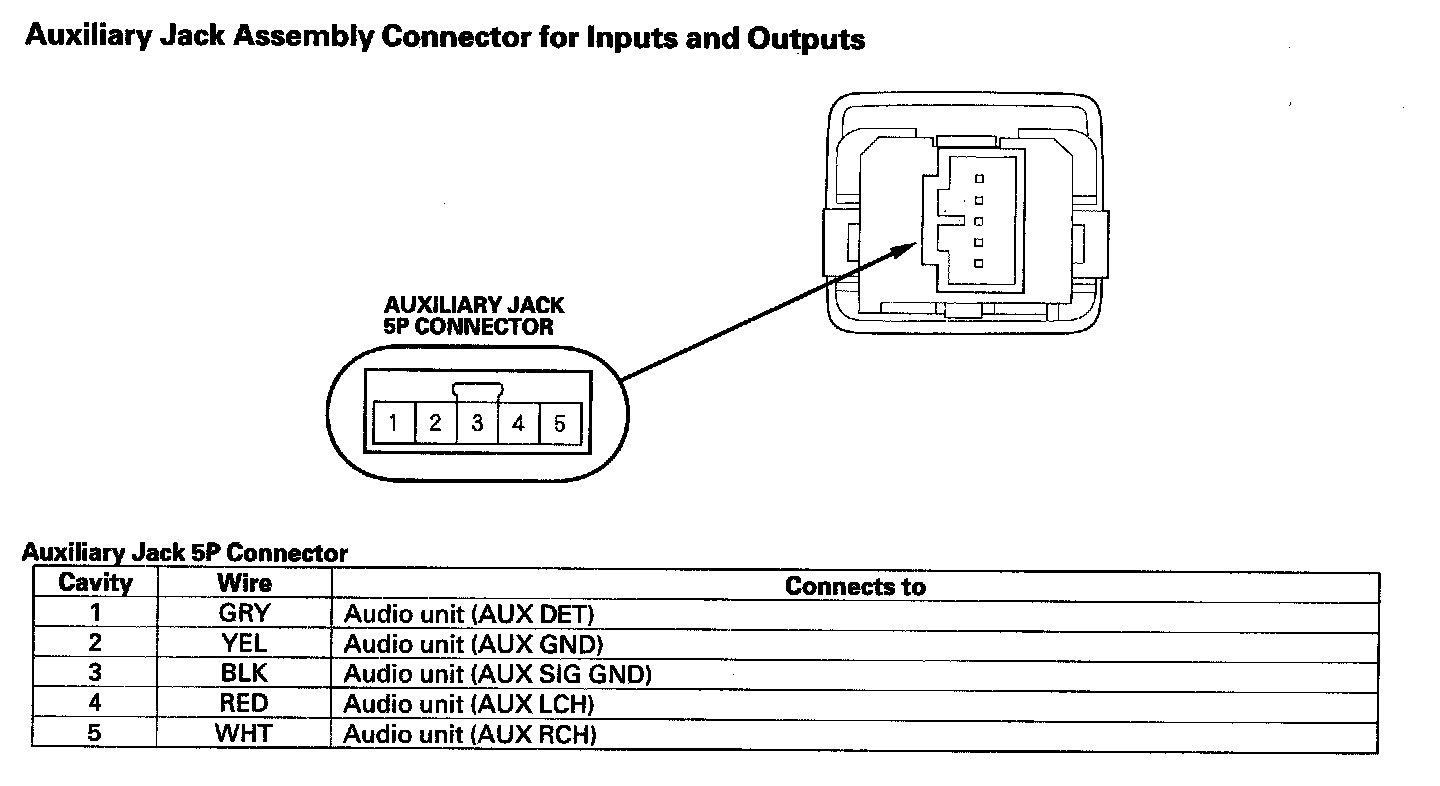

Auxiliary Jack Assembly Connector For Inputs And Outputs:
