Cabin Noise Sensor

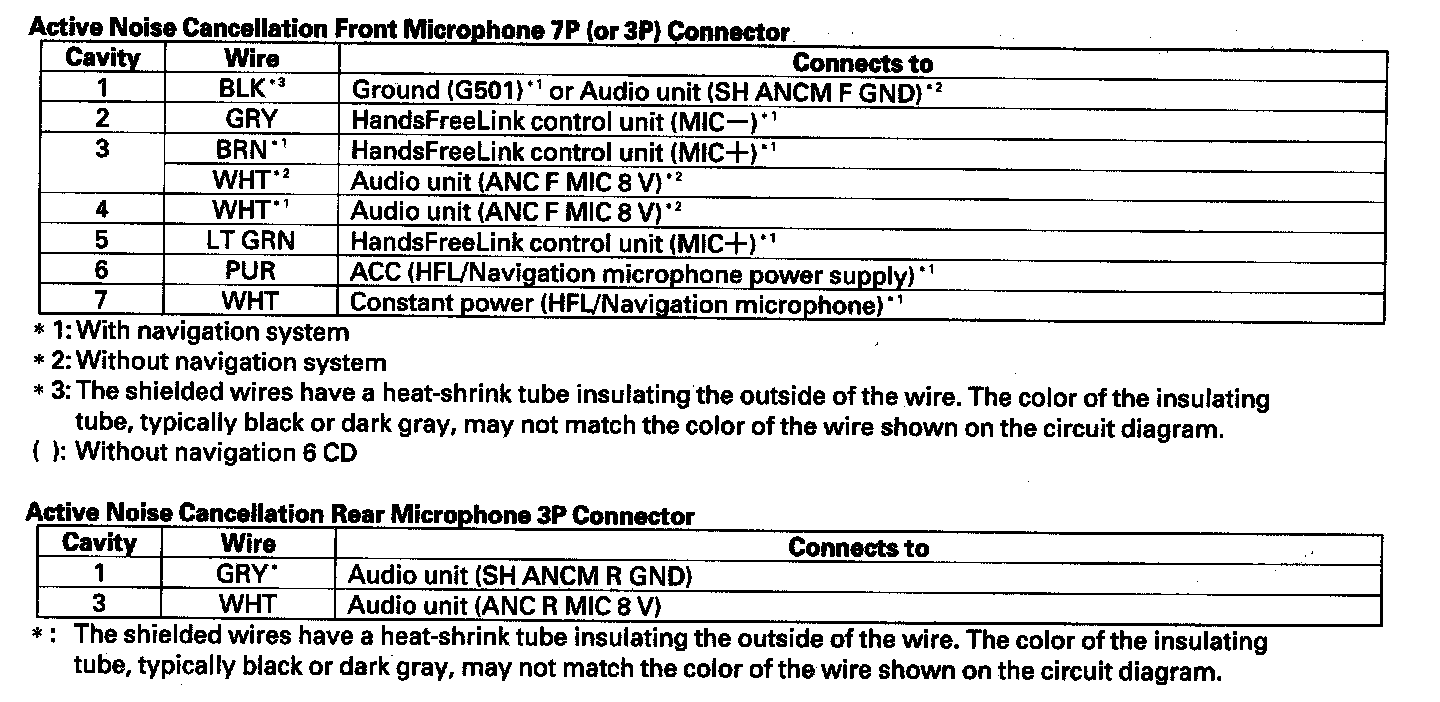

Active Noise Cancellation Microphone Connector For Inputs And Outputs (Part 1):

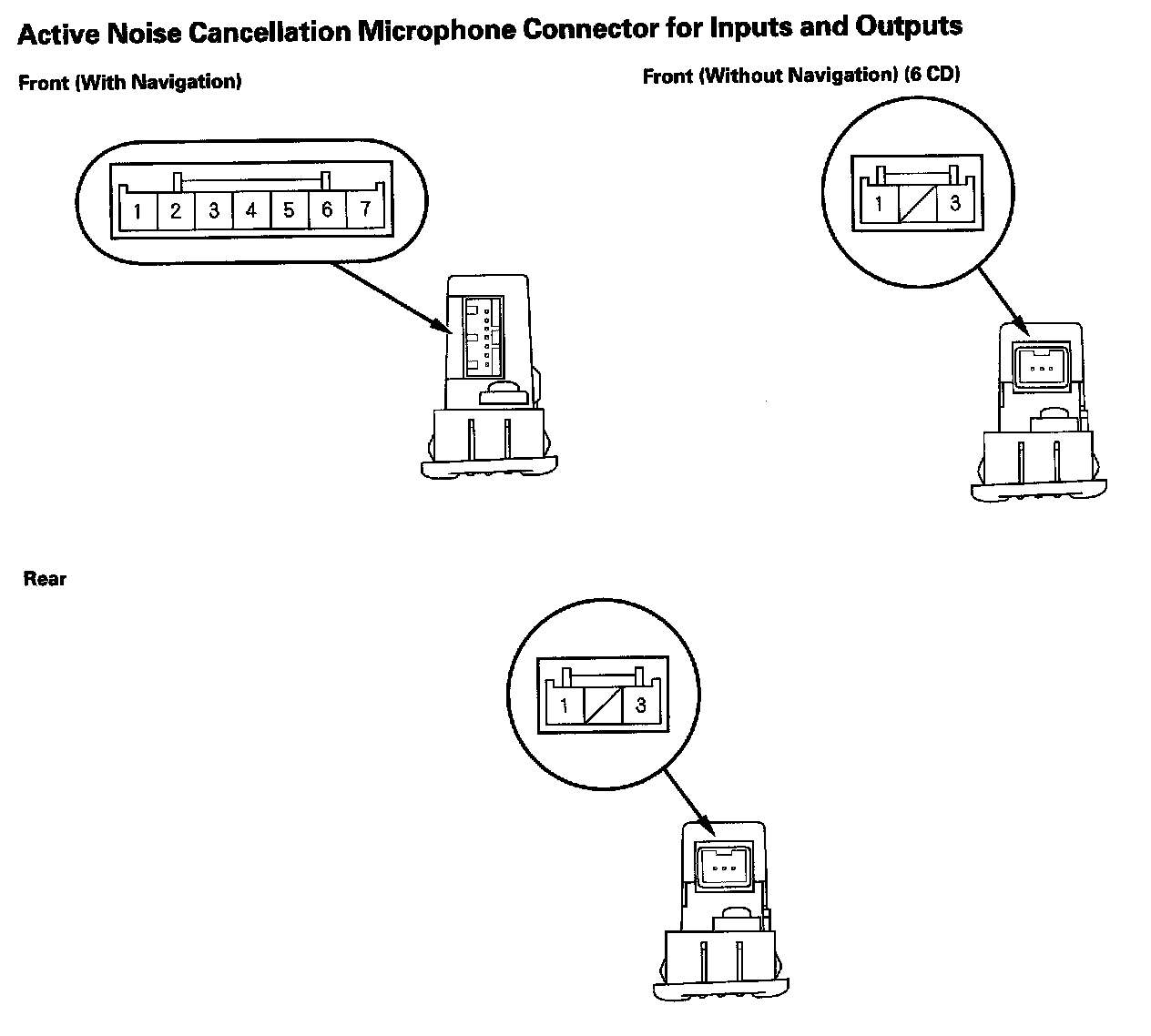

Active Noise Cancellation Microphone Connector For Inputs And Outputs (Part 2):
