Radio, Stereo, and Compact Disc
>>
Amplifier, Sound System
Amplifier, Sound System

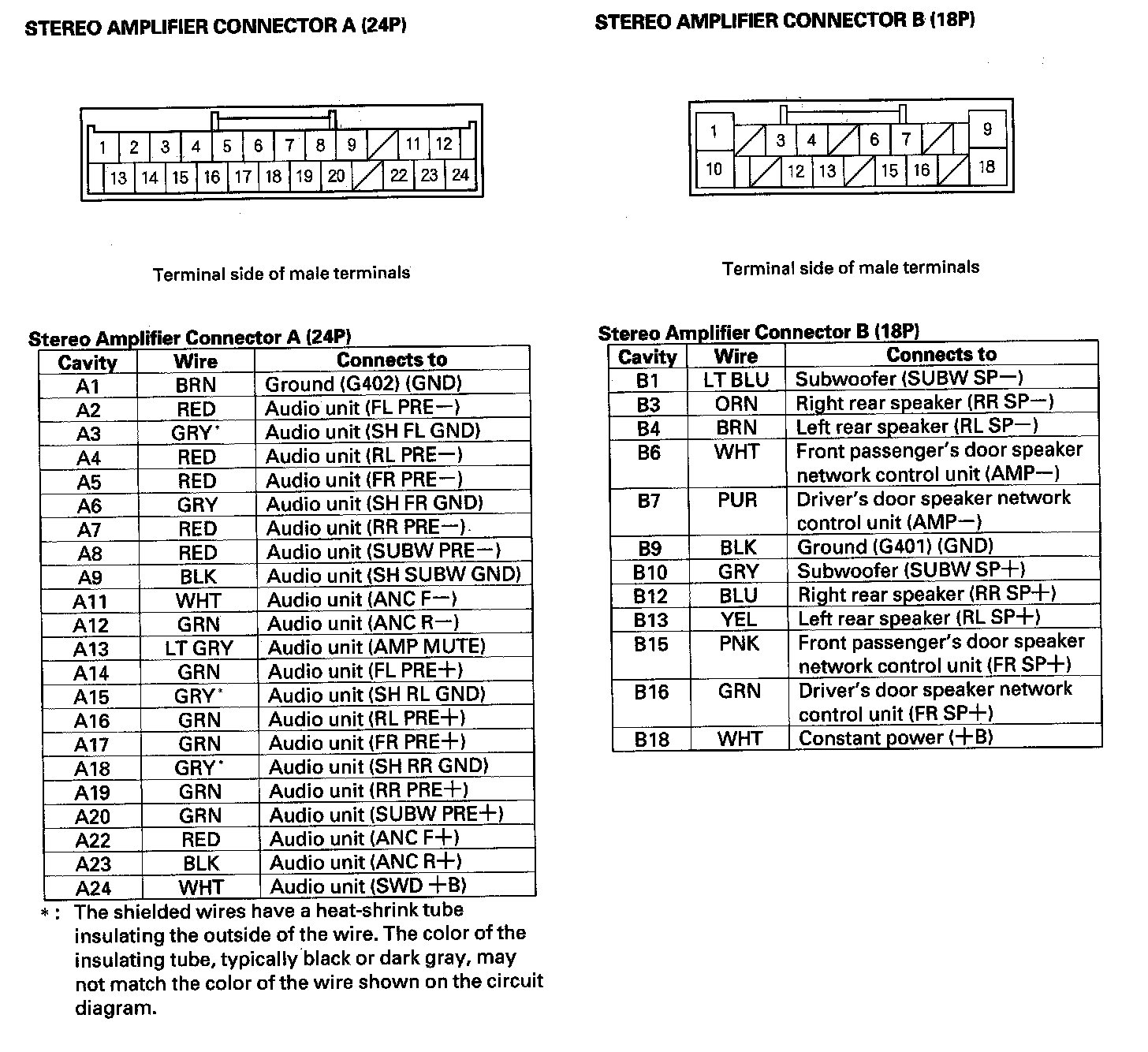

Stereo Amplifier Connector For Inputs And Outputs (Part 1):

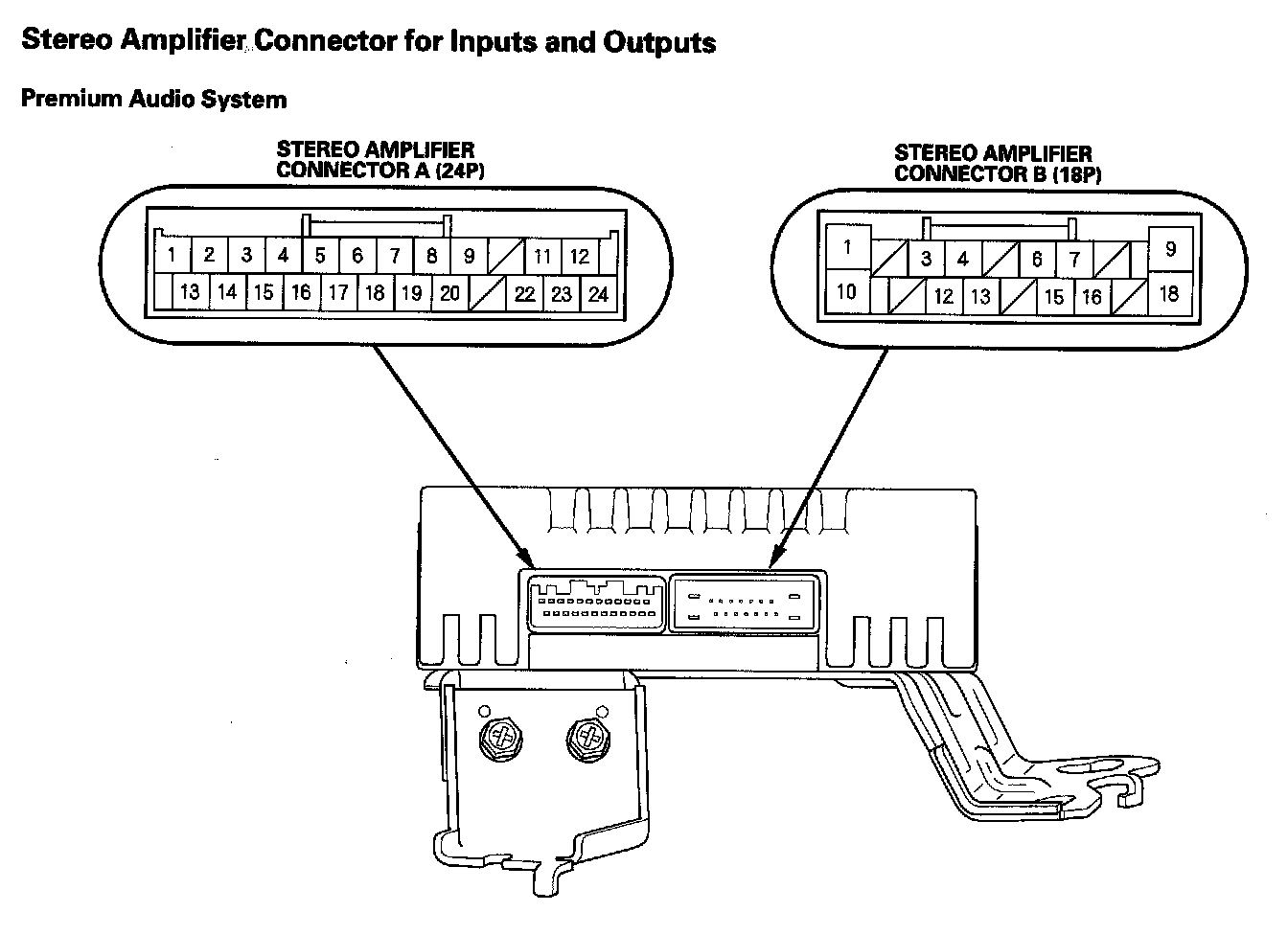

Stereo Amplifier Connector For Inputs And Outputs (Part 2):
