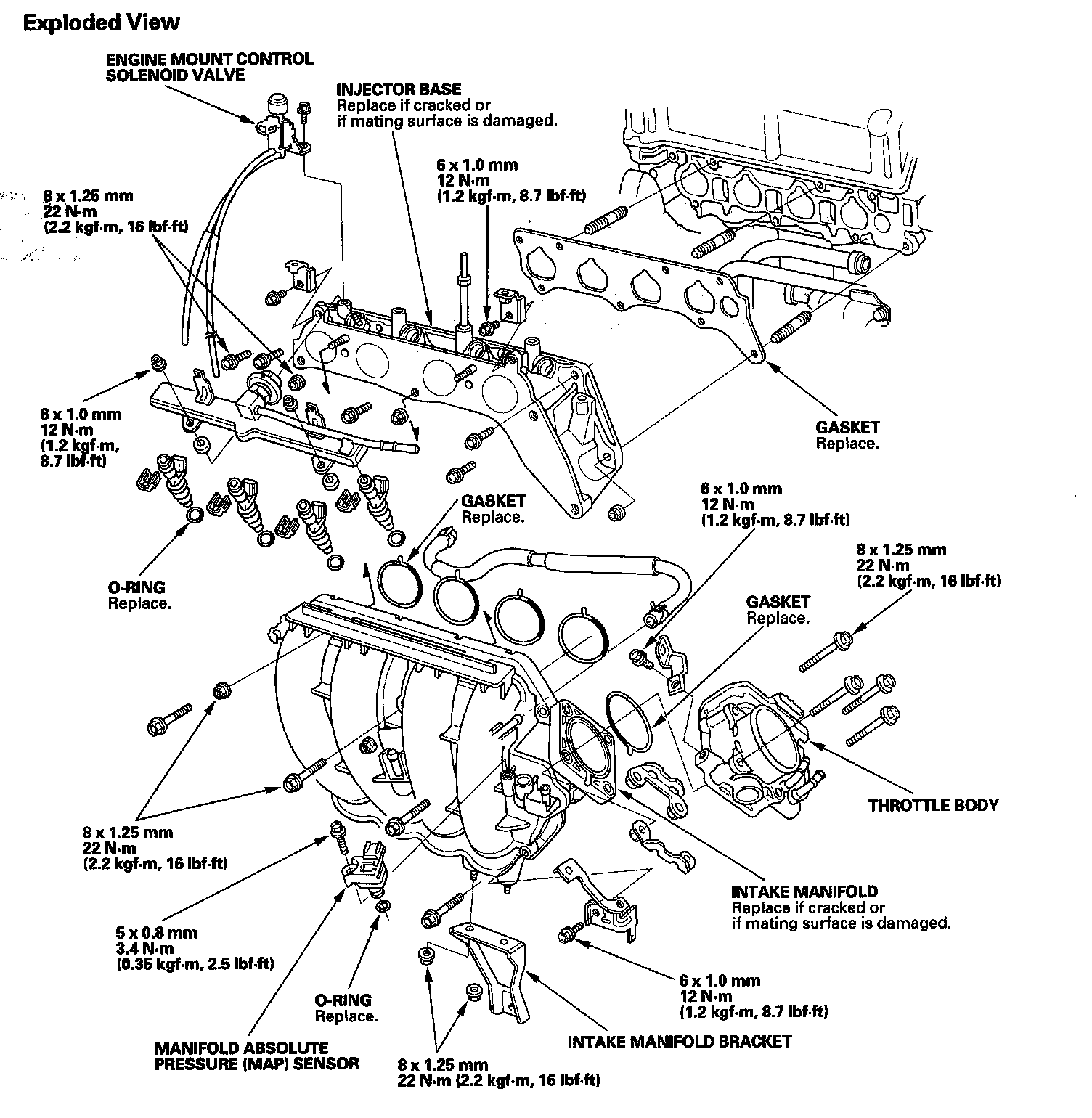

Intake Manifold

Intake Manifold

Tighten the bolts and nuts in a crisscross pattern in three steps, beginning with the inner bolt.





Throttle Body

Intake Manifold:
