Transmission Disassembly
Transmission Disassembly

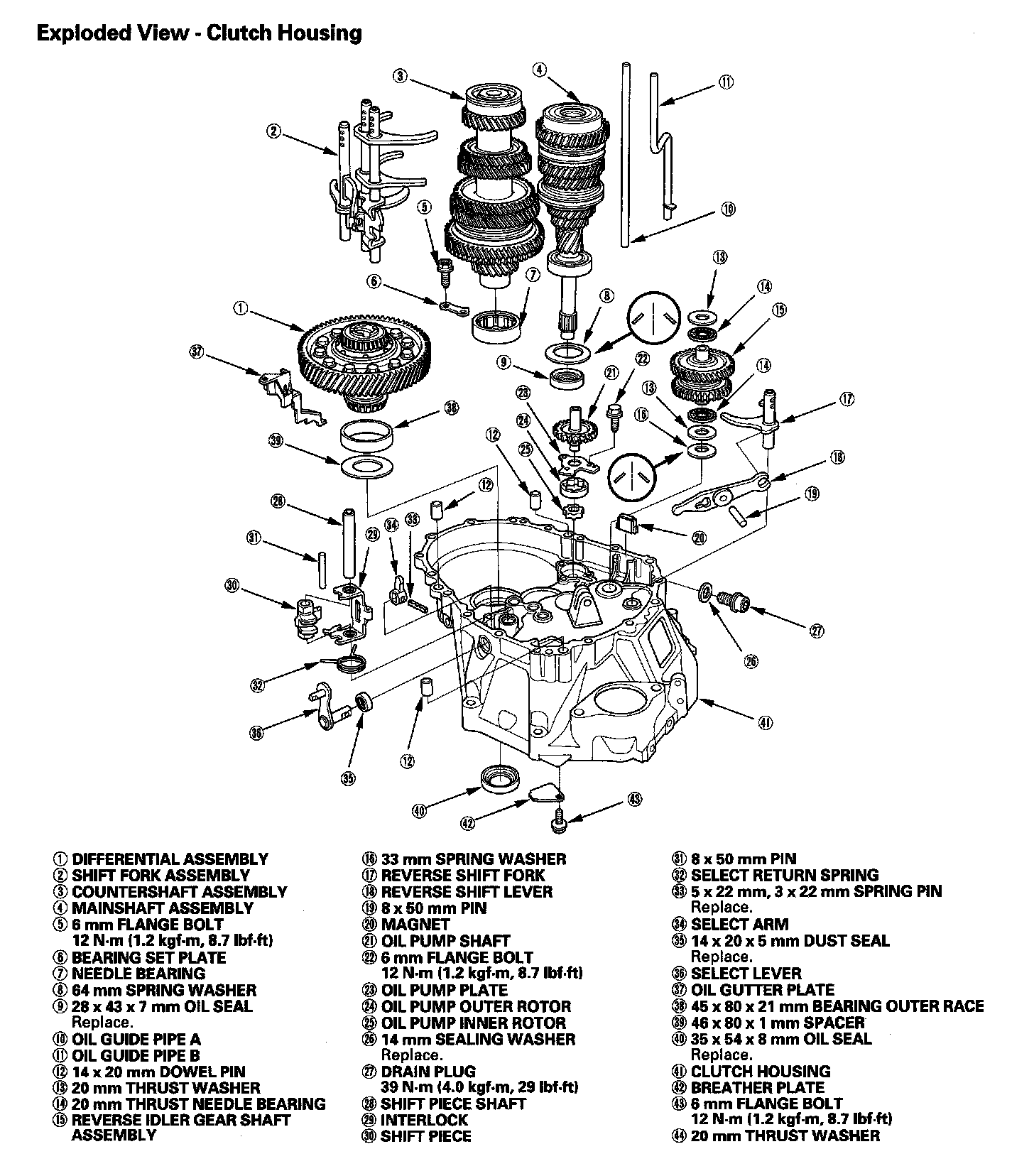

Manual Transmission Clutch Housing V6-3.5L:

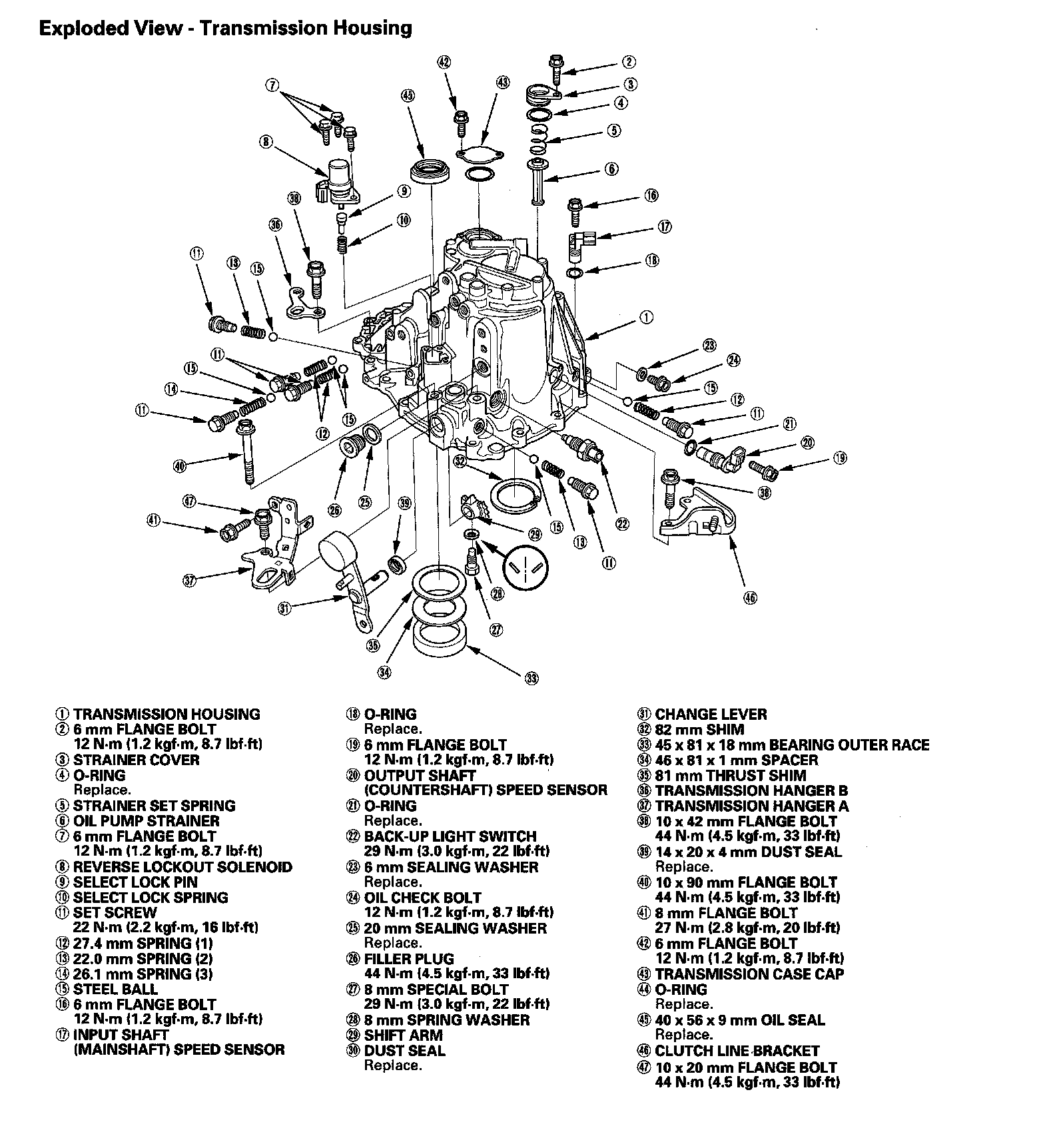

Manual Transmission Housing V6-3.5L:
