Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2008
>>
Accord V6-3.5L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Front ACM Subharness
Front ACM Subharness

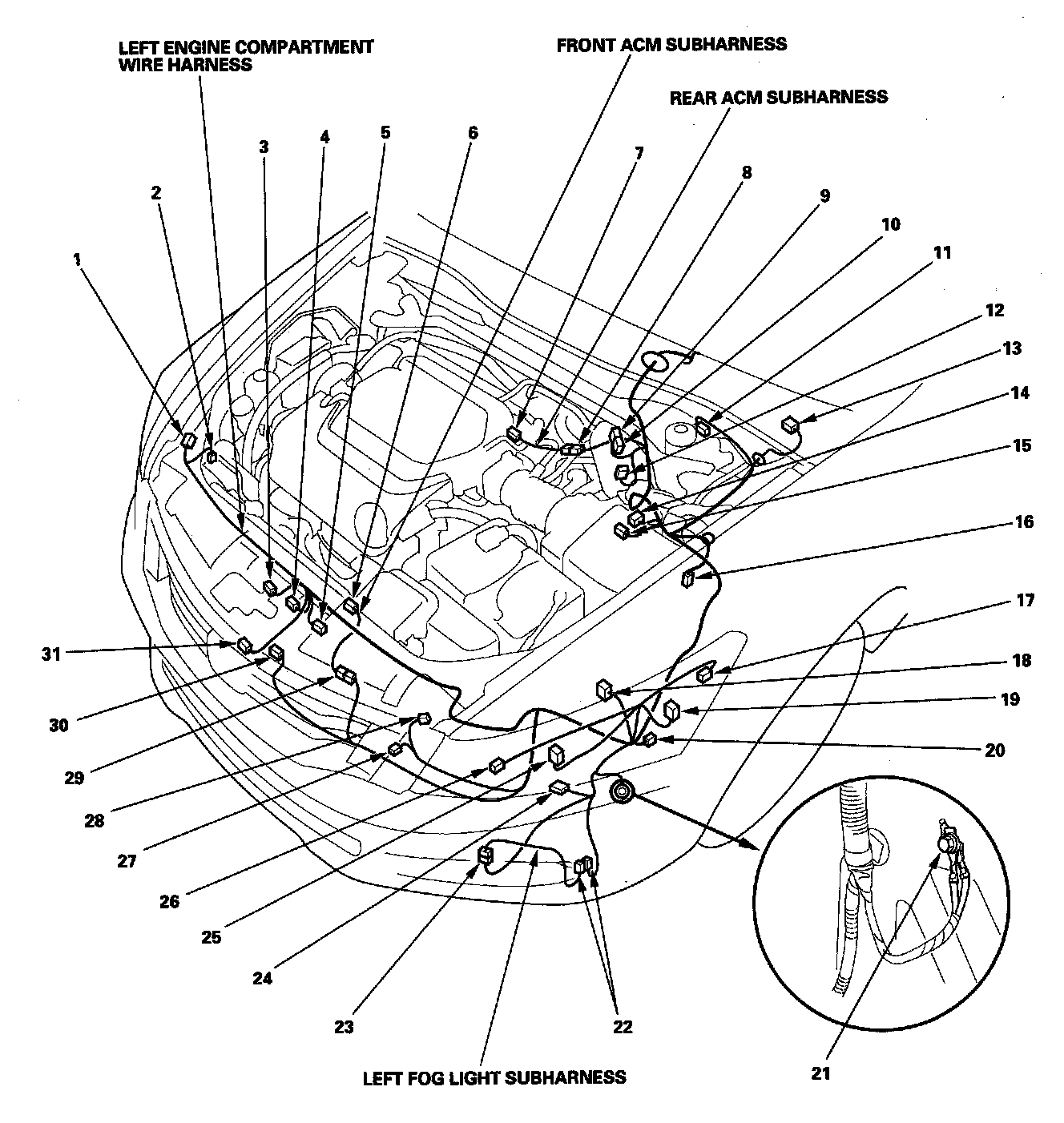

Harness Location View:

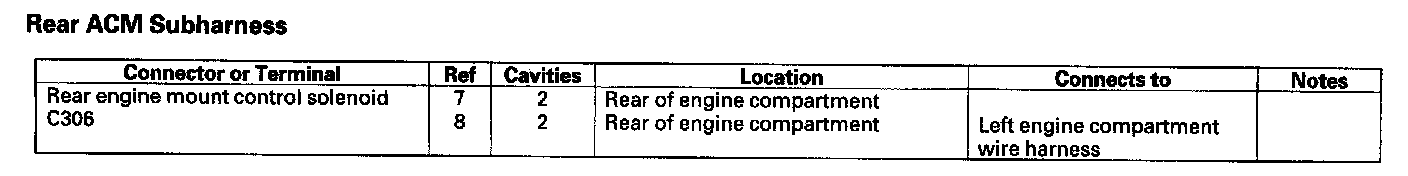

Rear ACM Subharness:
