Home >> Honda >> 2008 >> Accord V6-3.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Variable Valve Timing Actuator Position Sensor >> Locations

Variable Valve Timing Actuator Position Sensor: Locations

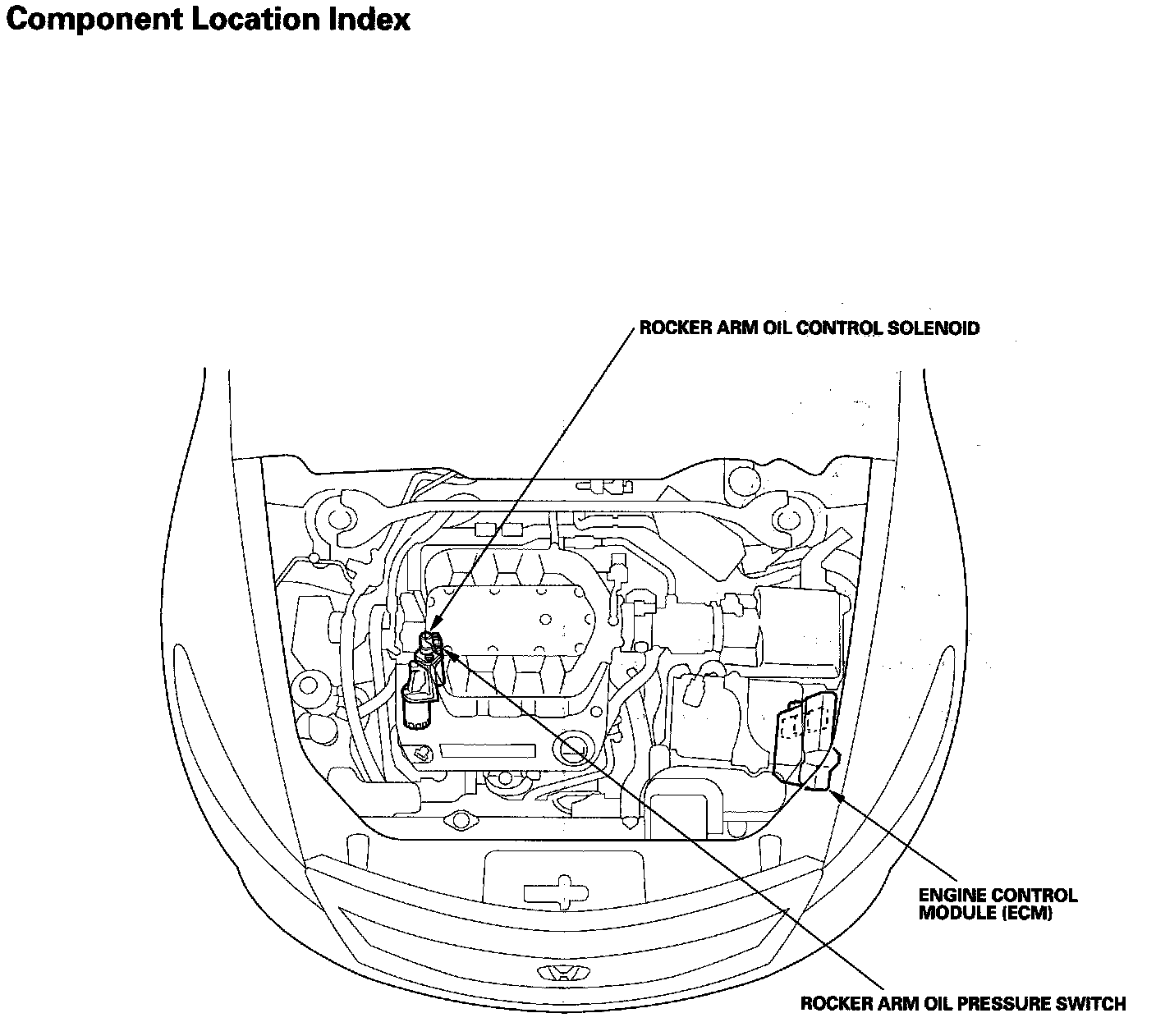

Variable Cylinder Management (VCM) System Component Location Index:

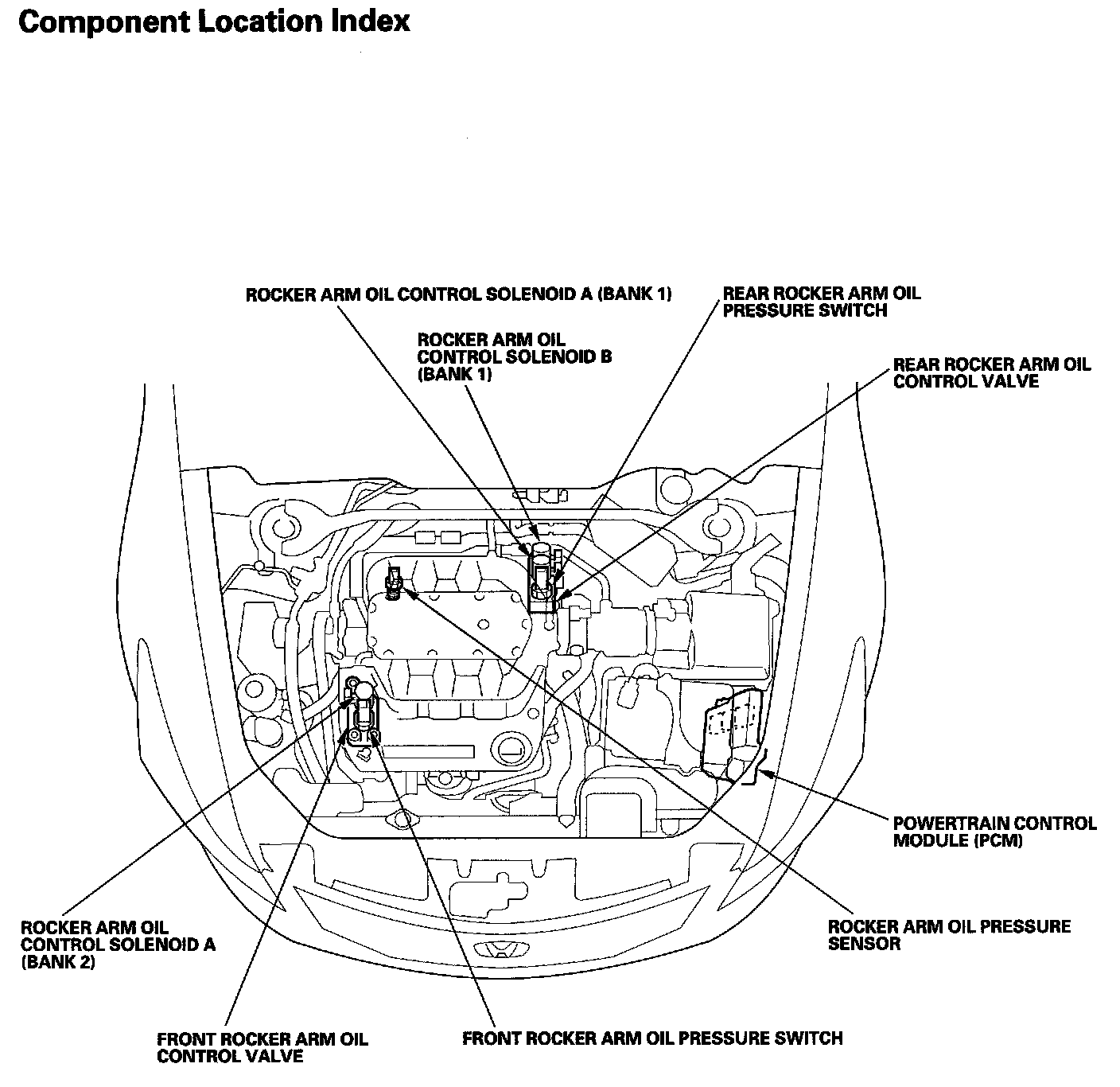

VTEC Component Location Index:
