ECM/PCM Circuit Diagrams

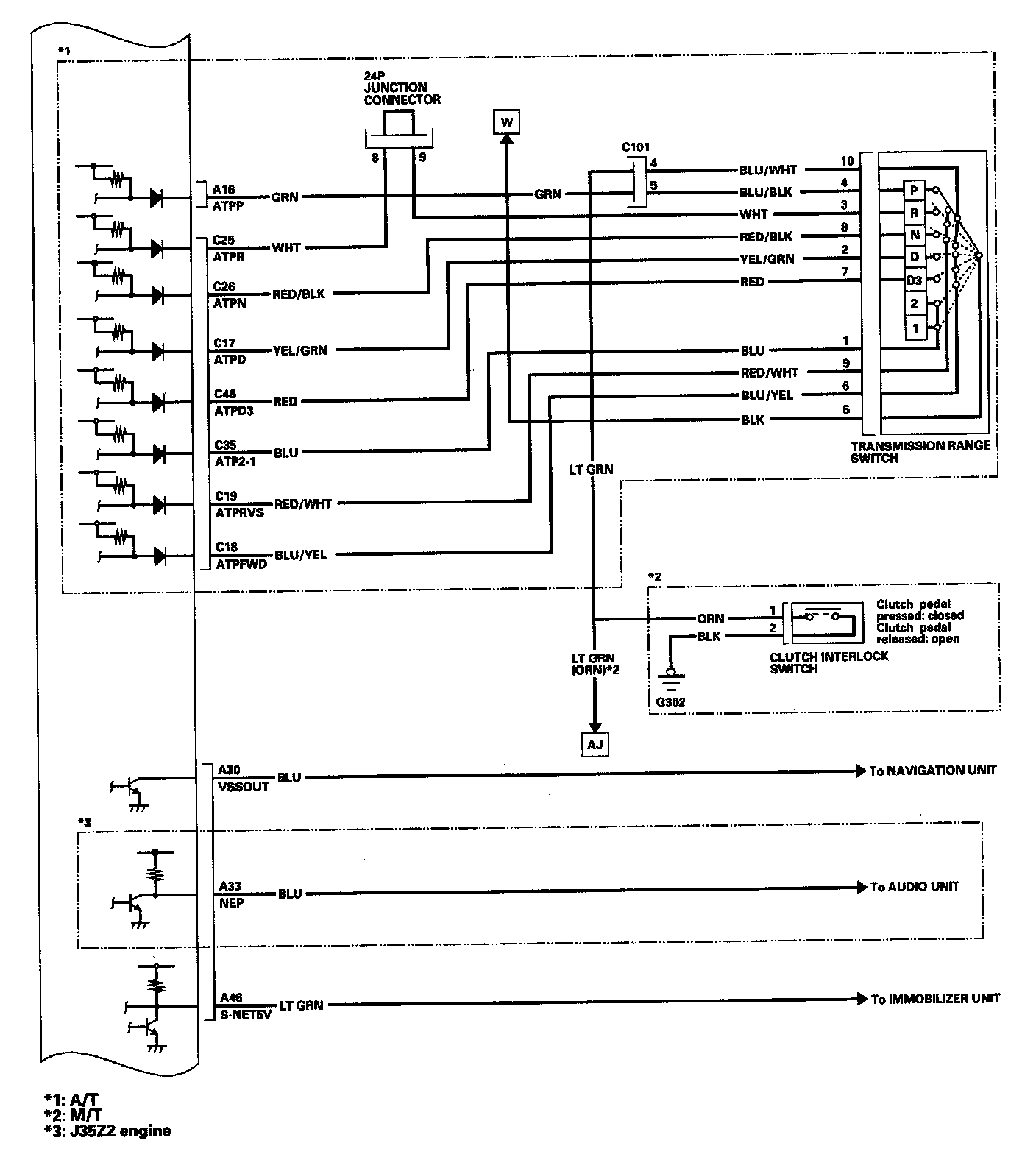

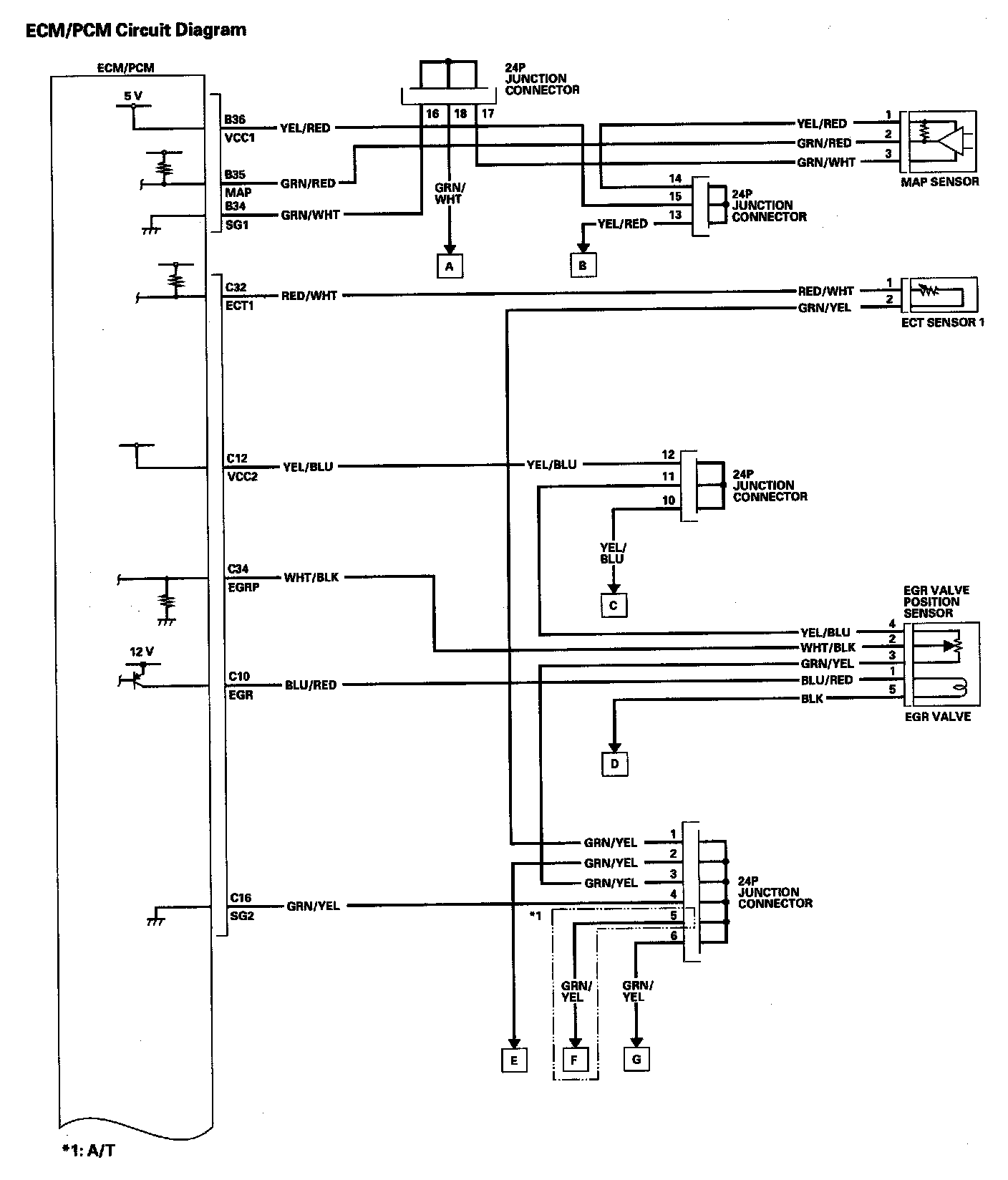

ECM/PCM Circuit Diagram (Part 1):

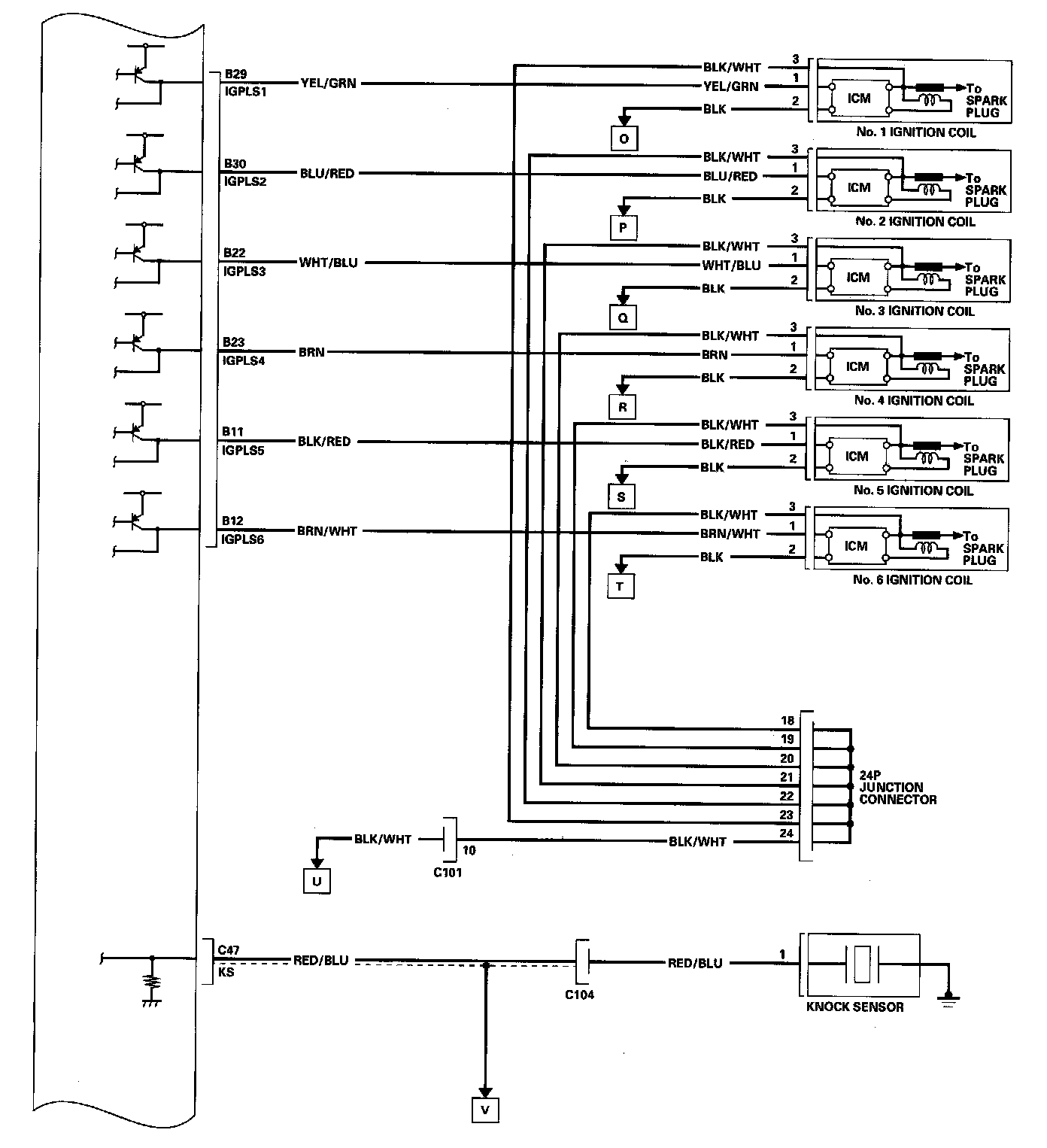

ECM/PCM Circuit Diagram (Part 2):

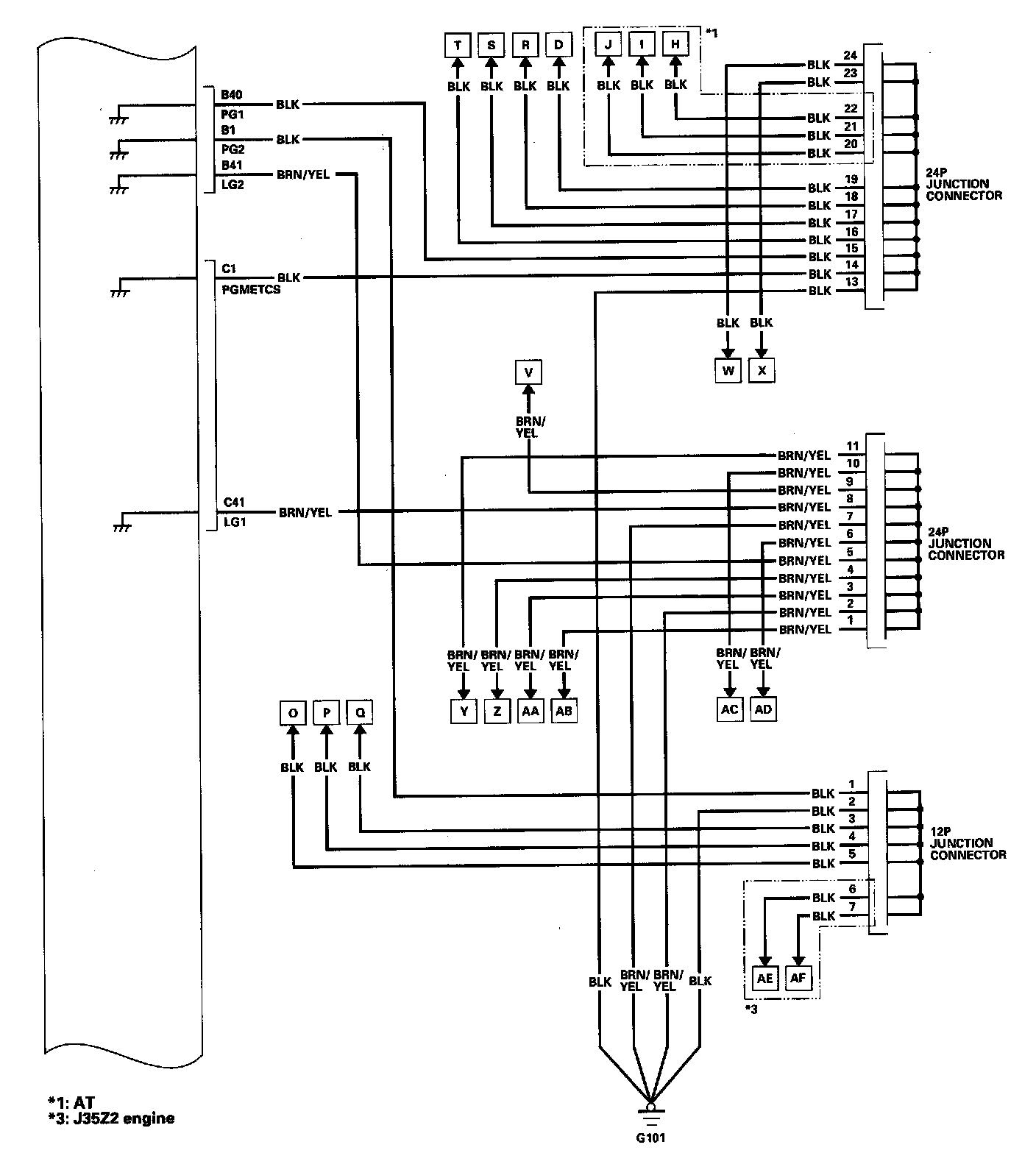

ECM/PCM Circuit Diagram (Part 3):

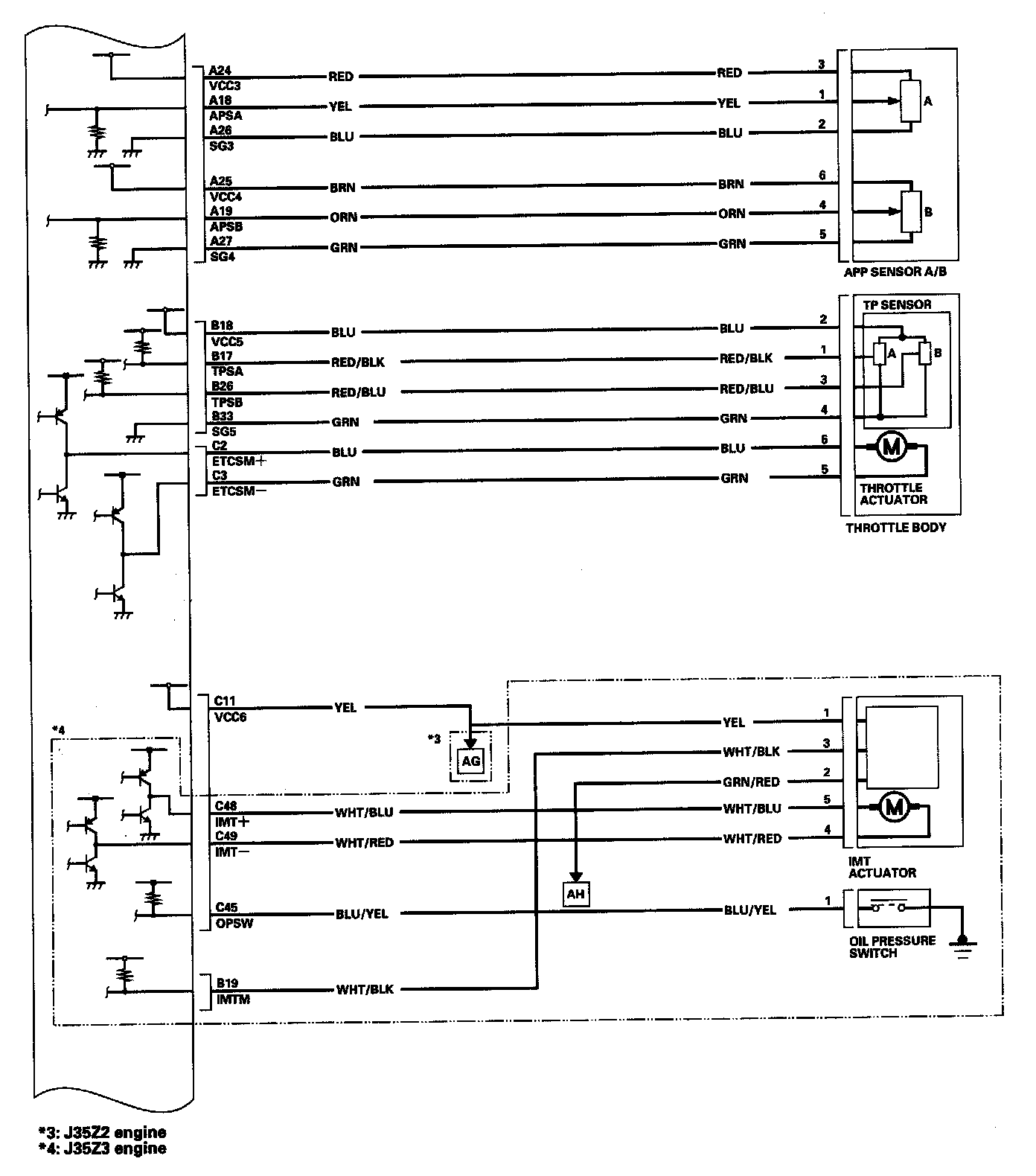

ECM/PCM Circuit Diagram (Part 4):

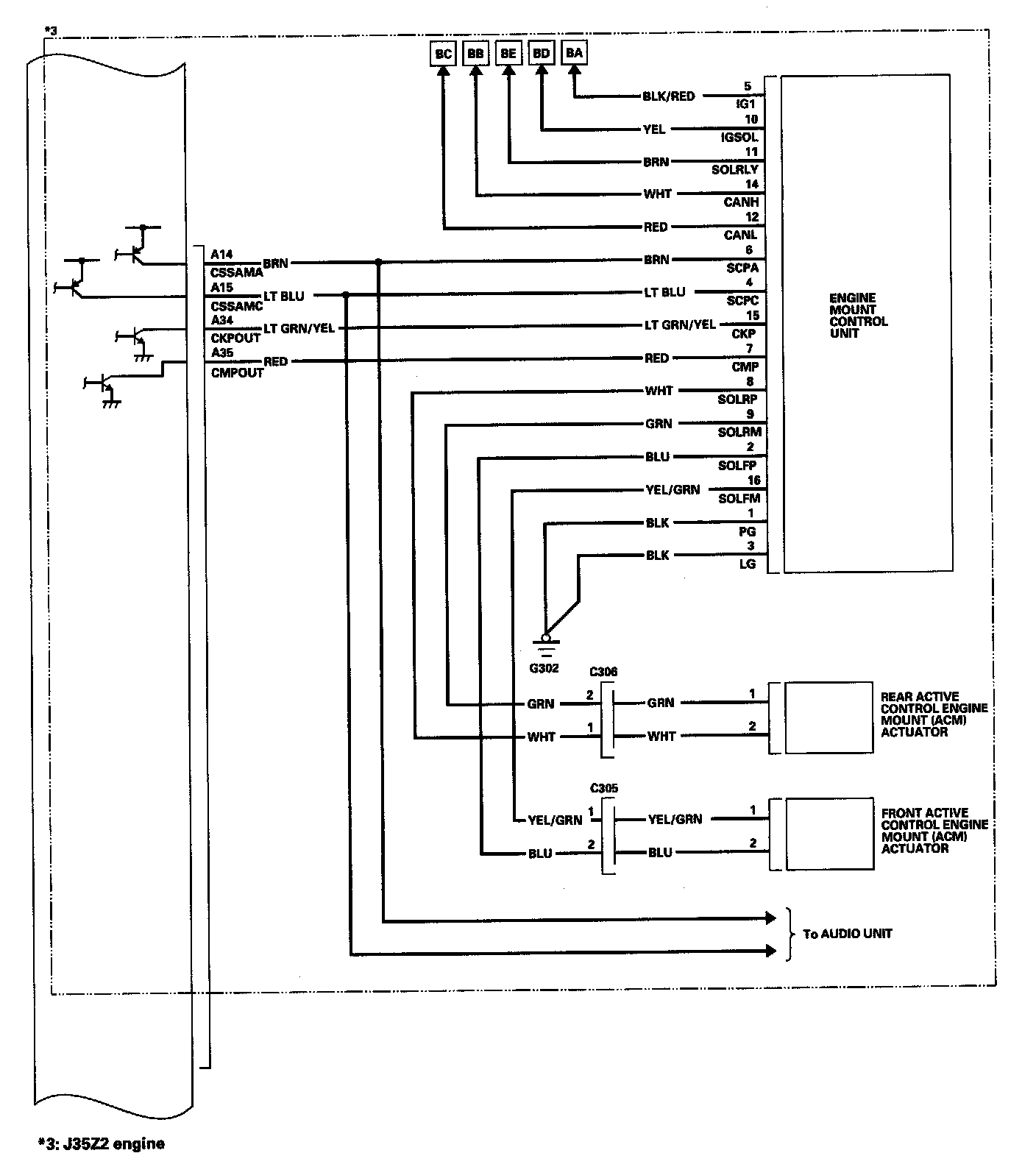

ECM/PCM Circuit Diagram (Part 5):

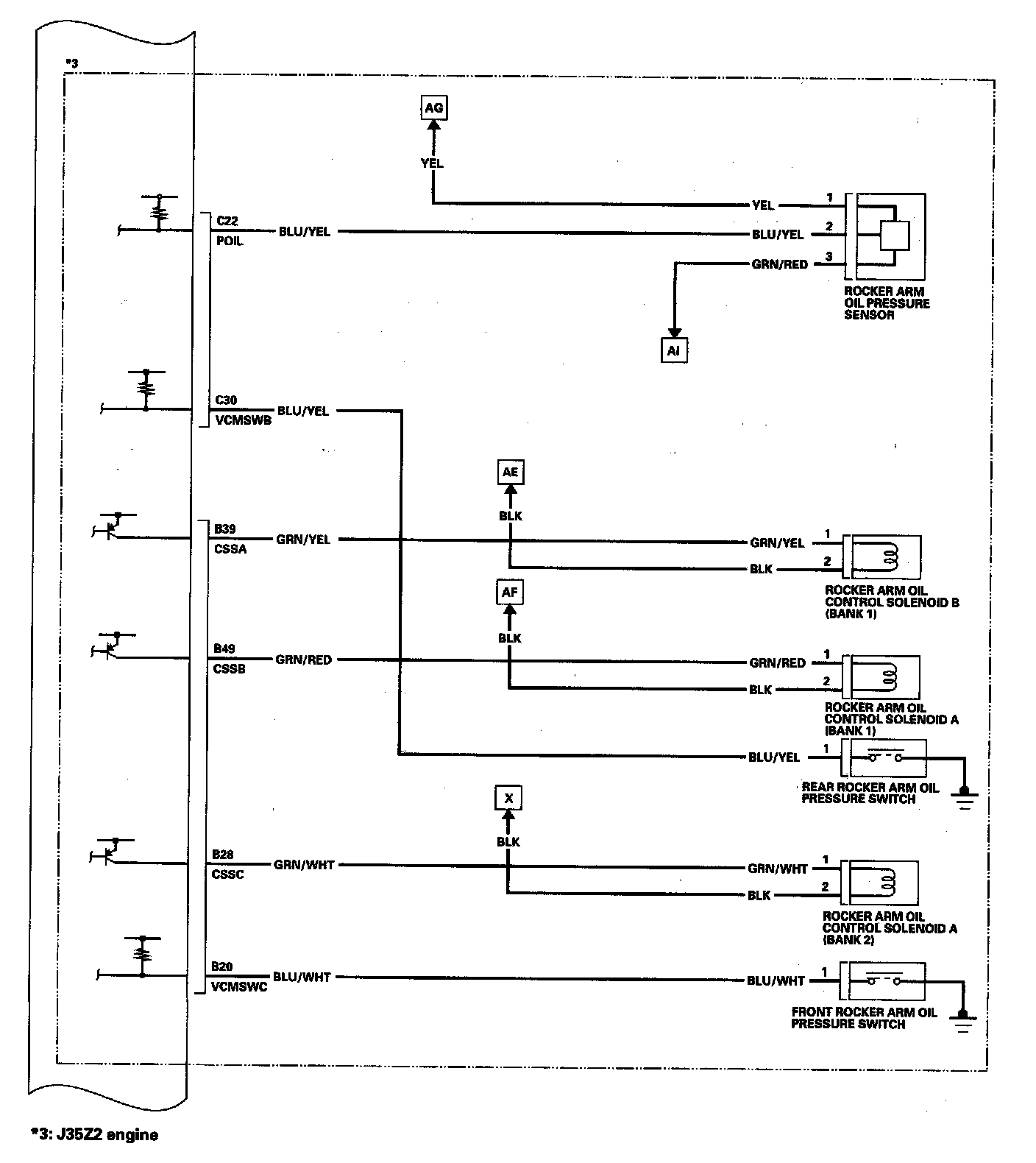

ECM/PCM Circuit Diagram (Part 6):

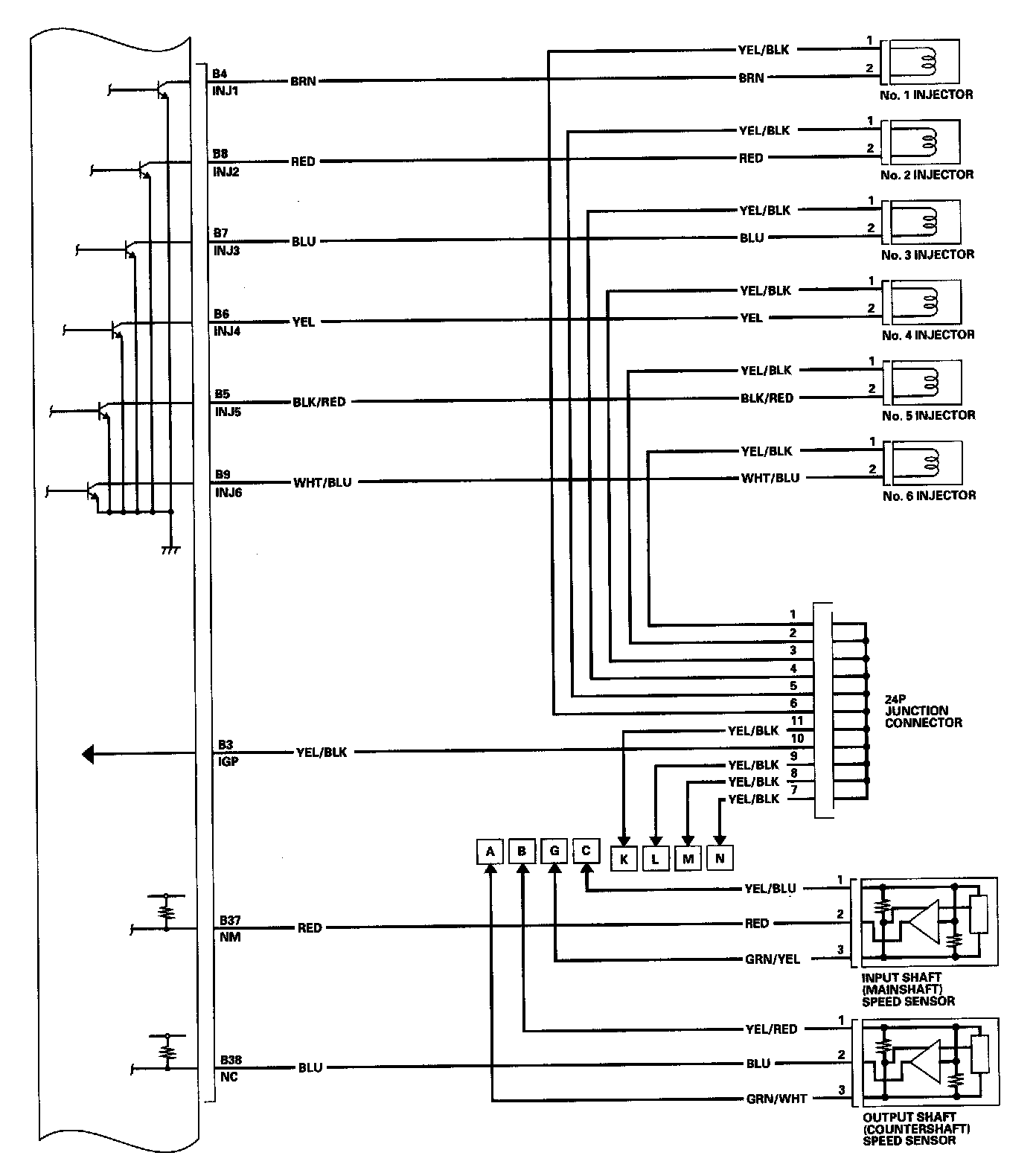

ECM/PCM Circuit Diagram (Part 7):

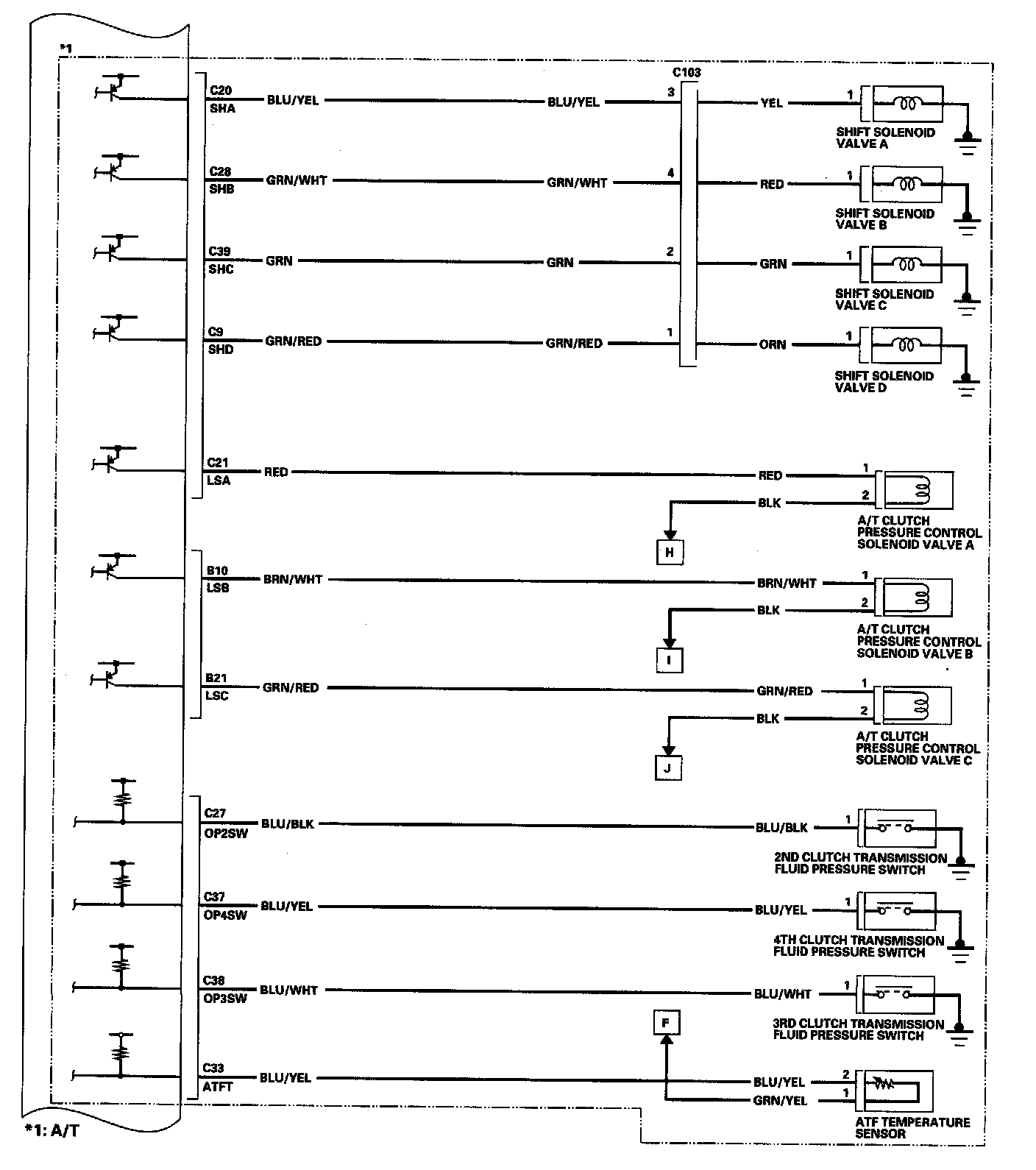

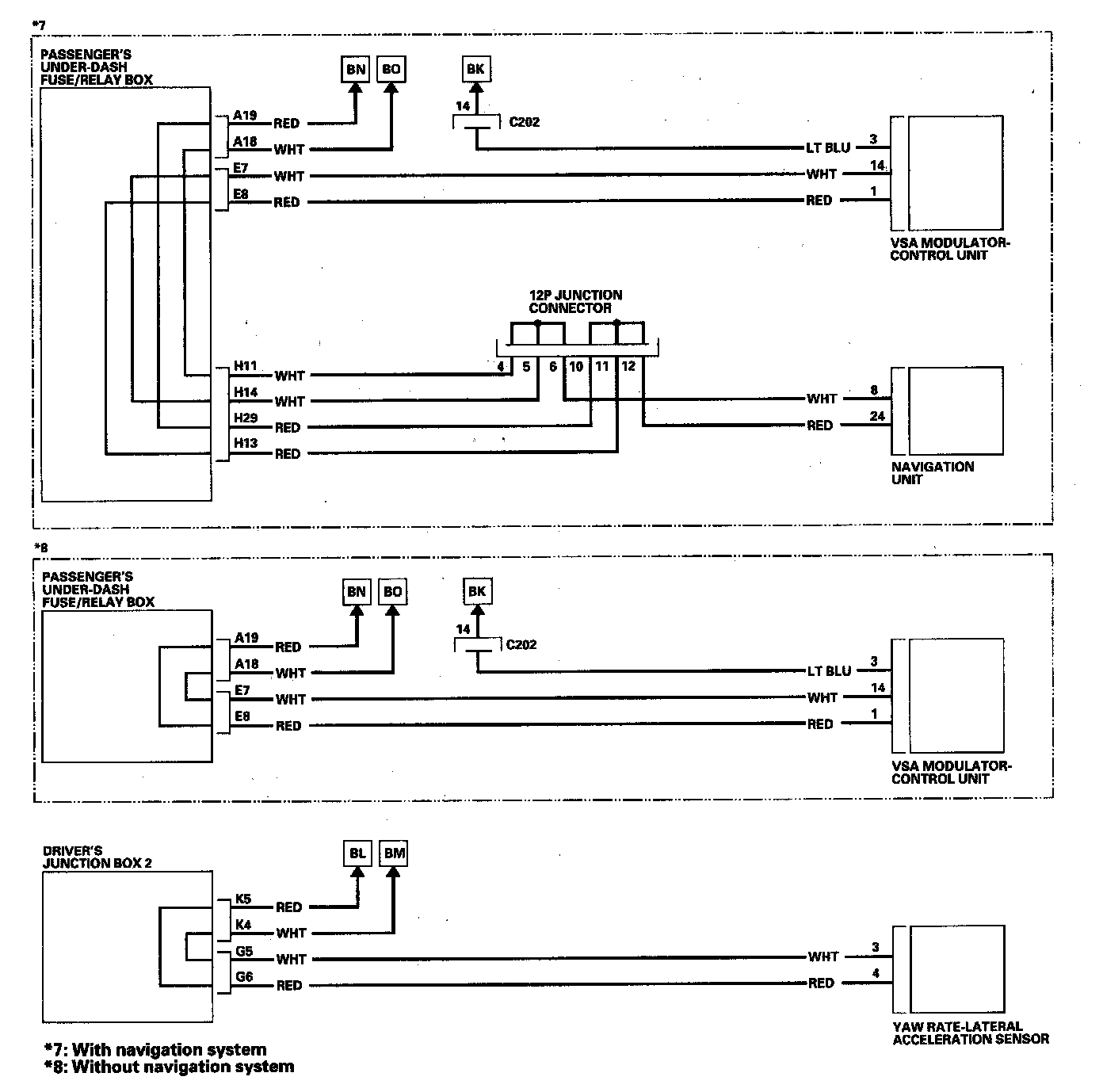

ECM/PCM Circuit Diagram (Part 8):

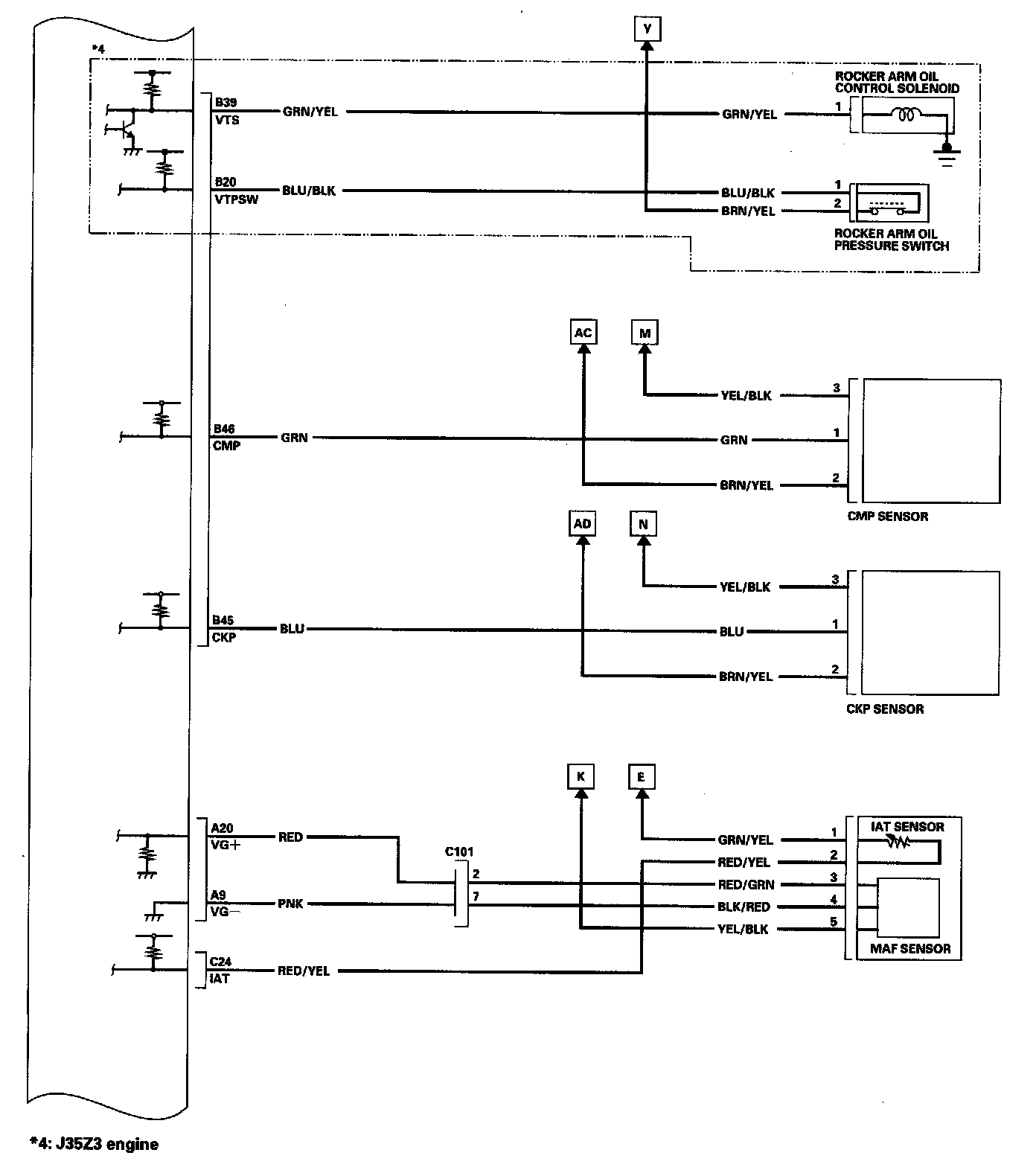

ECM/PCM Circuit Diagram (Part 9):

ECM/PCM Circuit Diagram (Part 10):

ECM/PCM Circuit Diagram (Part 11):

ECM/PCM Circuit Diagram (Part 12):

ECM/PCM Circuit Diagram (Part 13):

ECM/PCM Circuit Diagram (Part 14):

ECM/PCM Circuit Diagram (Part 15):

ECM/PCM Circuit Diagram (Part 16):

ECM/PCM Circuit Diagram (Part 17):
