Design Specifications

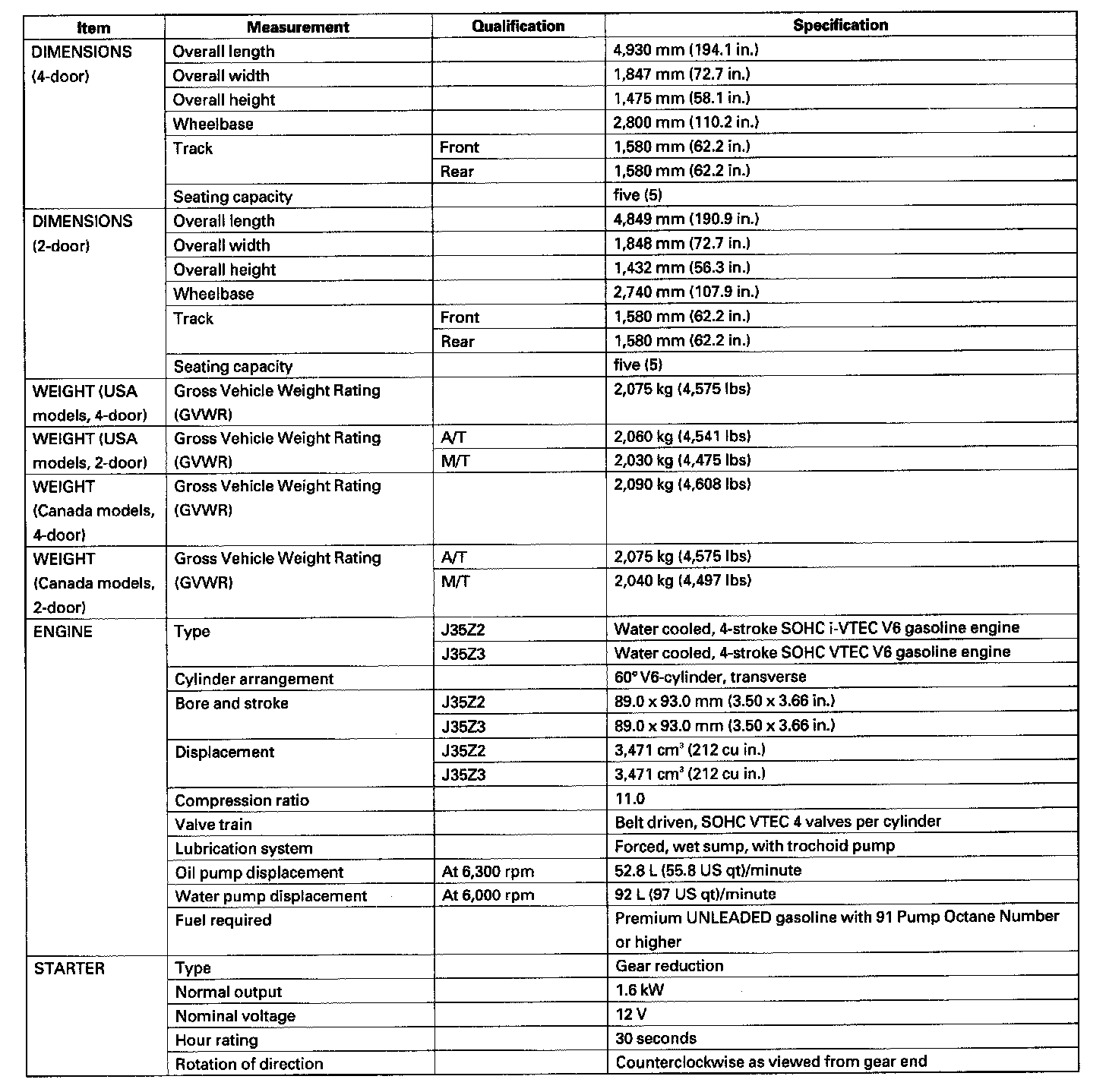

Design Specifications V6-3.5 (Part 1):

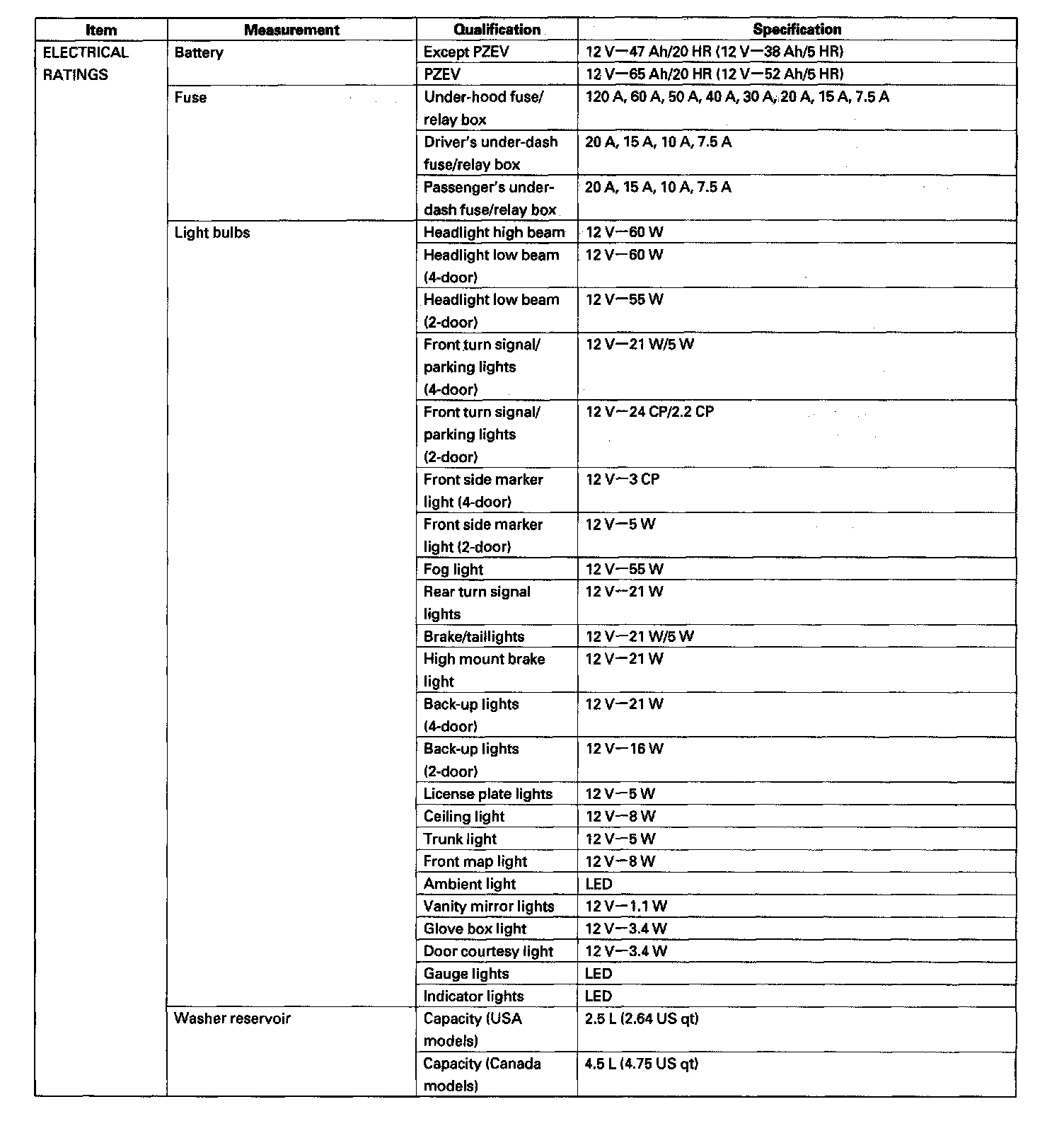

Design Specifications V6-3.5 (Part 2):

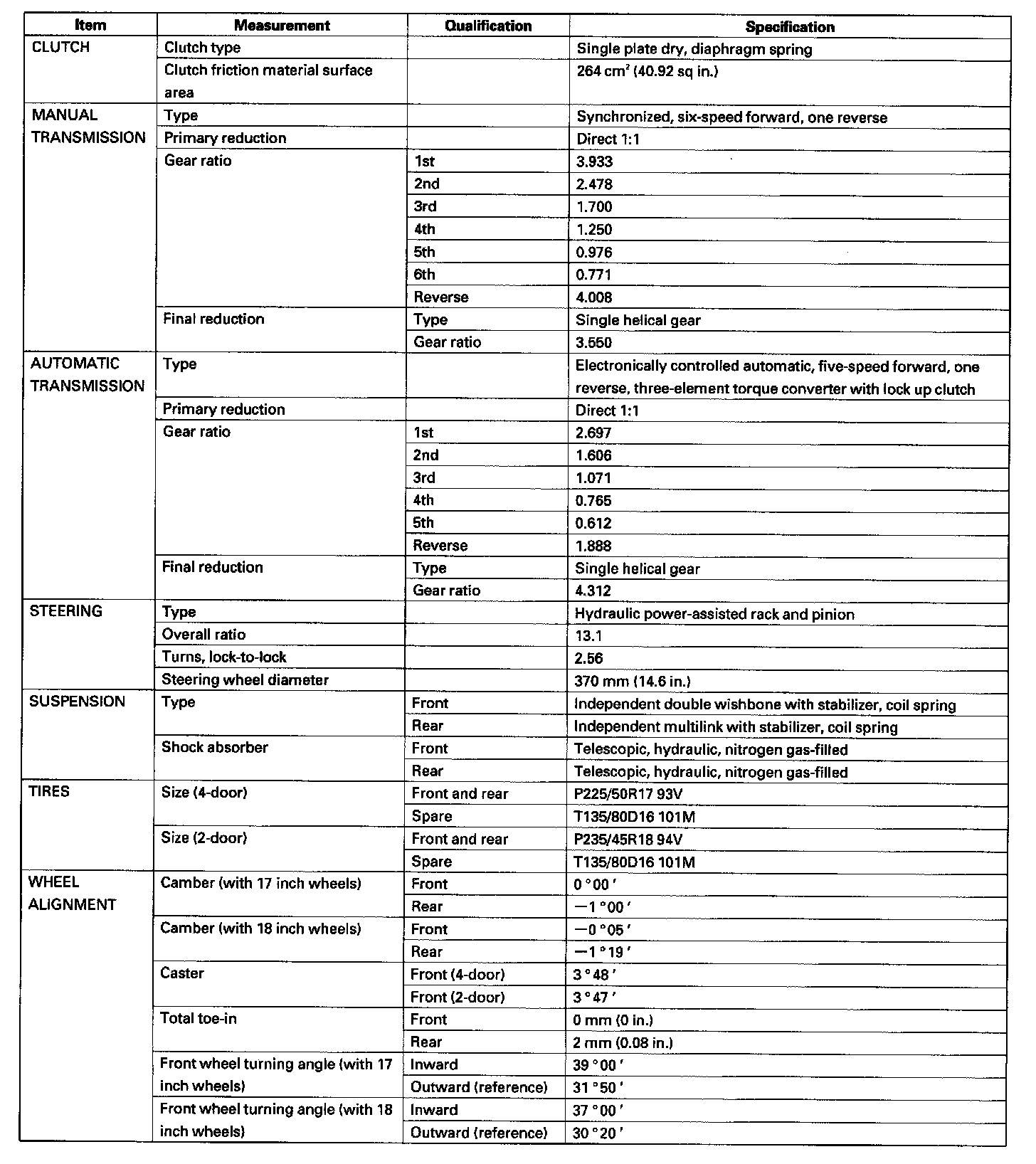

Design Specifications V6-3.5 (Part 3):

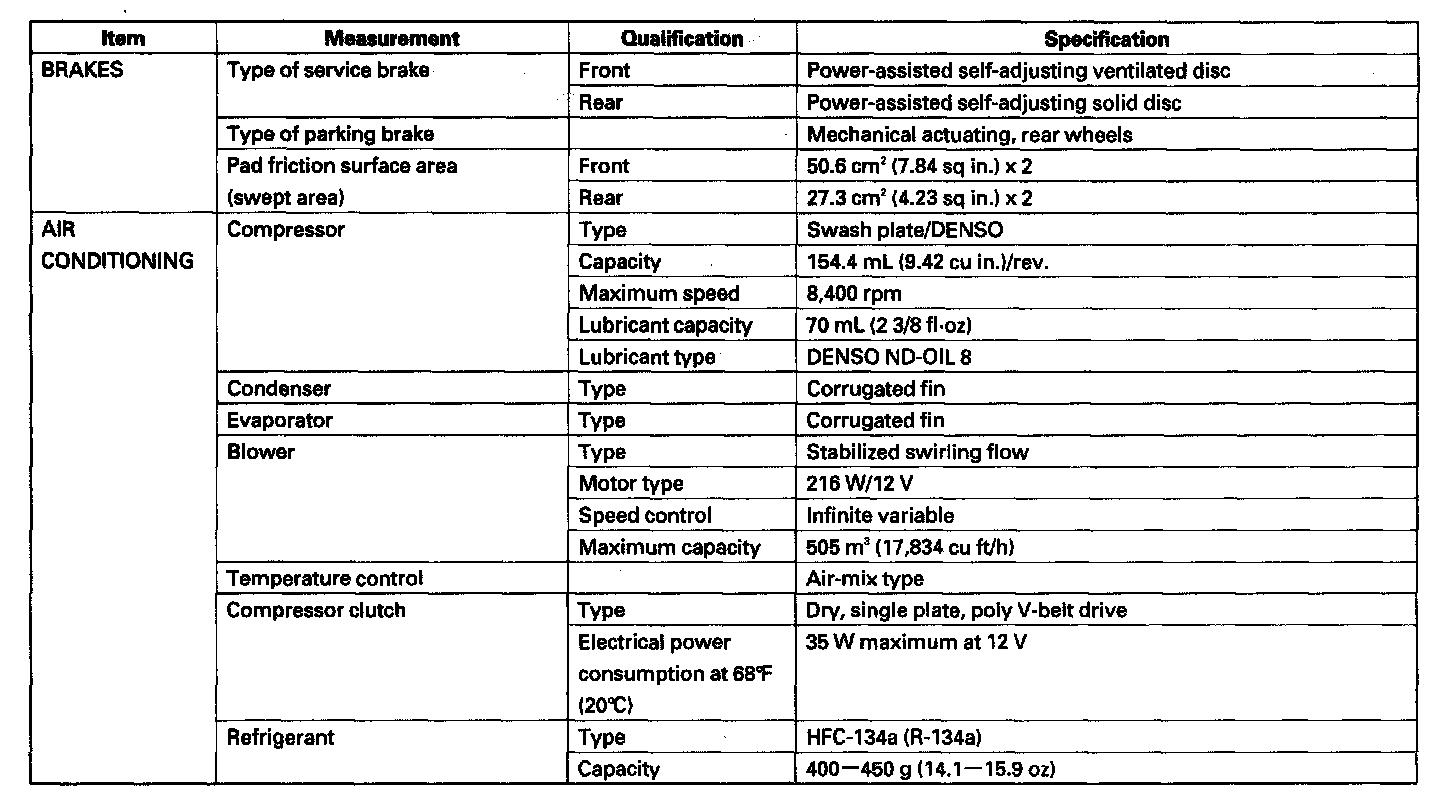

Design Specifications V6-3.5 (Part 4):
