General Specifications

Cylinder Head

Torque 30 N-m (3.0 kgf-m, 22 lbf-ft)





After torquing, tighten all cylinder head bolts in two steps (90° per step). If you are using a new cylinder head bolt, tighten the bolt an extra 90°.





Measure the diameter of each cylinder head bolt at point A and point B.





If either diameter is less than 10.6 mm (0.42 in.), replace the cylinder head bolt.

Surface Variation





Intake Manifold

Tighten the bolts and nuts sequentially in three steps.

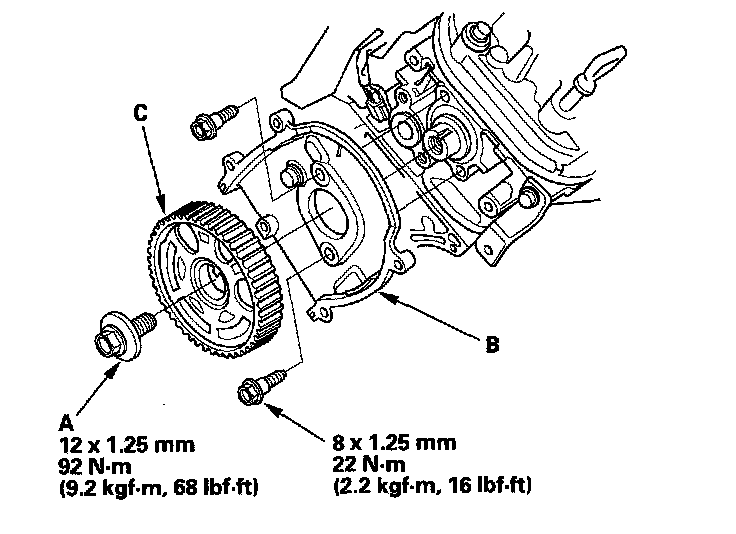

Camshaft Gear/Sprocket
