Humidity/In-Car Temperature Sensor Test
Humidity/In-car Temperature Sensor TestHumidity Sensor Test
1. Remove the humidity/in-car temperature sensor.

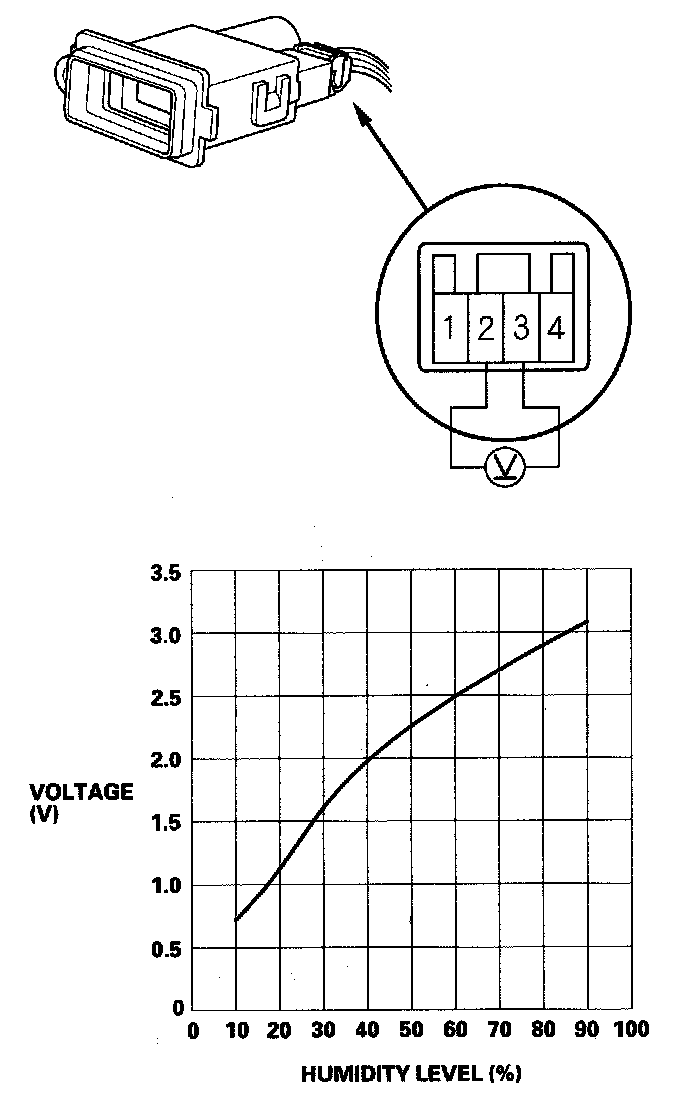

2. Turn the ignition switch to ON (II). Measure the voltage between the terminals with the (+) probe on the No. 3 terminal and the (-) probe on the No. 2 terminal with the connector connected.
3. If the voltage is not as specified, replace the humidity/in-car temperature sensor.
In-car Temperature Sensor Test
1. Remove the humidity/in-car temperature sensor.
2. Test the humidity/in-car temperature sensor while holding it in front of the dashboard center vent.
- Measure the resistance with the system set to Max Cool.
- Measure the resistance with the system set to Max Hot.

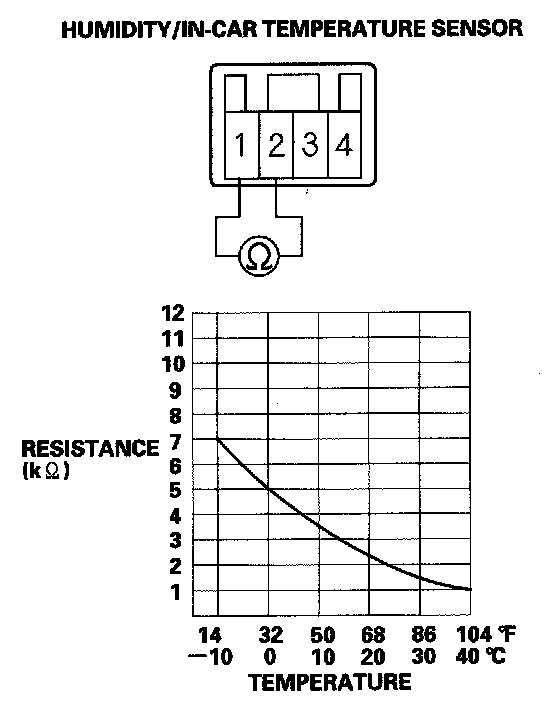

3. Compare the resistance reading between the No. 1 and No. 2 terminals of the humidity/in-car temperature sensor with the specifications shown in the graph; the resistance should be within the specifications.
4. If the resistance is not as specified, replace the humidity/in-car temperature sensor.
