Variable Valve Timing Actuator Position Sensor: Service and Repair

Rocker Arm Oil Pressure Sensor Removal/Installation

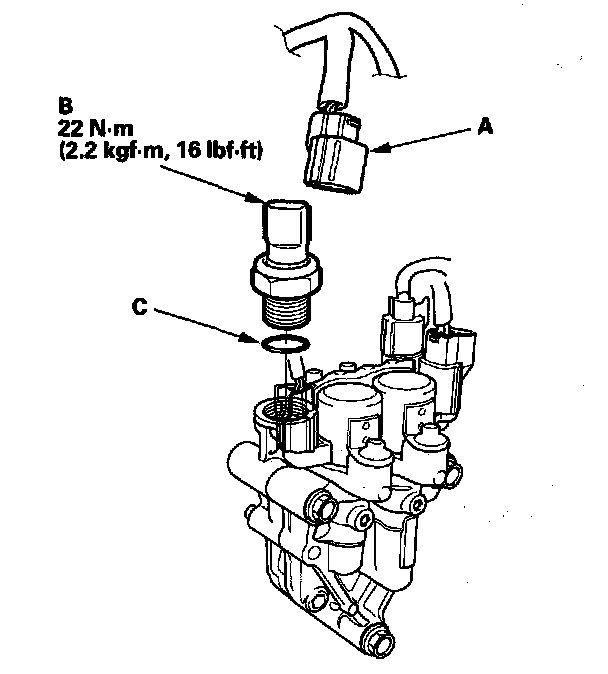

1. Disconnect the rocker arm oil pressure sensor connector (A).






2. Remove the rocker arm oil pressure sensor (B).
3. Install the parts in the reverse order of removal with a new O-ring (C).
