Control Assembly, HVAC
Control Assembly, HVAC

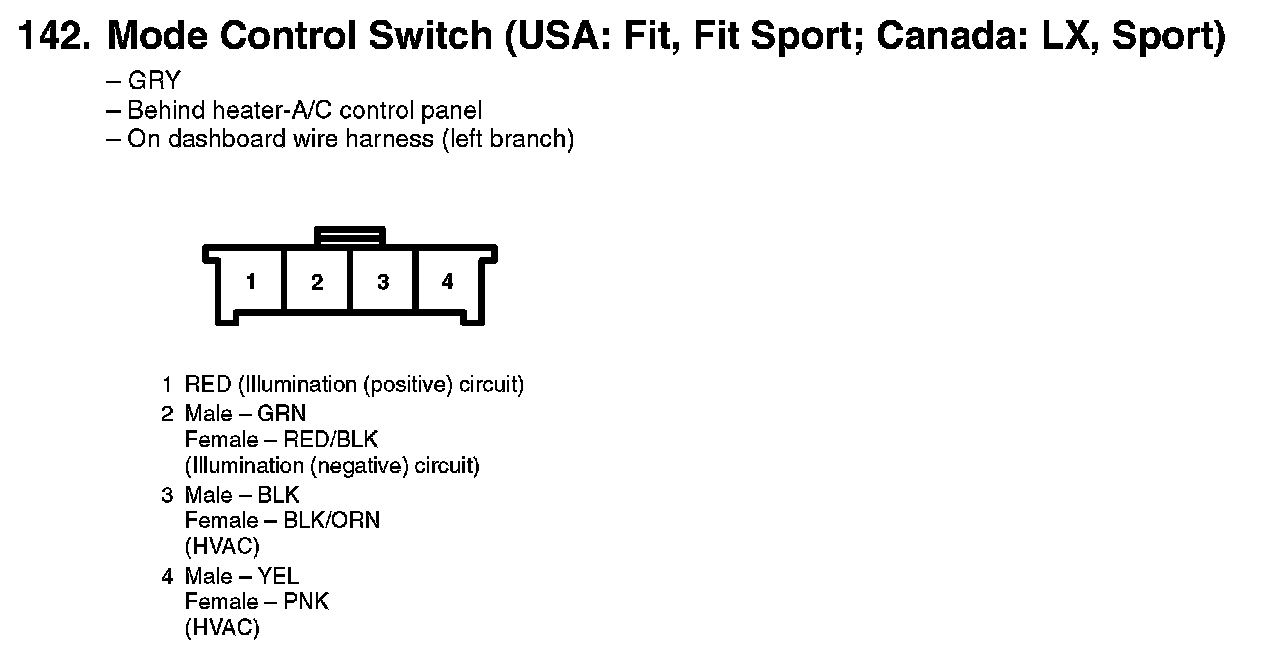

142. Mode Control Switch (USA: Fit, Fit Sport; Canada: LX, Sport):
