Home >> Honda >> 2008 >> Fit L4-1.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

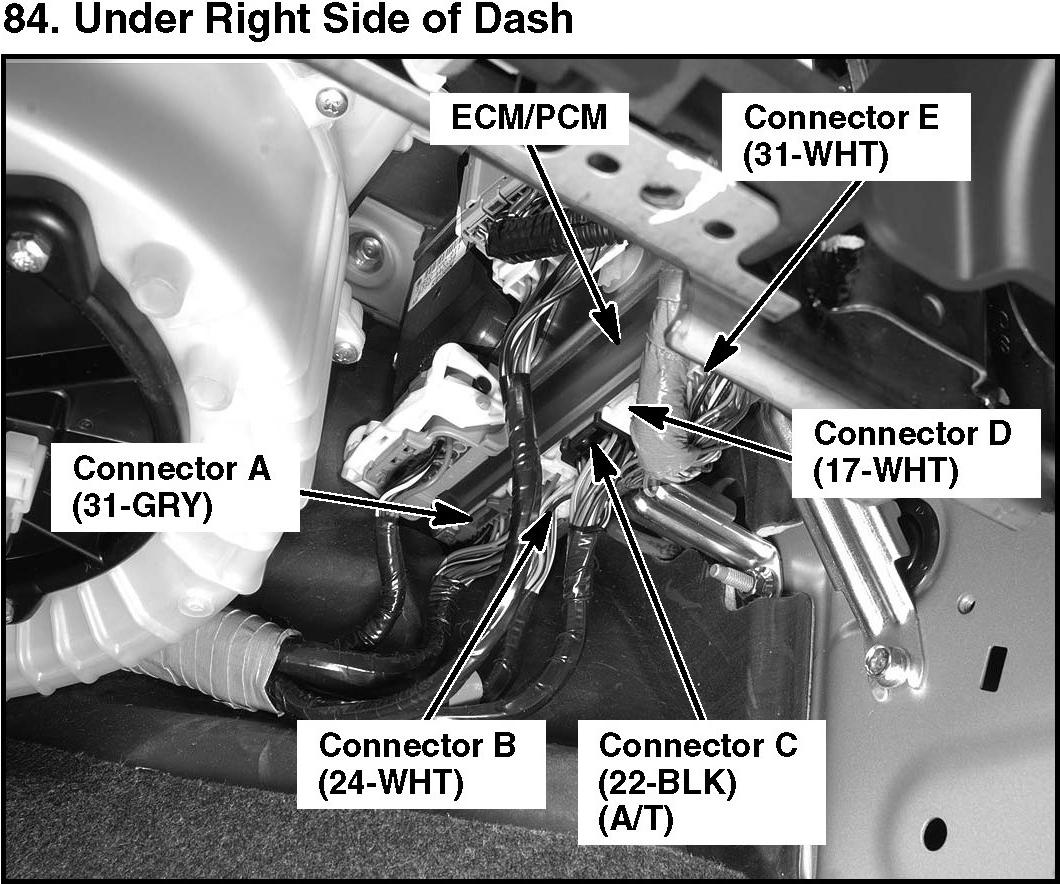

84. Under Right Side Of Dash:

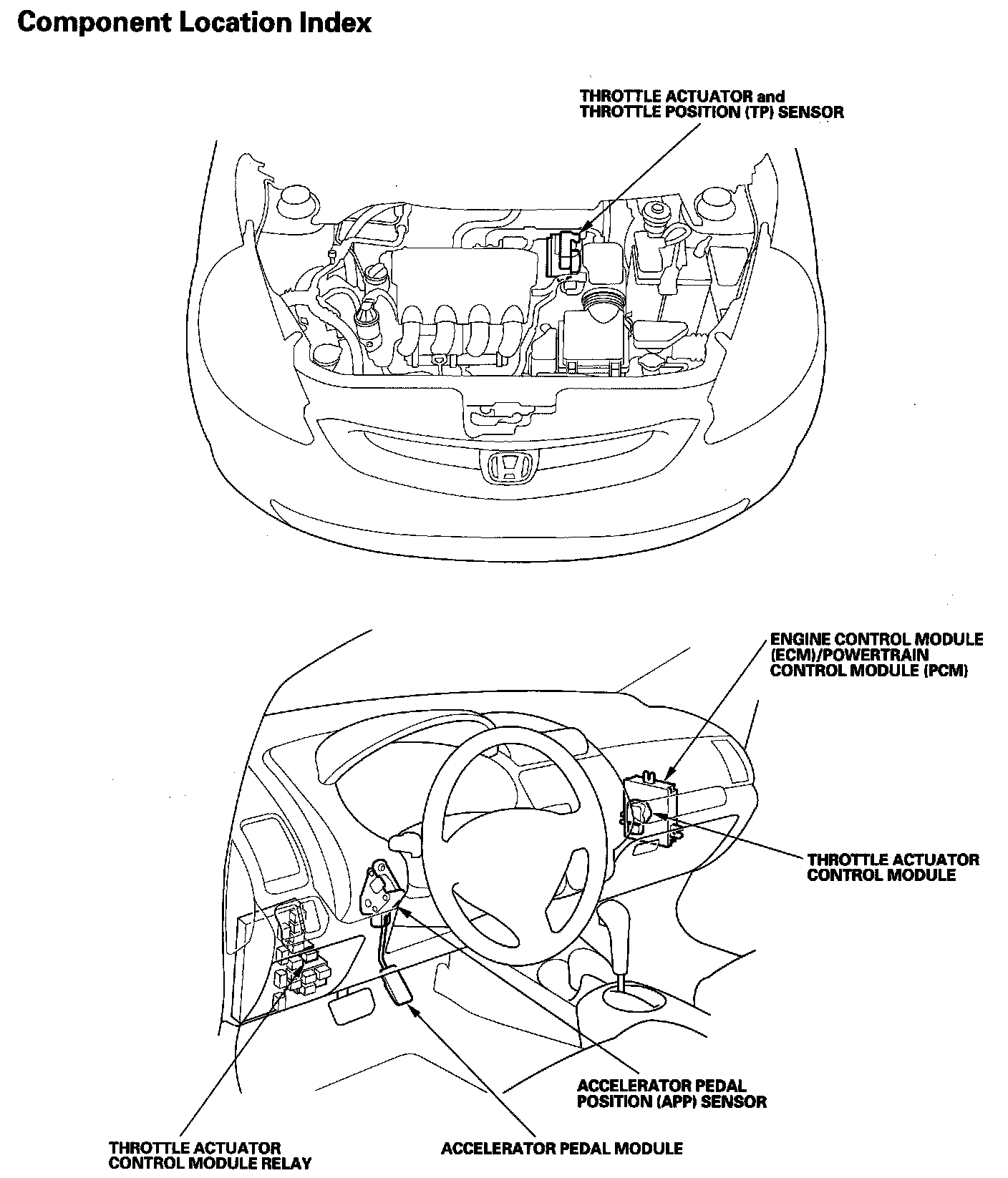

Electronic Throttle Control System Component Location Index:
