View 151-175: 172

172. Audio Unit:



187. XM Receiver (USA):

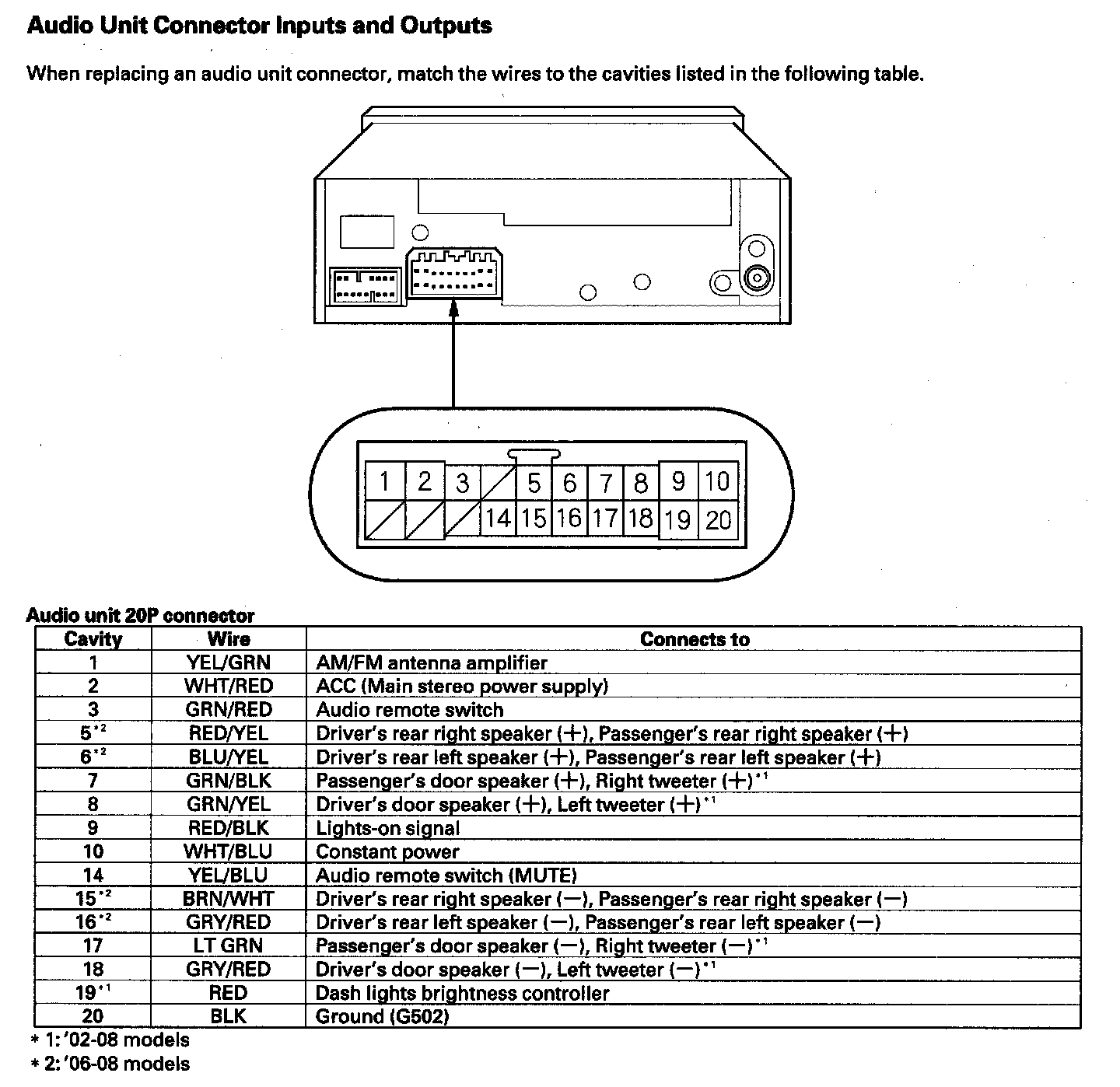

Audio Unit Connector Inputs And Outputs:
