Home >> Honda >> 2008 >> S2000 L4-2.2L >> Repair and Diagnosis >> Heating and Air Conditioning >> Refrigerant Pressure Sensor / Switch >> Locations

Refrigerant Pressure Sensor / Switch: Locations

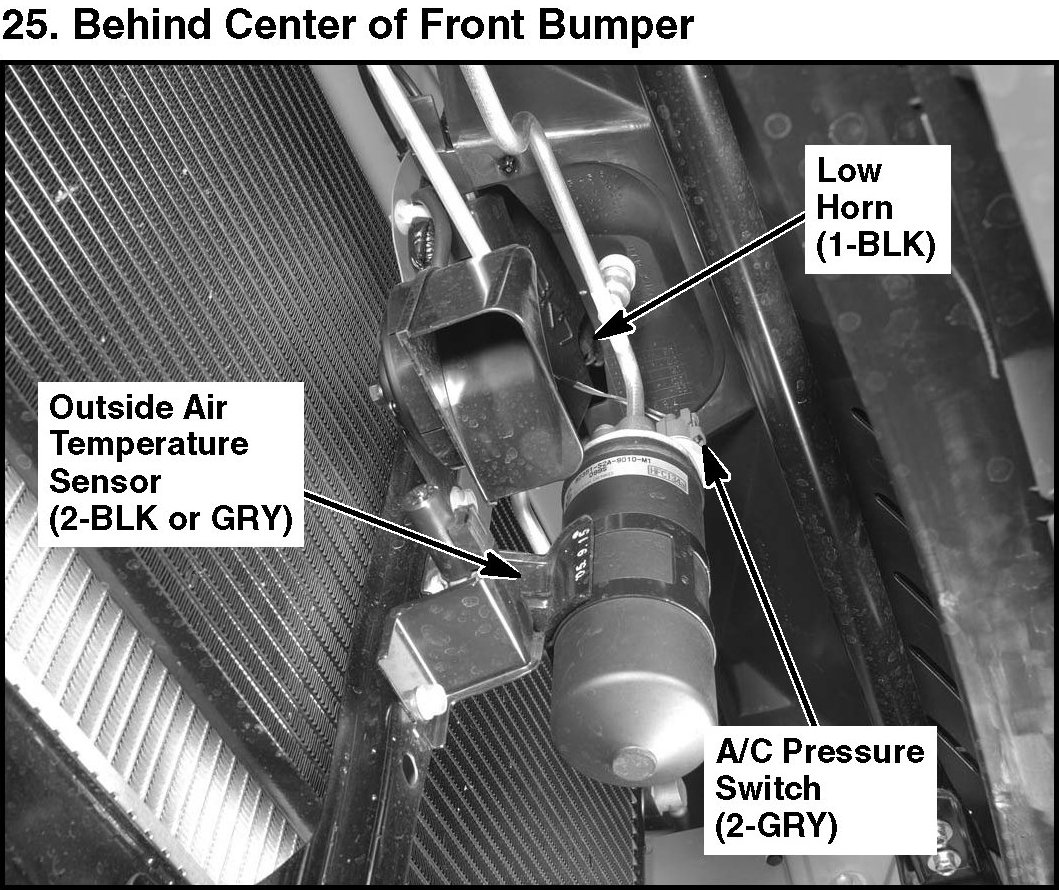

25. Behind Center Of Front Bumper:



Heating/Air Conditioning Component Location Index:
