Fluid Filter - CVT: Service and Repair

ATF Filter Replacement

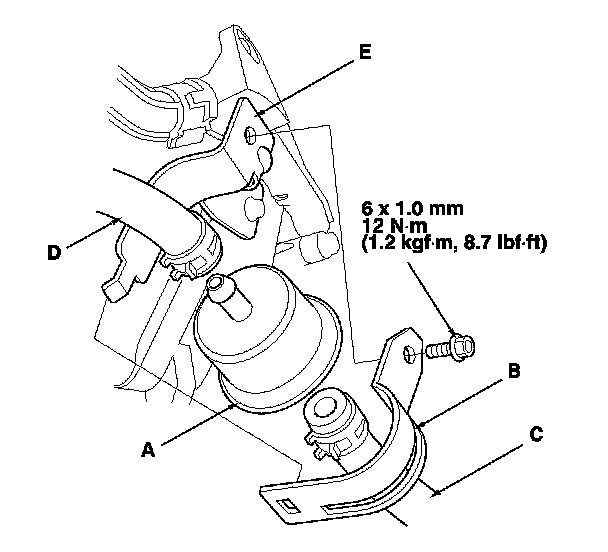

1. Disconnect the ATF cooler hoses from the ATF filter (A).

2. Remove the bolt securing the ATF filter holder (B), and remove the ATF filter.

3. Slide the ATF cooler hose (transmission side) (C) on a new ATF filter until the hose end contacts the white paint mark, and secure the hose with the clip at 2-4 mm (01-0.2 in.) from the hose end.. Service and Repair

4. Slide the ATF cooler hose (ATF cooler side) (D) on the ATF filter until the hose end is 5-7 mm (02-0.3 in.) away from the filter housing.. Service and Repair

5. Secure the ATF filter on its bracket (E) with the ATF filter holder and the bolt.
