Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2009
>>
Civic L4-1.3L Hybrid
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Continuously Variable Transmission/Transaxle, CVT
>>
System Specifications
>>
Standards and Service Limits
>>

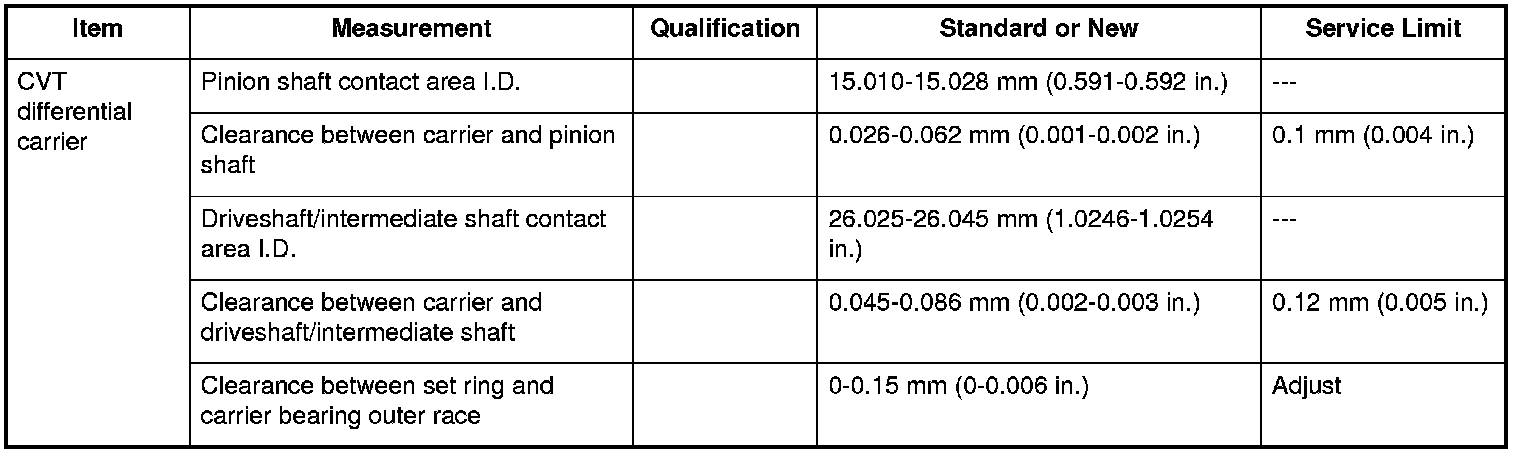

CVT Differential Carrier Specifications
CVT Differential Carrier Specifications
CVT differential carrier Specifications
CVT differential carrier
