Heater Outlet Replacement

Heater Outlet Replacement

1. Drain the engine coolant. Service and Repair

2. Remove the air cleaner assembly. Service and Repair

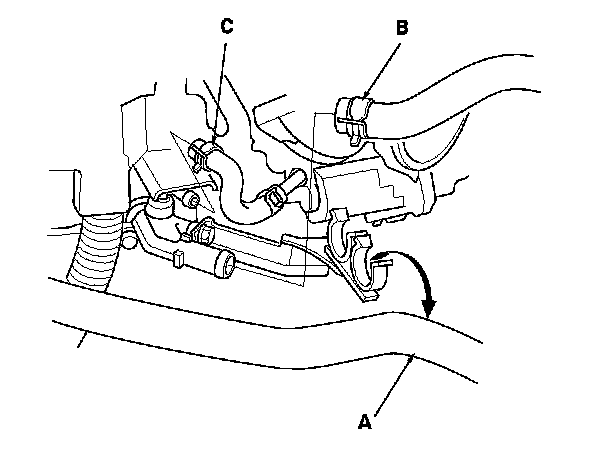

3. Remove the heater hose (A) from the clamp.

4. Disconnect the heater hose (B) and the water bypass hose (C).






5. Remove the heater outlet (A).

6. Install the heater outlet with a new gasket (B).

7. Install the other parts in the reverse order of removal.

8. Refill the radiator with engine coolant, and bleed the air from the cooling system with the heater valve open. Service and Repair

9. Clean up any spilled engine coolant.
