Home >> Honda >> 2009 >> Fit L4-1.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Engine Lubrication >> Oil Pump, Engine >> Torque and Sequence

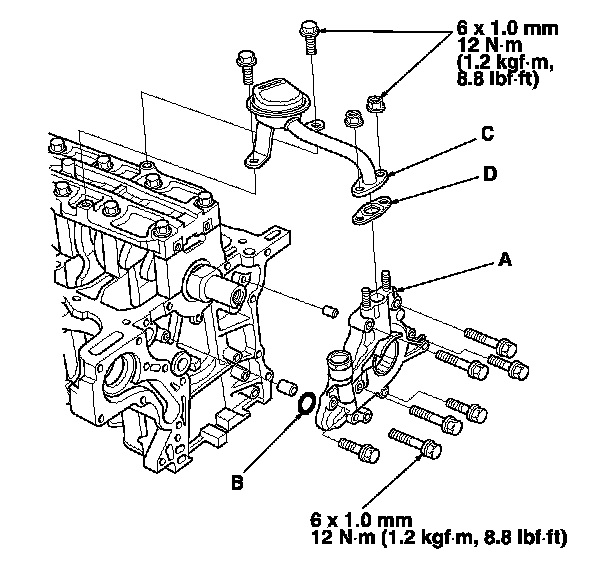

Torque and Sequence



Oil Pump Specifications

Torque
