Home
>>
Honda
>>
2009
>>
Fit L4-1.5L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Suspension
>>
Wheel Hub
>>
Front
Front
Front Knuckle/Hub/
Wheel Bearing
Replacement

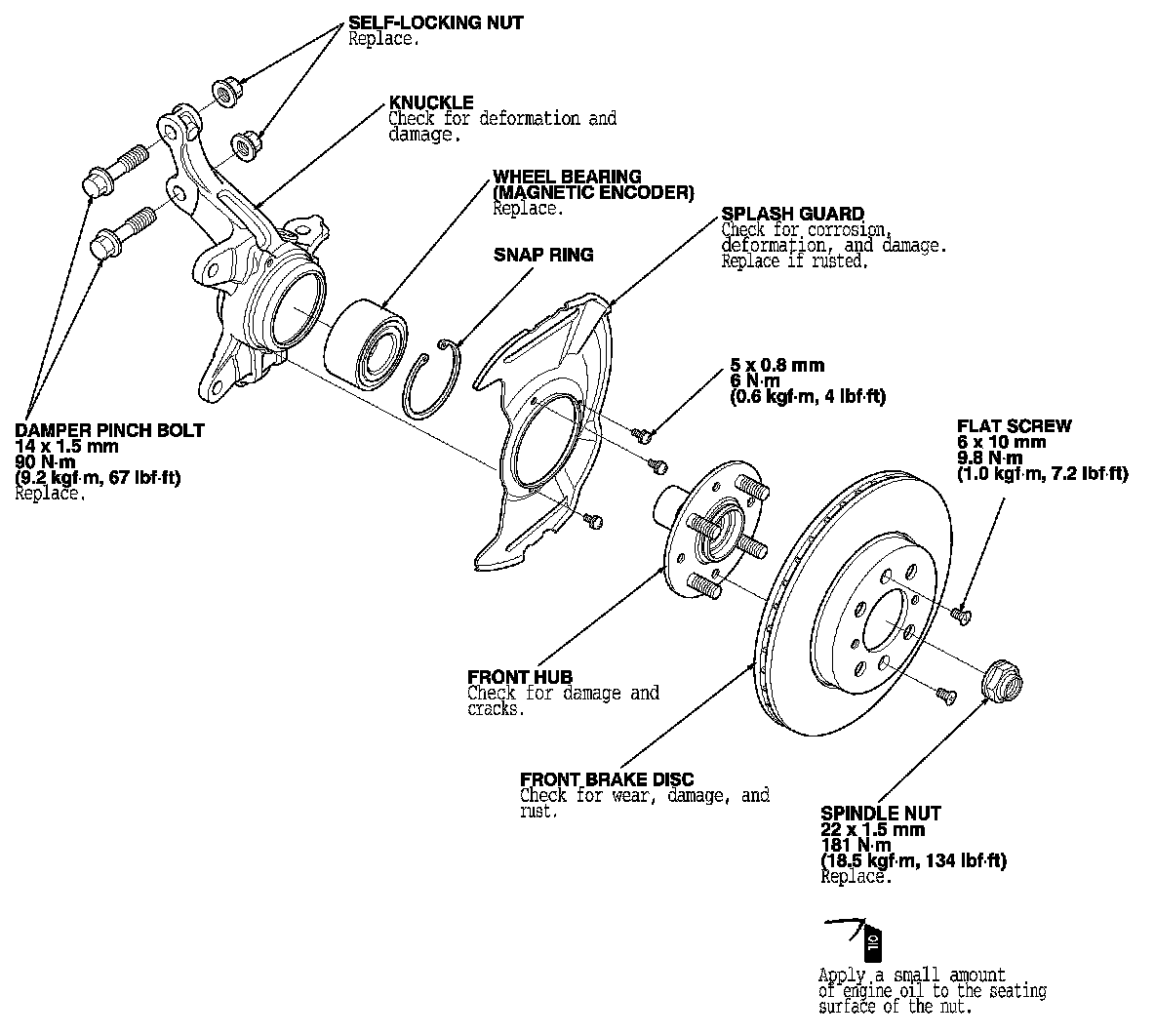

Exploded View
