Operation CHARM: Car repair manuals for everyone.
Home >> Honda >> 2009 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 98 Alternator Connector View

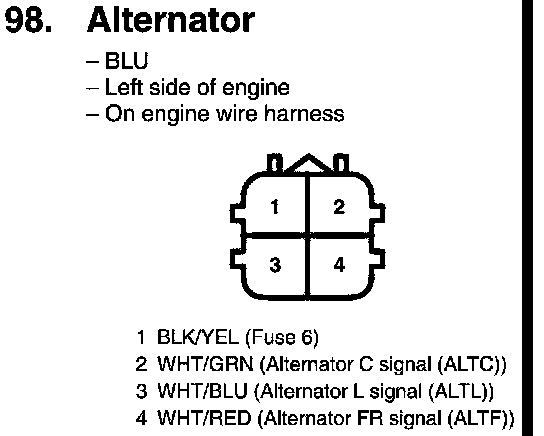

View 98 Alternator Connector View
