Engine Block Sealing Bolt Installation

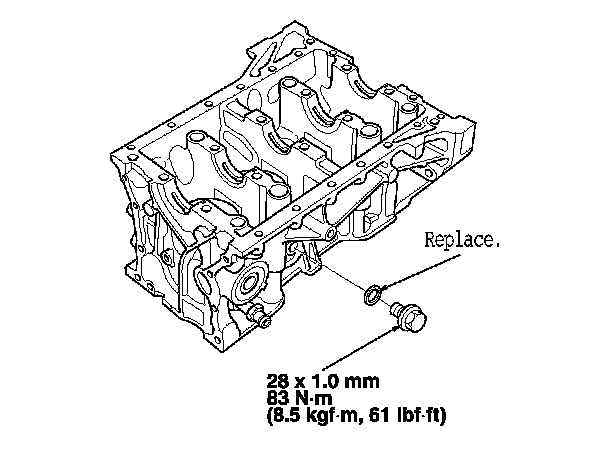

Engine Block Sealing Bolt Installation
Engine Block Sealing Bolt Installation
NOTE: When installing the drain bolt, always use a new washer.
