Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2009
>>
S2000 L4-2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>

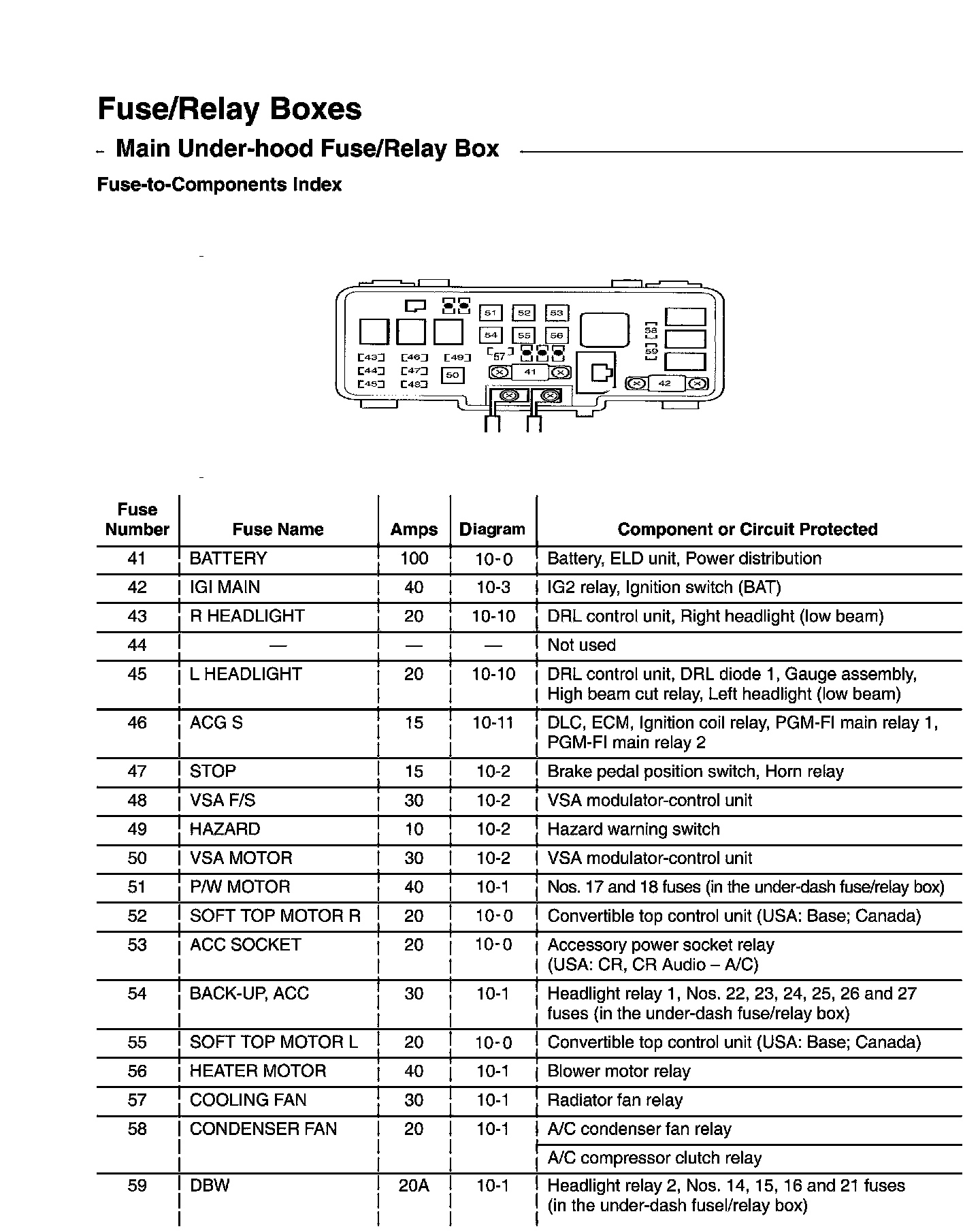

Main Under-hood Fuse/Relay Box - Fuse-to-Components Index
Main Under-hood Fuse/Relay Box - Fuse-to-Components Index
