Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2010
>>
Accord V6-3.5L
>>
Parts and Labor
>>
Starting and Charging
>>
Charging System
>>
Images
Images

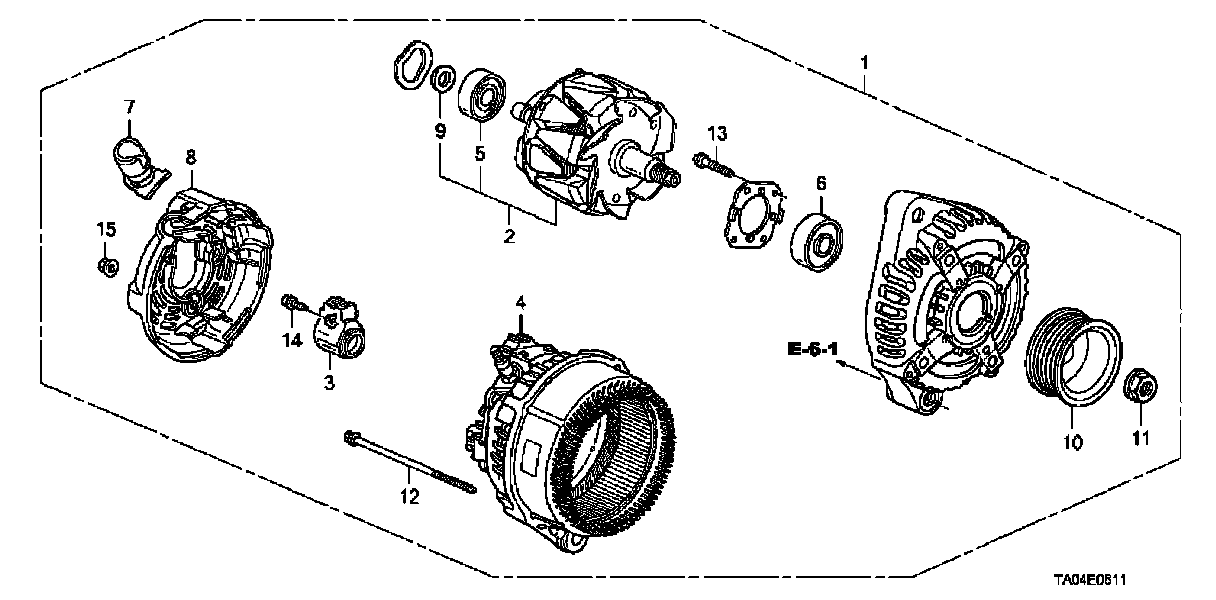

Alternator (Denso), 2 Door:

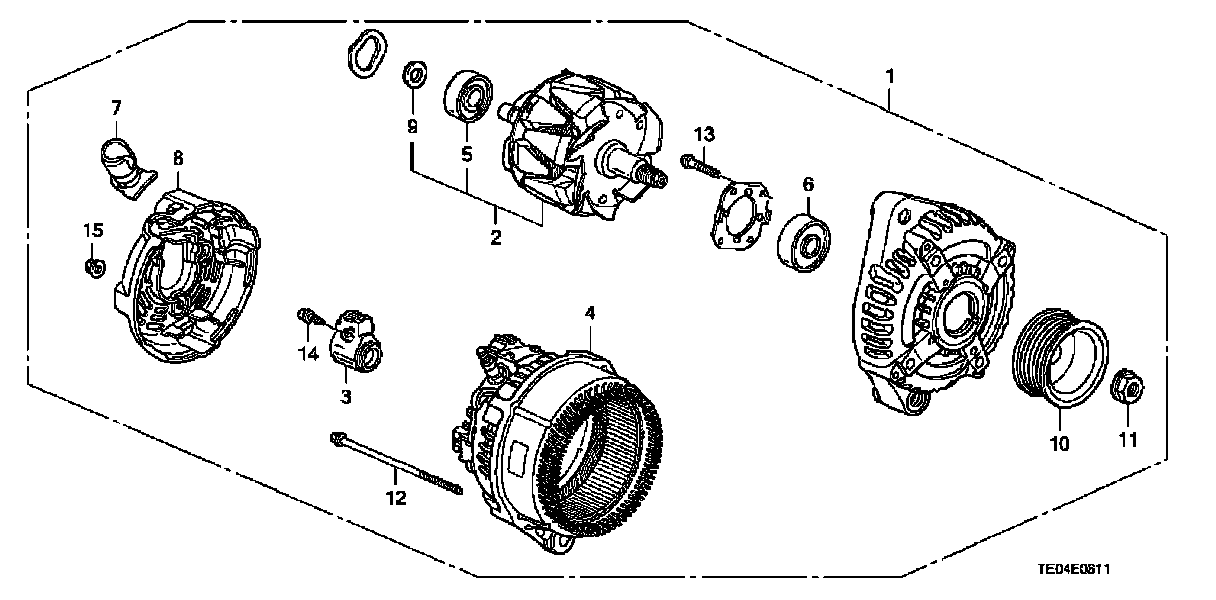

Alternator (Denso), 4 Door:

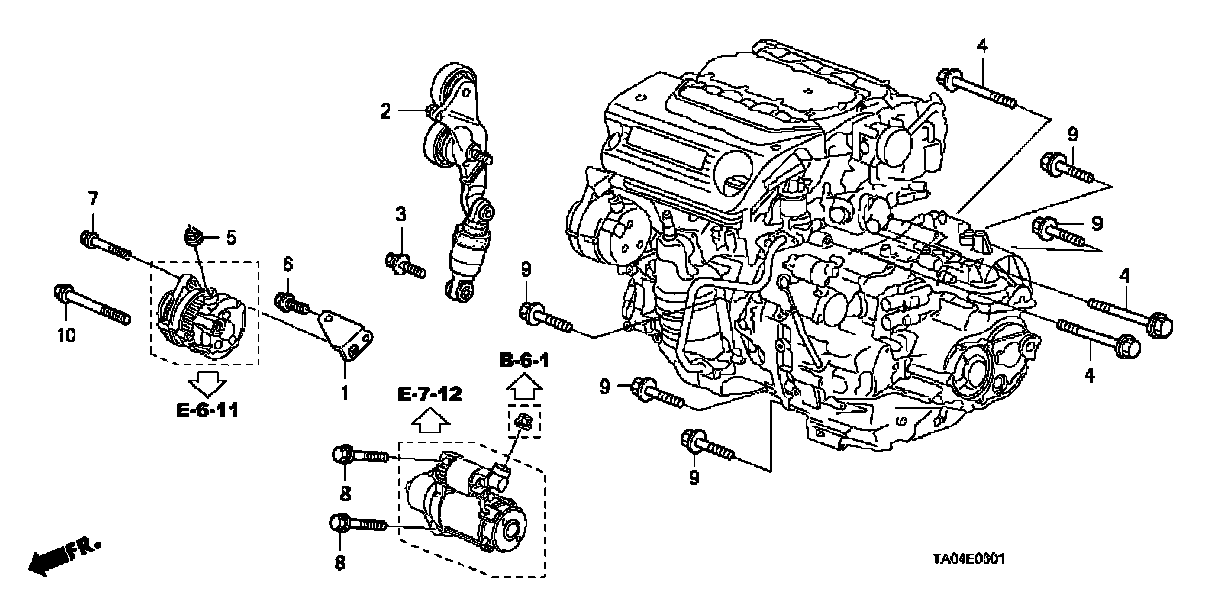

Alternator Bracket:

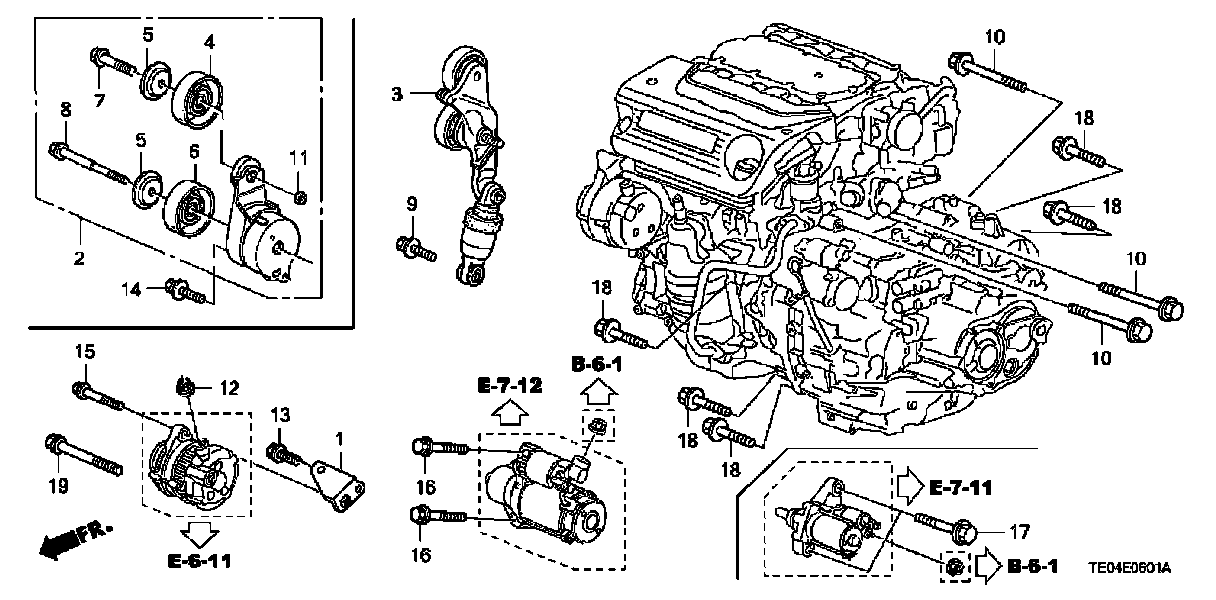

Alternator Bracket - Tensioner:
