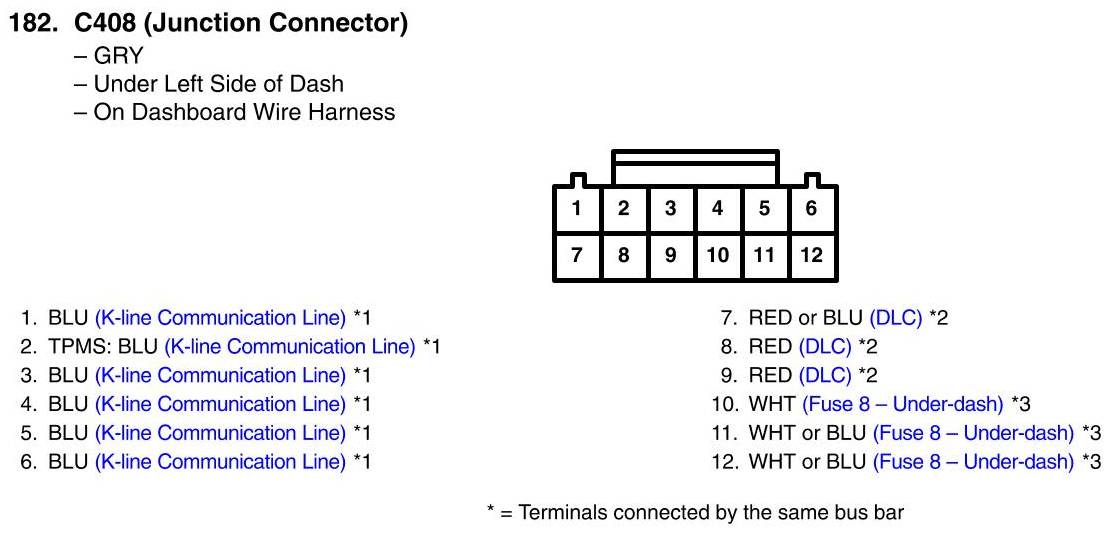

View 182 - C408 (Junction Connector) Connector View
View 182 - C408 (Junction Connector) Connector View
