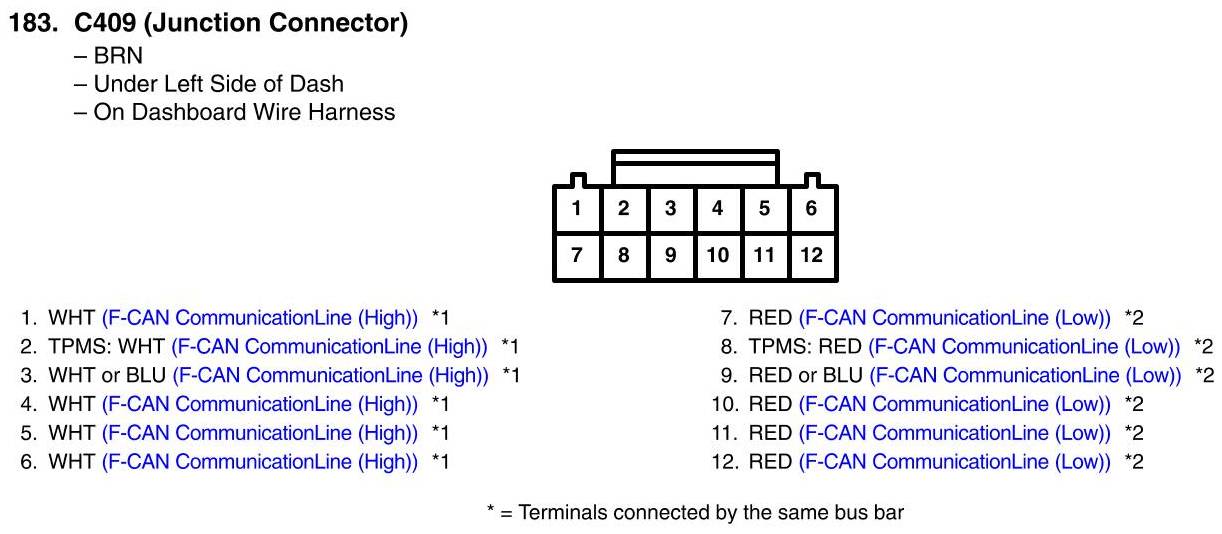

View 183 - C409 (Junction Connector) Connector View
View 183 - C409 (Junction Connector) Connector View
