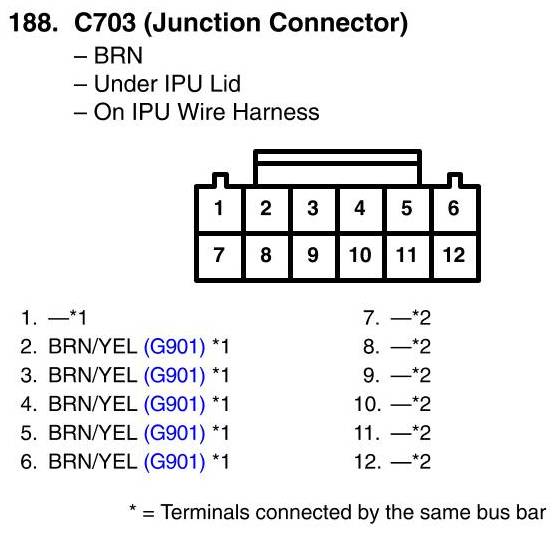

View 188 - C703 (Junction Connector) Connector View
View 188 - C703 (Junction Connector) Connector View
