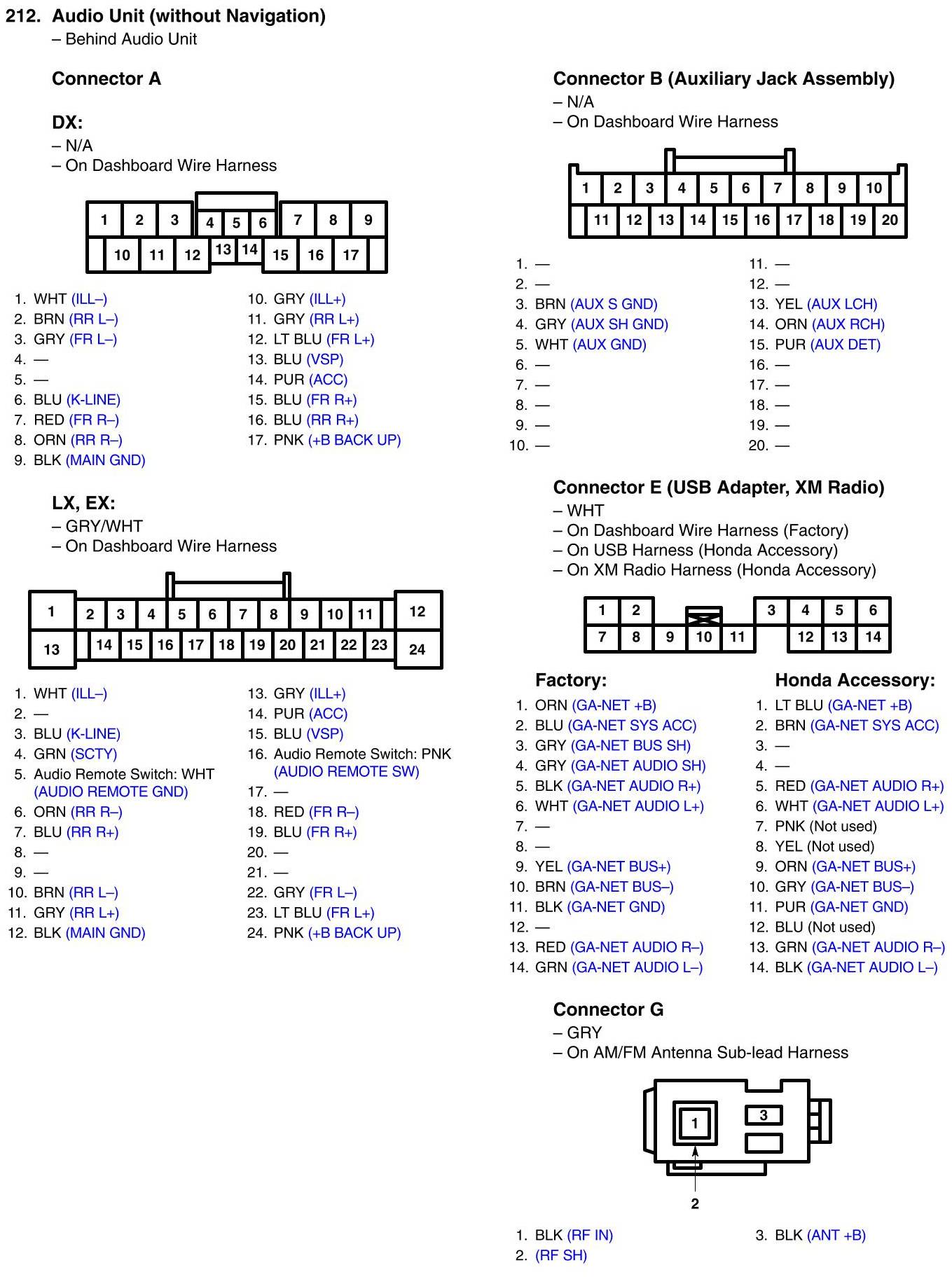

View 212 - Audio Unit Connector View (Without Navigation)
View 212 - Audio Unit Connector View (Without Navigation)
