Home
>>
Honda
>>
2011
>>
CR-Z L4-1.5L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
>>
CVT Control System
>>
KC Canada
KC Canada

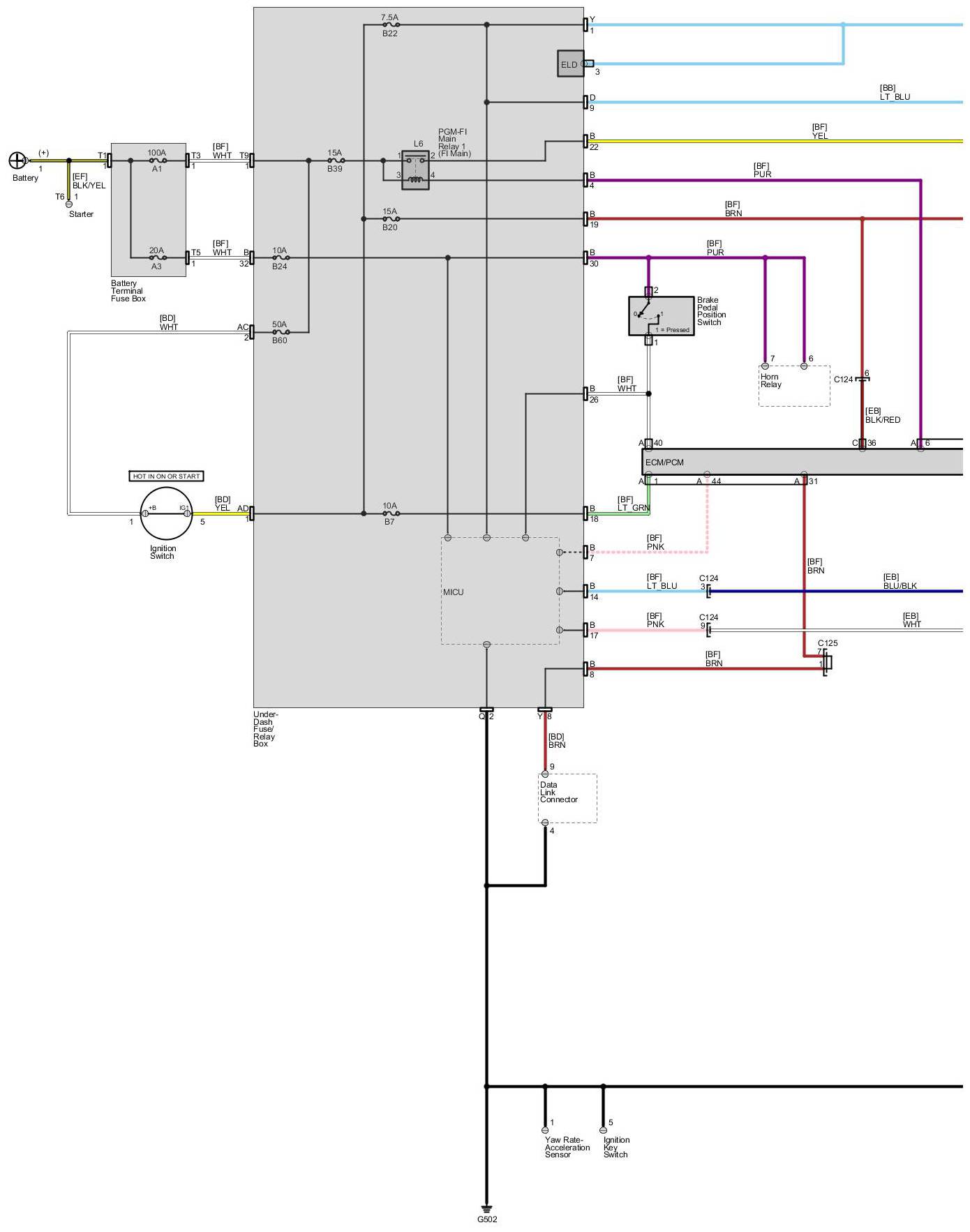

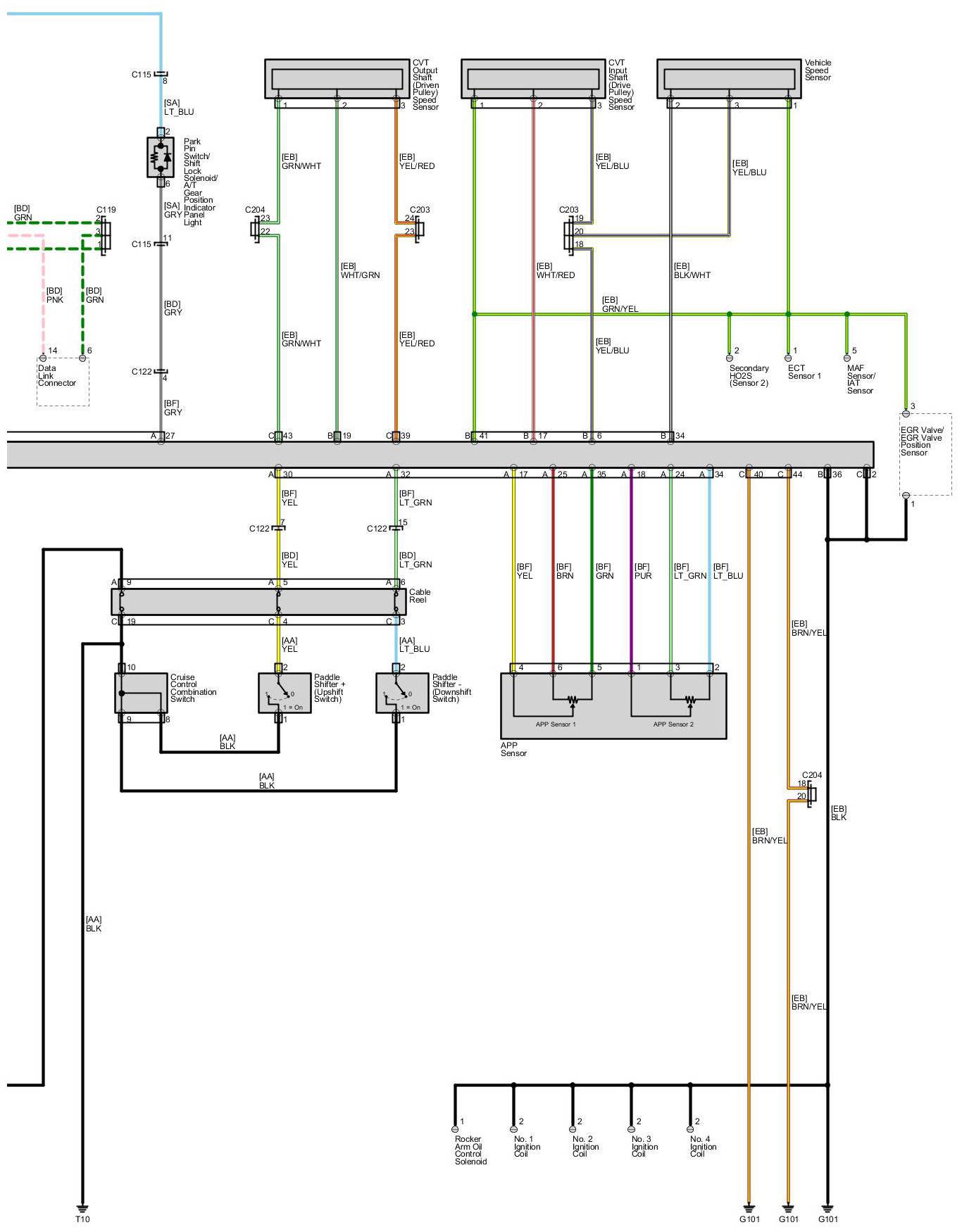

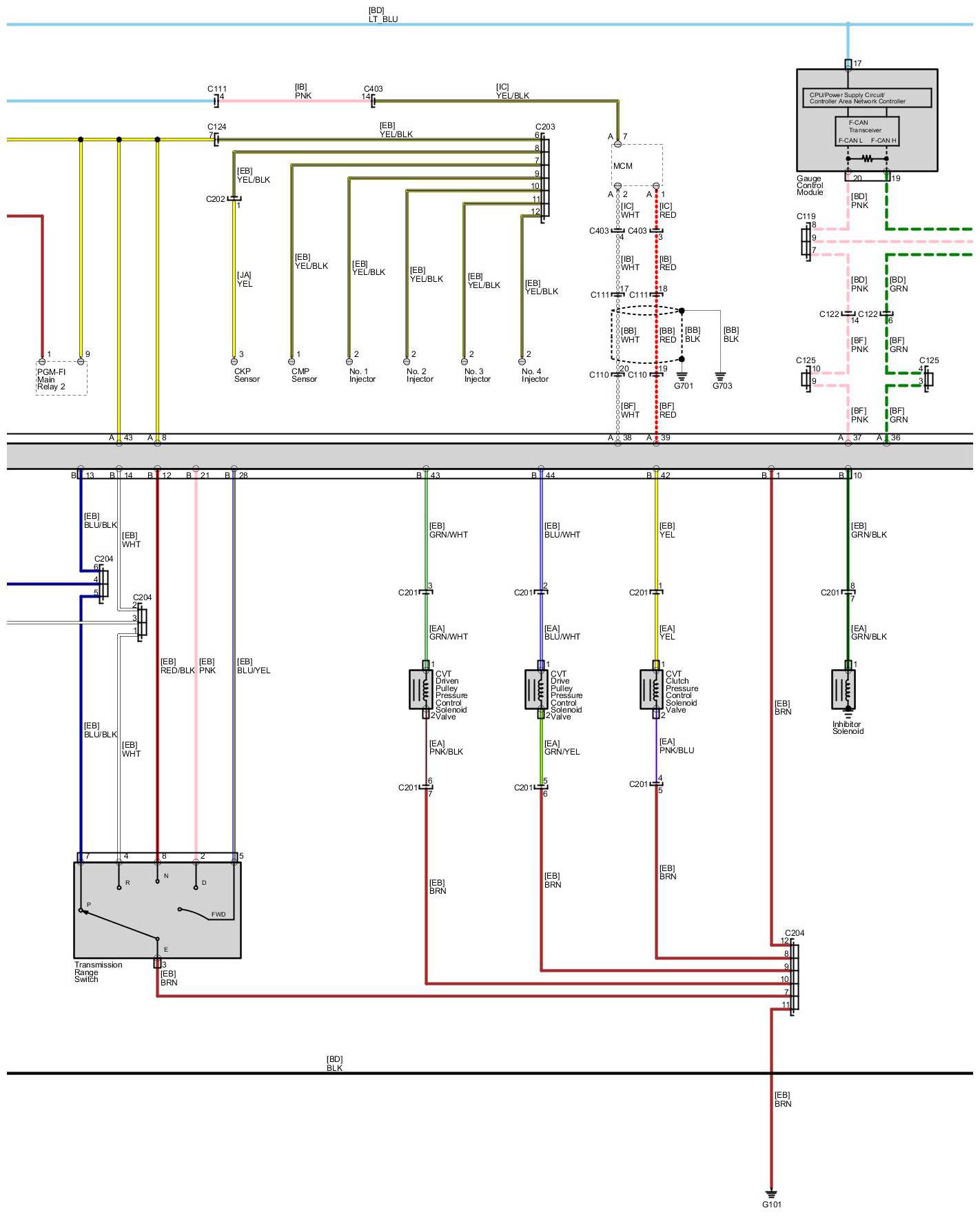

Transaxle - CVT Control System
KC Canada, 2-door CR-Z, ZF1, Hatchback, LEA1, CVT Transmission with these options (HID)
