KC Canada

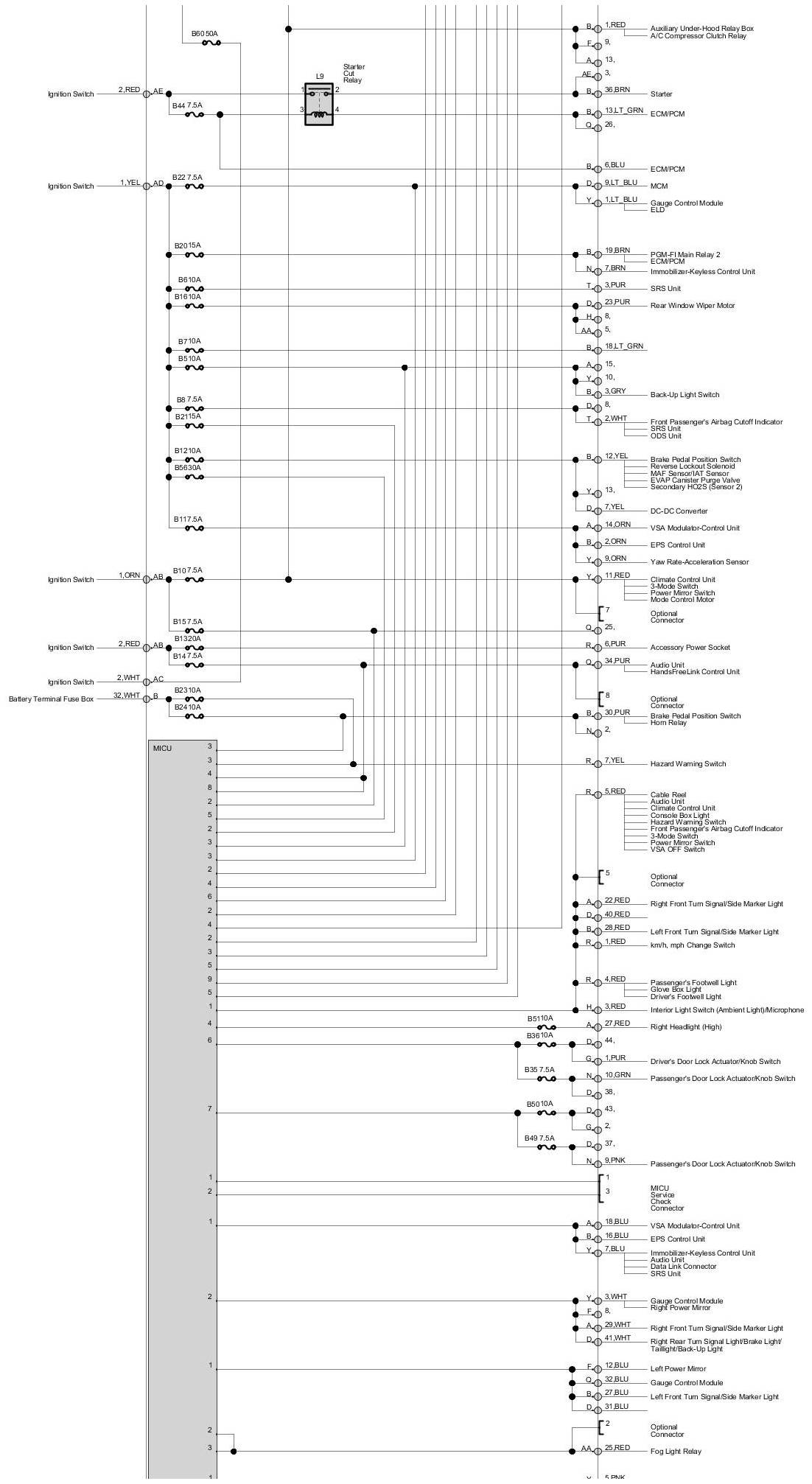

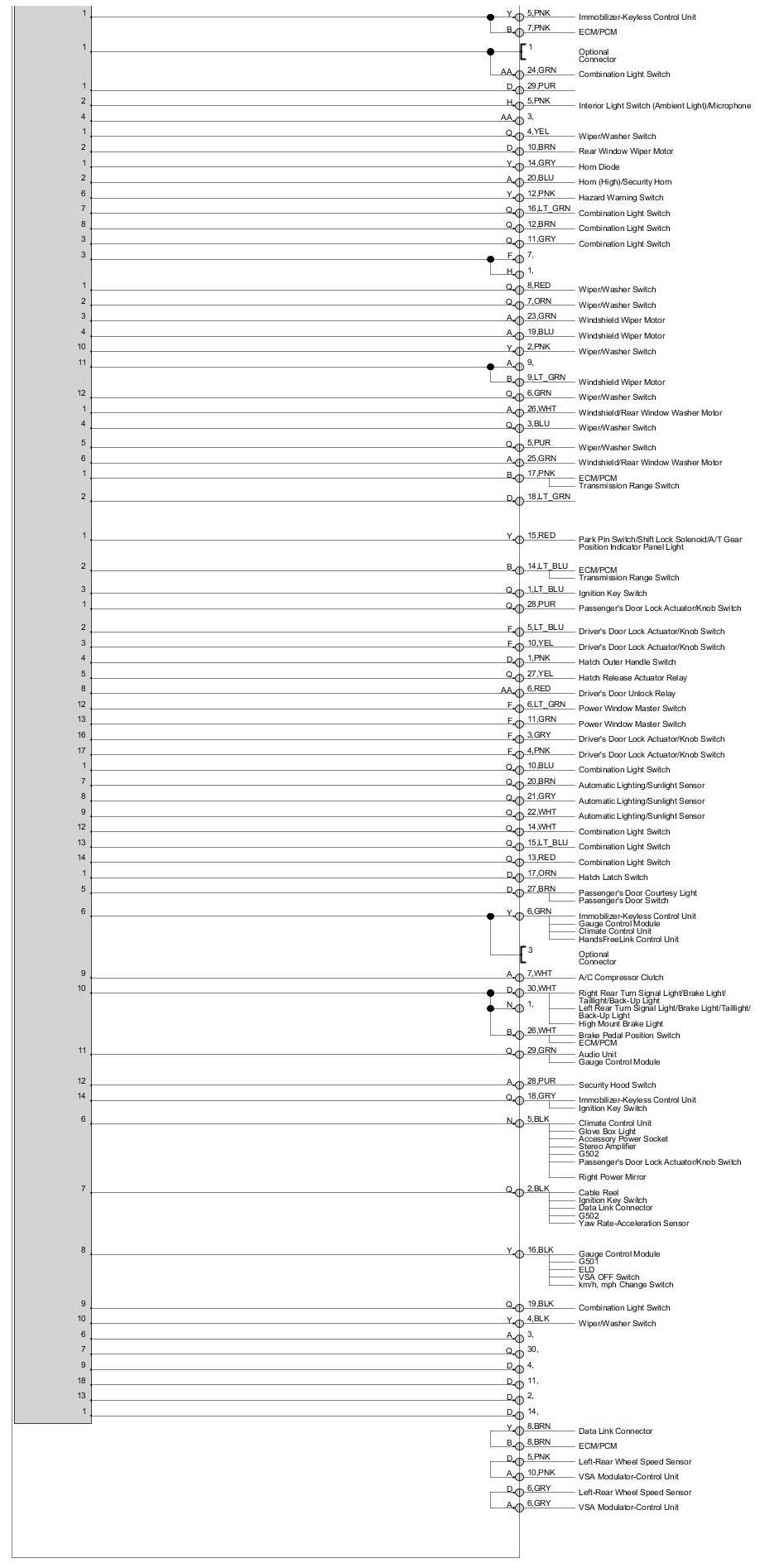

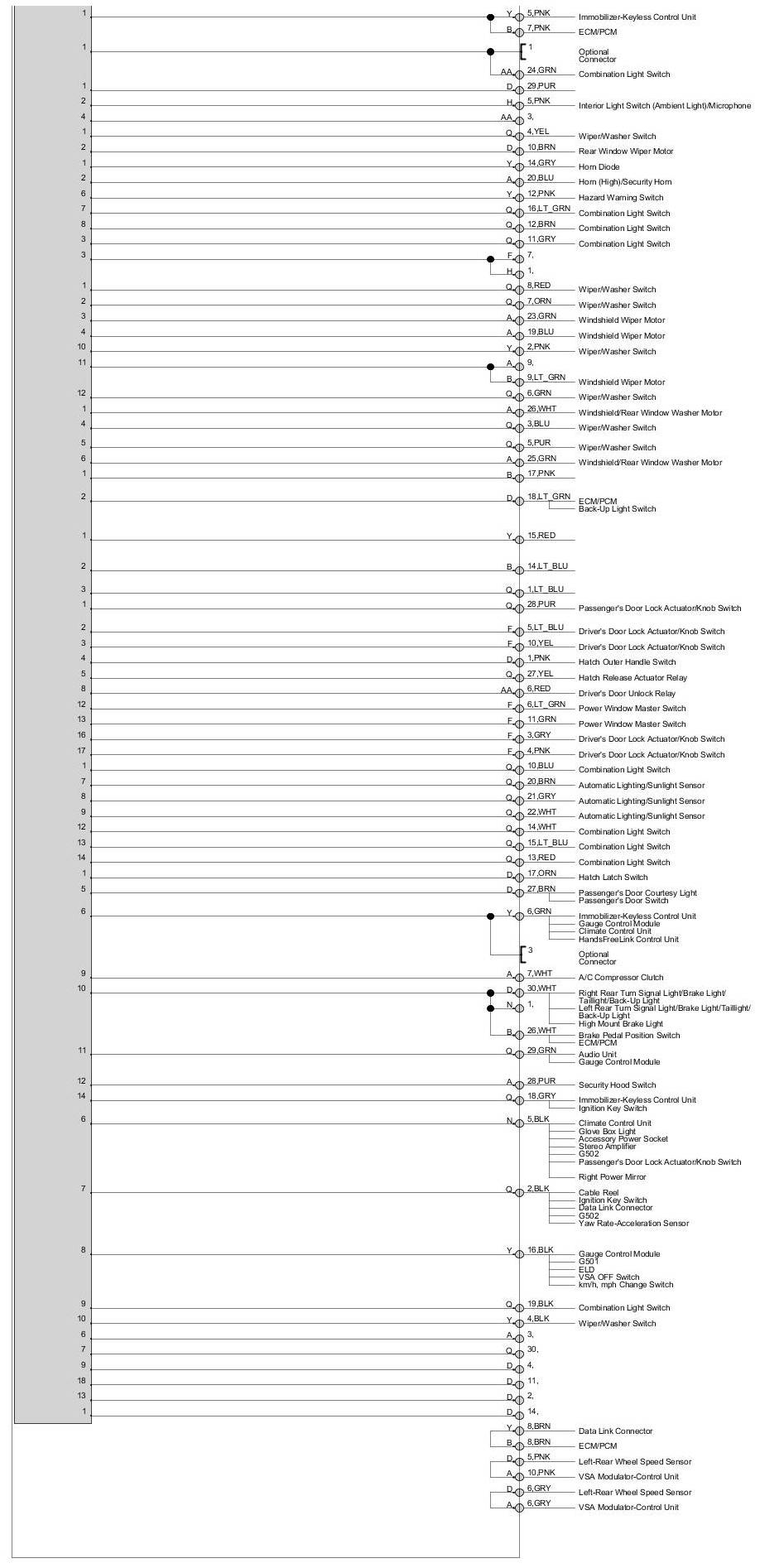

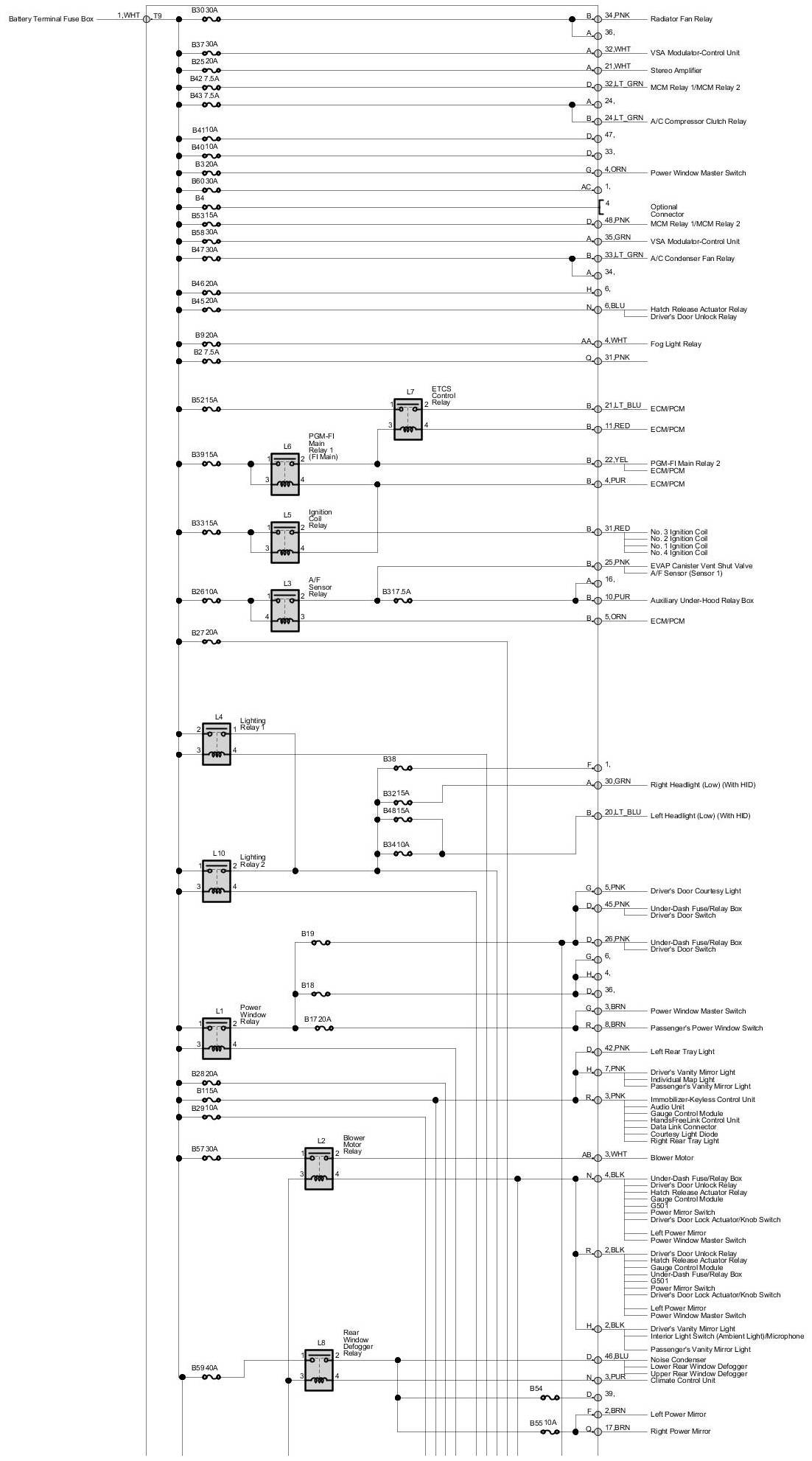

Fuse/Relay Box Diagram - Under-Dash Fuse/Relay Box

KC Canada, 2-door CR-Z, ZF1, Hatchback, LEA1, MT Transmission with these options (HID)












KC Canada, 2-door CR-Z, ZF1, Hatchback, LEA1, CVT Transmission with these options (HID)
