KA USA

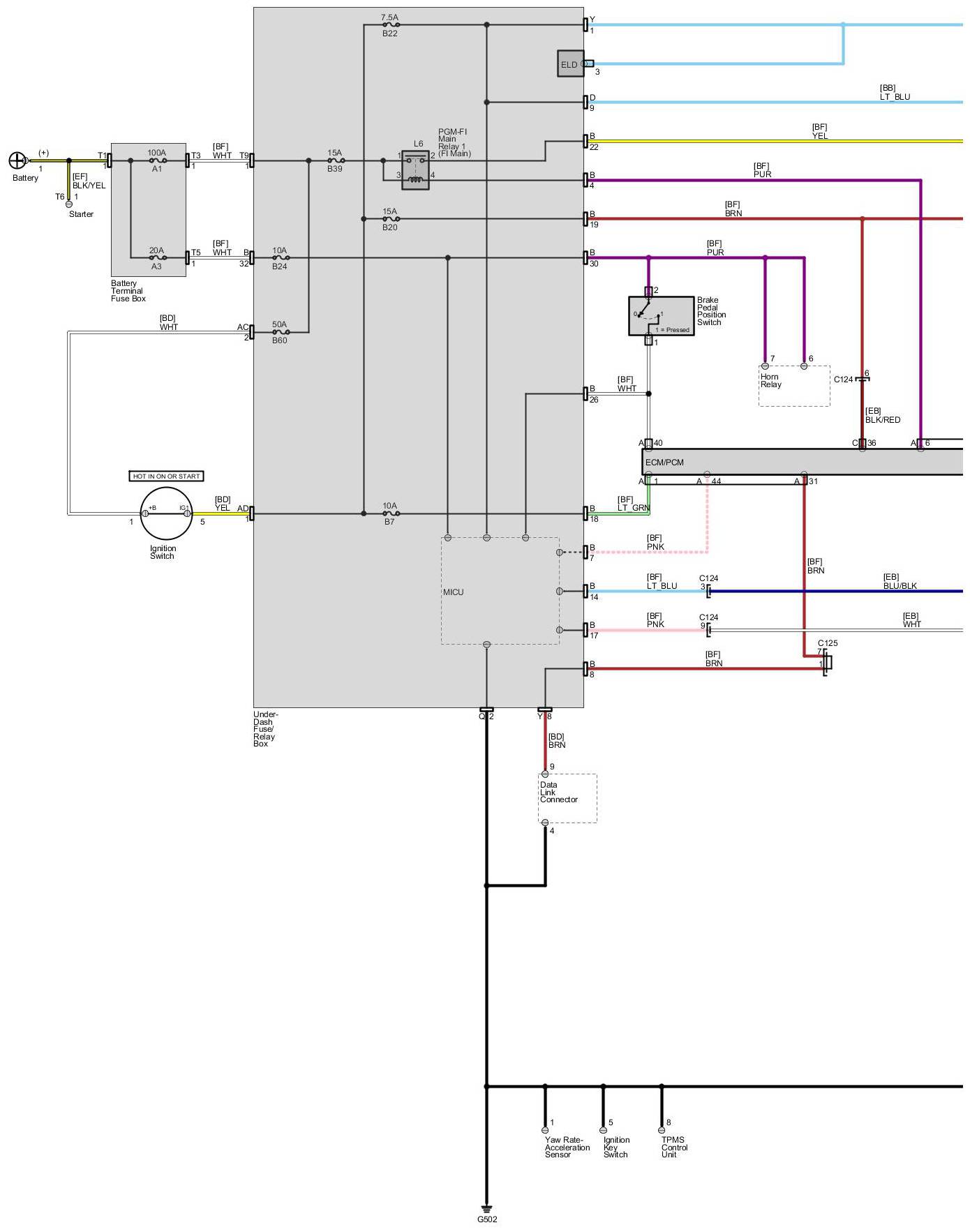

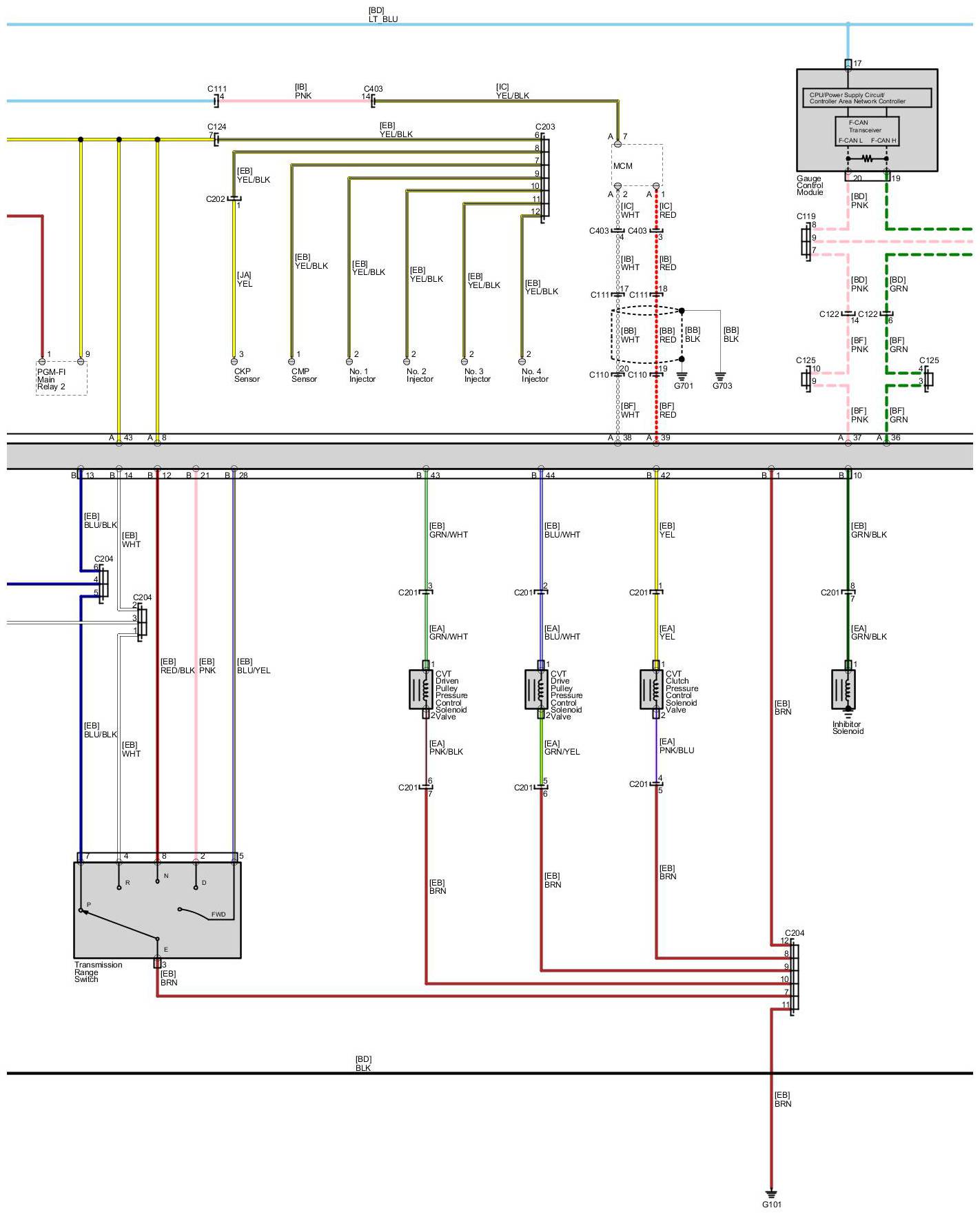

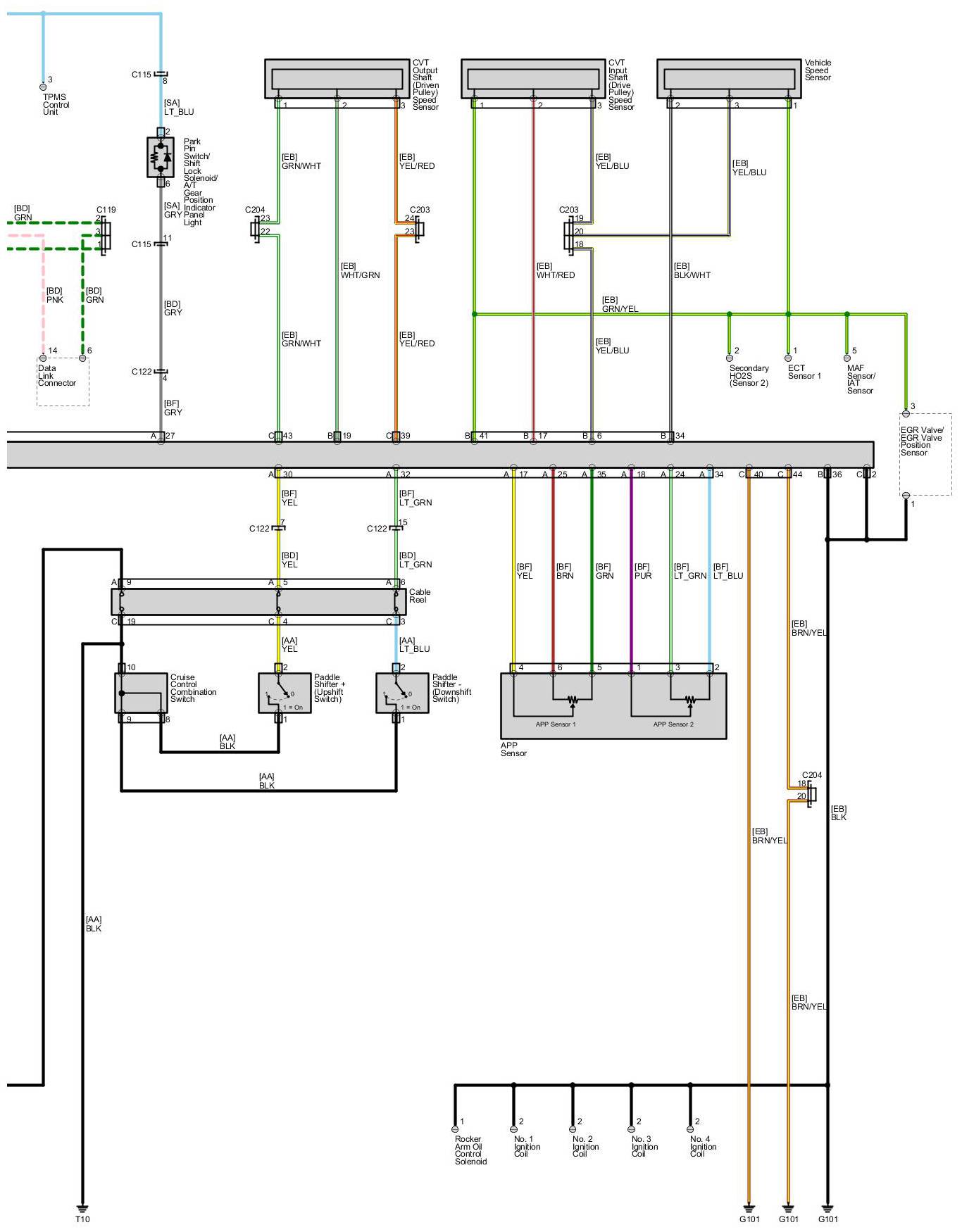

Transaxle - CVT Control System

KA USA, 2-door CR-Z, ZF1, Hatchback, LEA1, CVT Transmission












KA USA, 2-door CR-Z EX, ZF1, Hatchback, LEA1, CVT Transmission with these options (HID)












KA USA, 2-door CR-Z EX, ZF1, Hatchback, LEA1, CVT Transmission with these options (NAVIGATION, HID)
