Tightening Torque and Sequence

Torque the connecting rod bolts to 10 N-m (1.0 kgf-m, 7 lbf-ft)

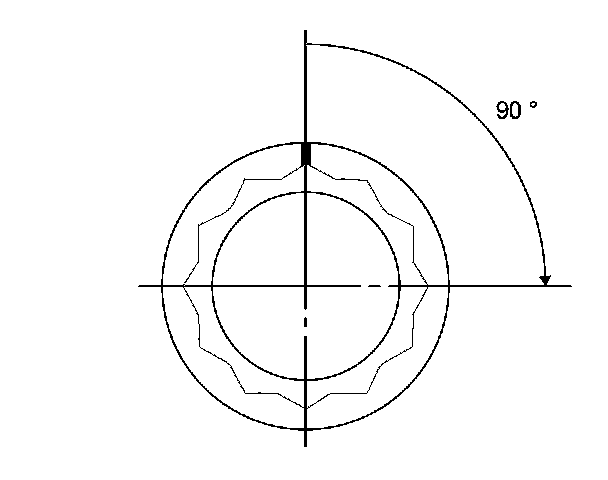

Tighten the connecting rod bolts an additional 90 °
