Tightening Torque And Sequence

Cylinder Head Bolt

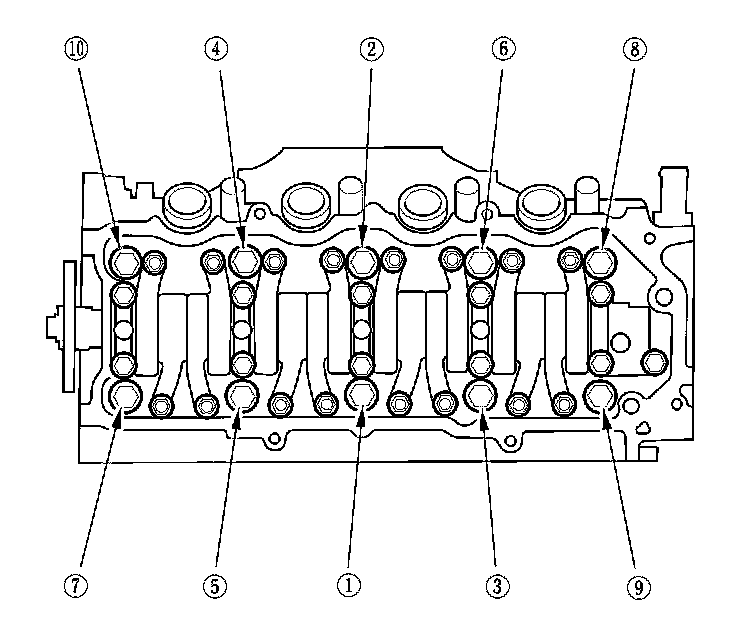

Torque the cylinder head bolts in sequence to 29 N-m (3.0 kgf-m, 22 lbf-ft)

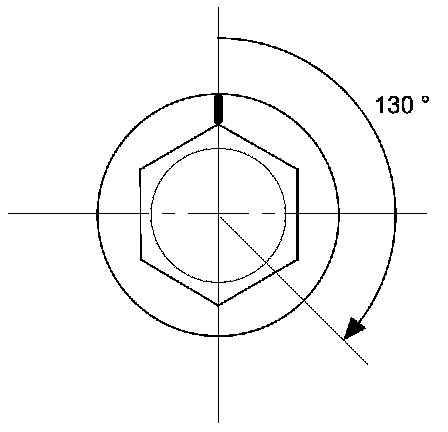

Tighten all cylinder head bolts an additional 130 °.

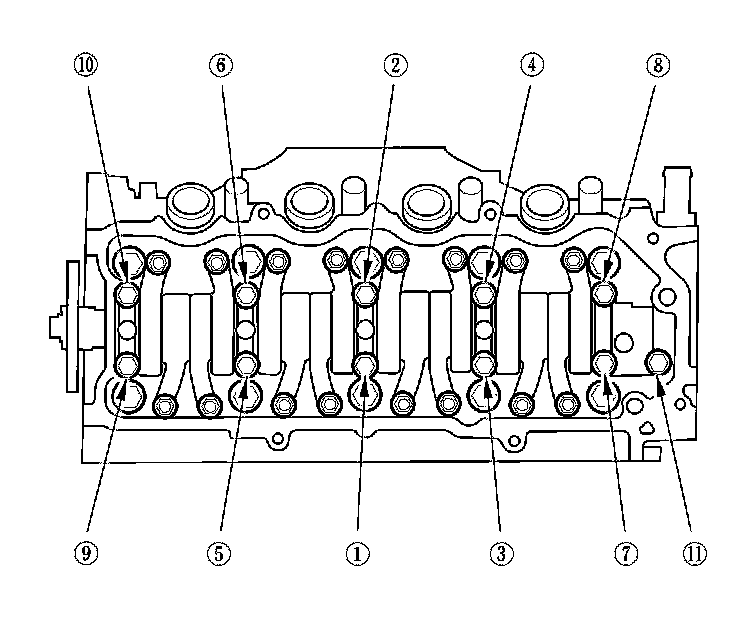

Rocker Arm Assembly Installation

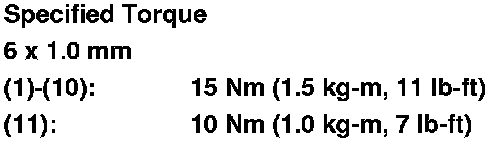

Tighten each bolt two turns at a time in sequence.
