Locations
>>

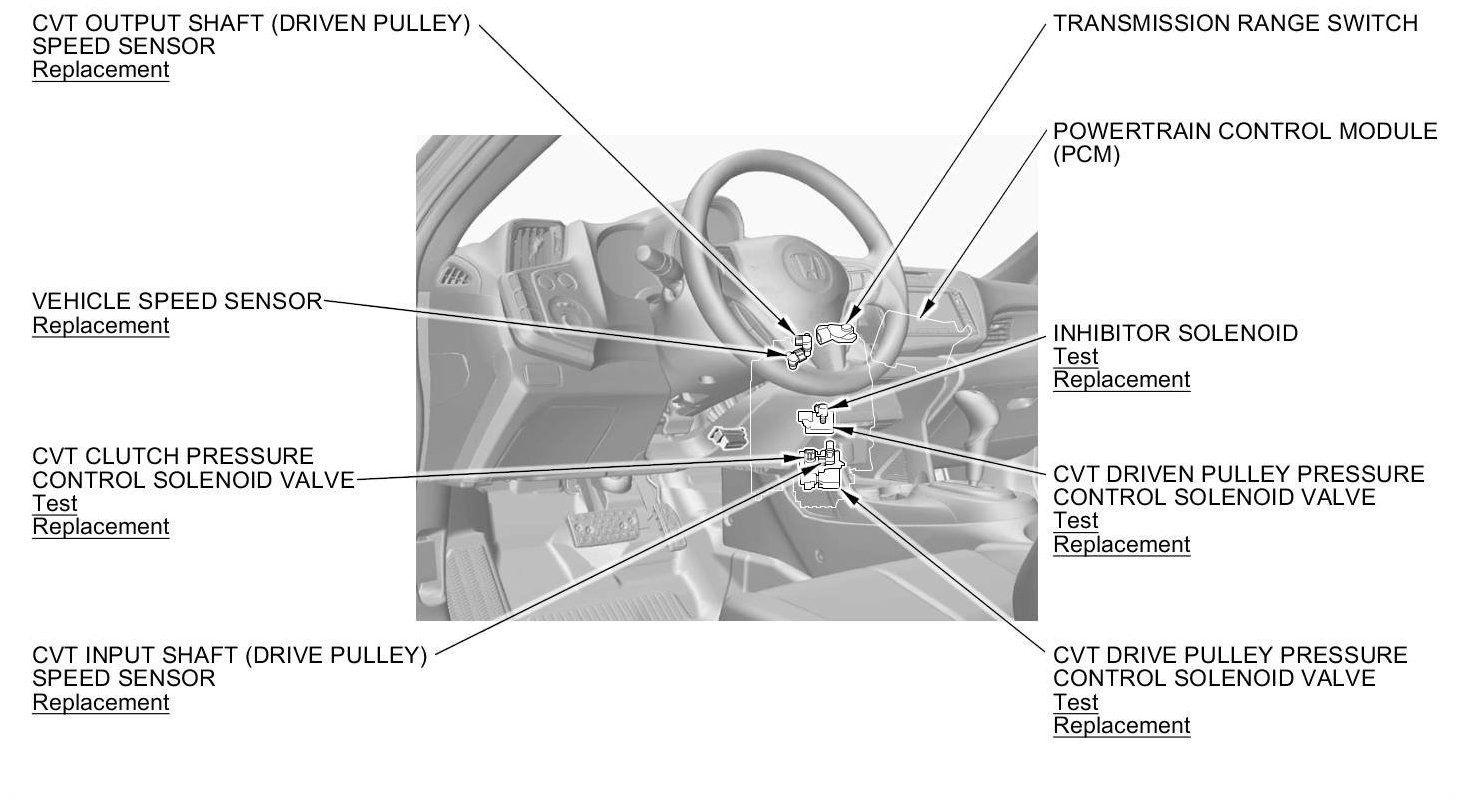

CVT System Component Location Index
CVT System Component Location Index
CVT System Component Location Index
