Fuse To Components Index




Fuse to Components Index

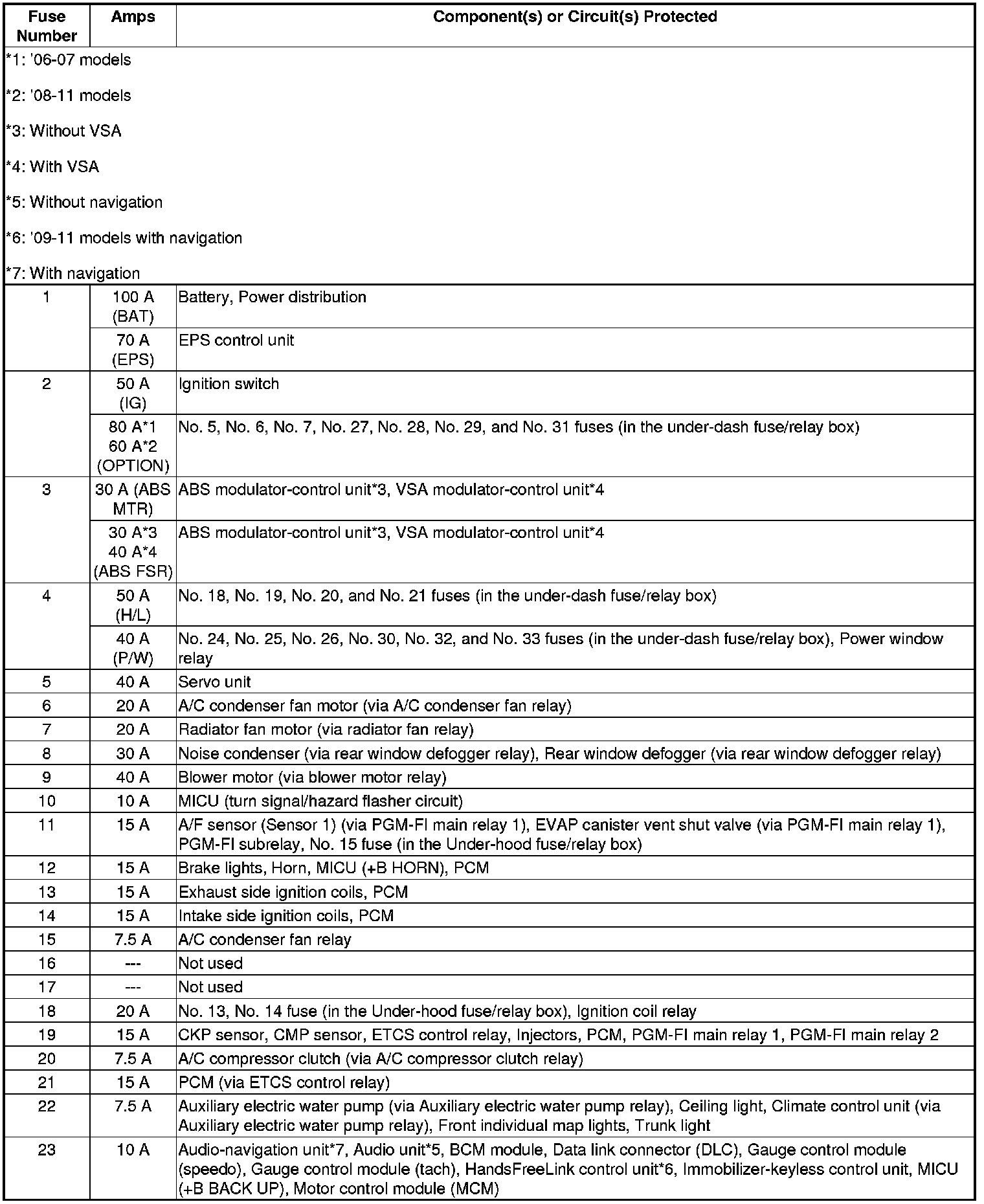

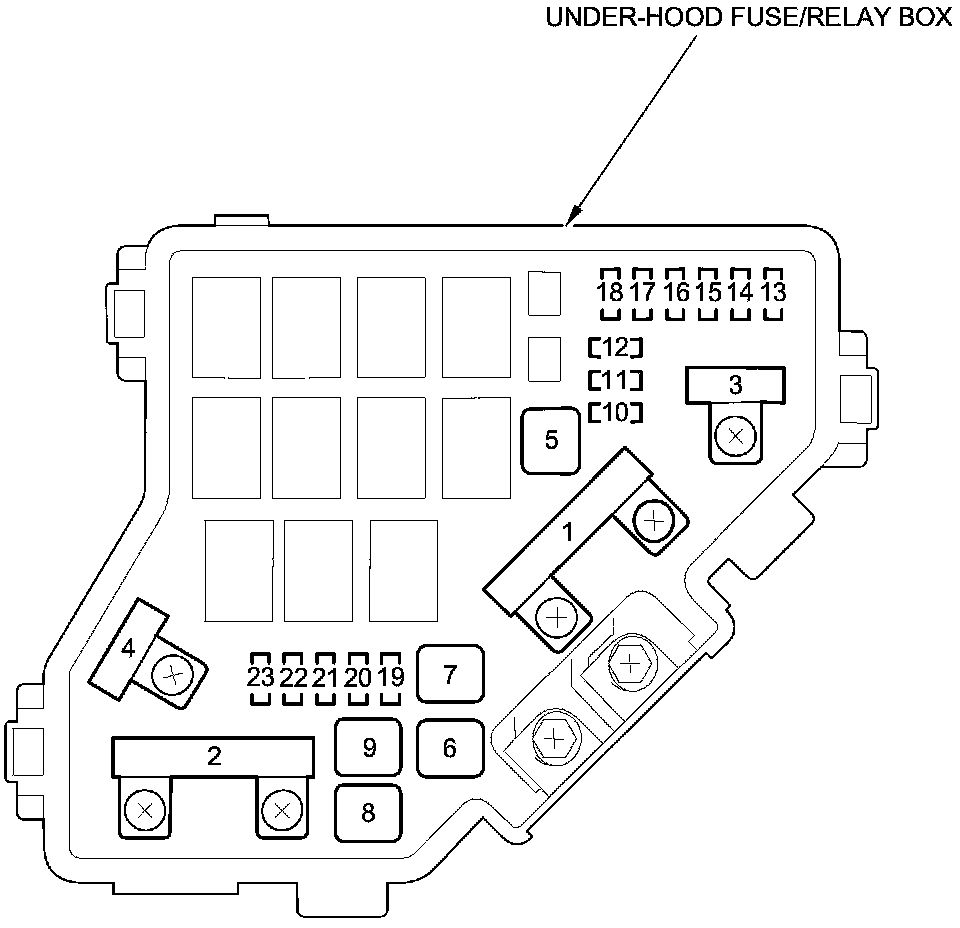

Under-Hood Fuse/Relay Box

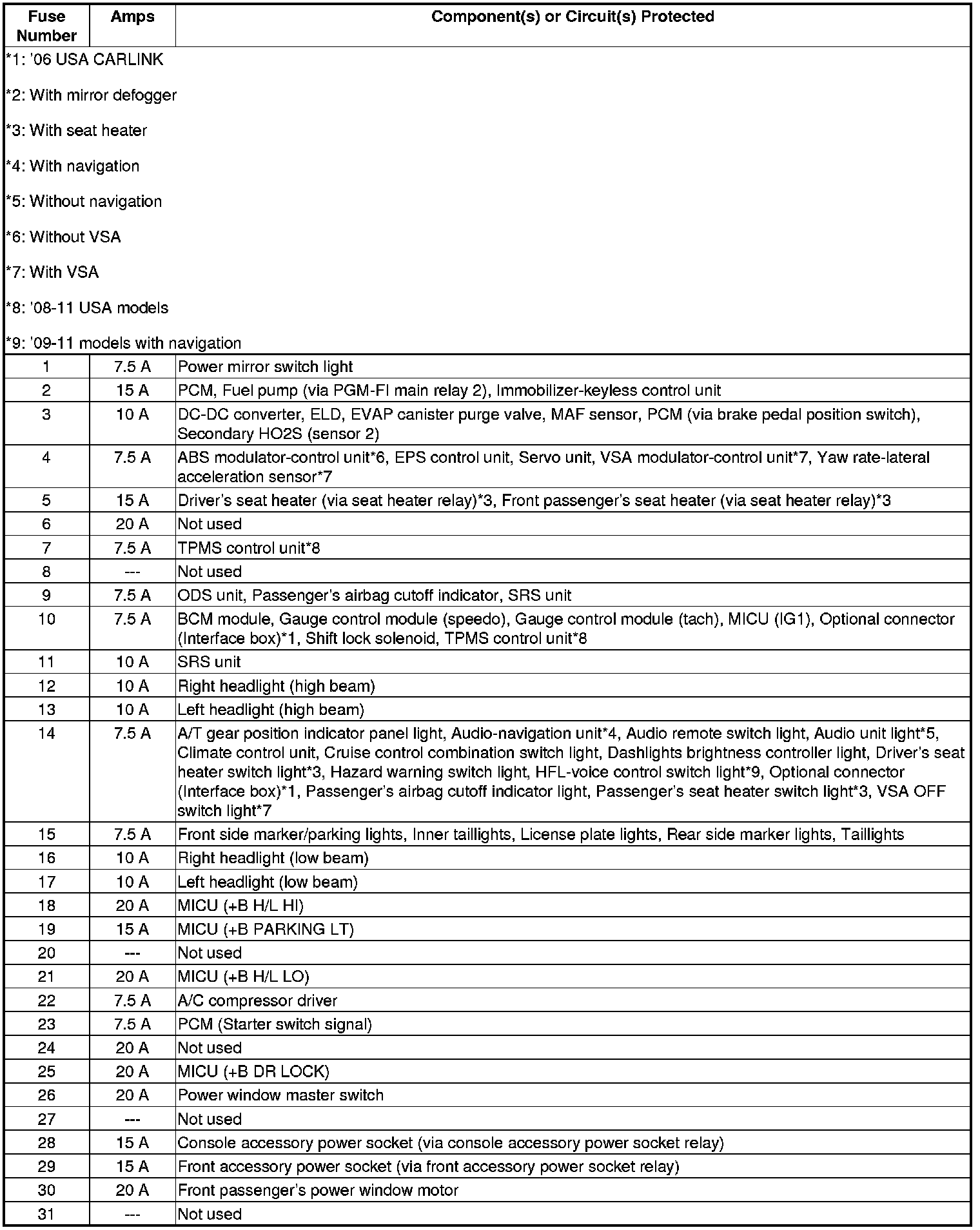

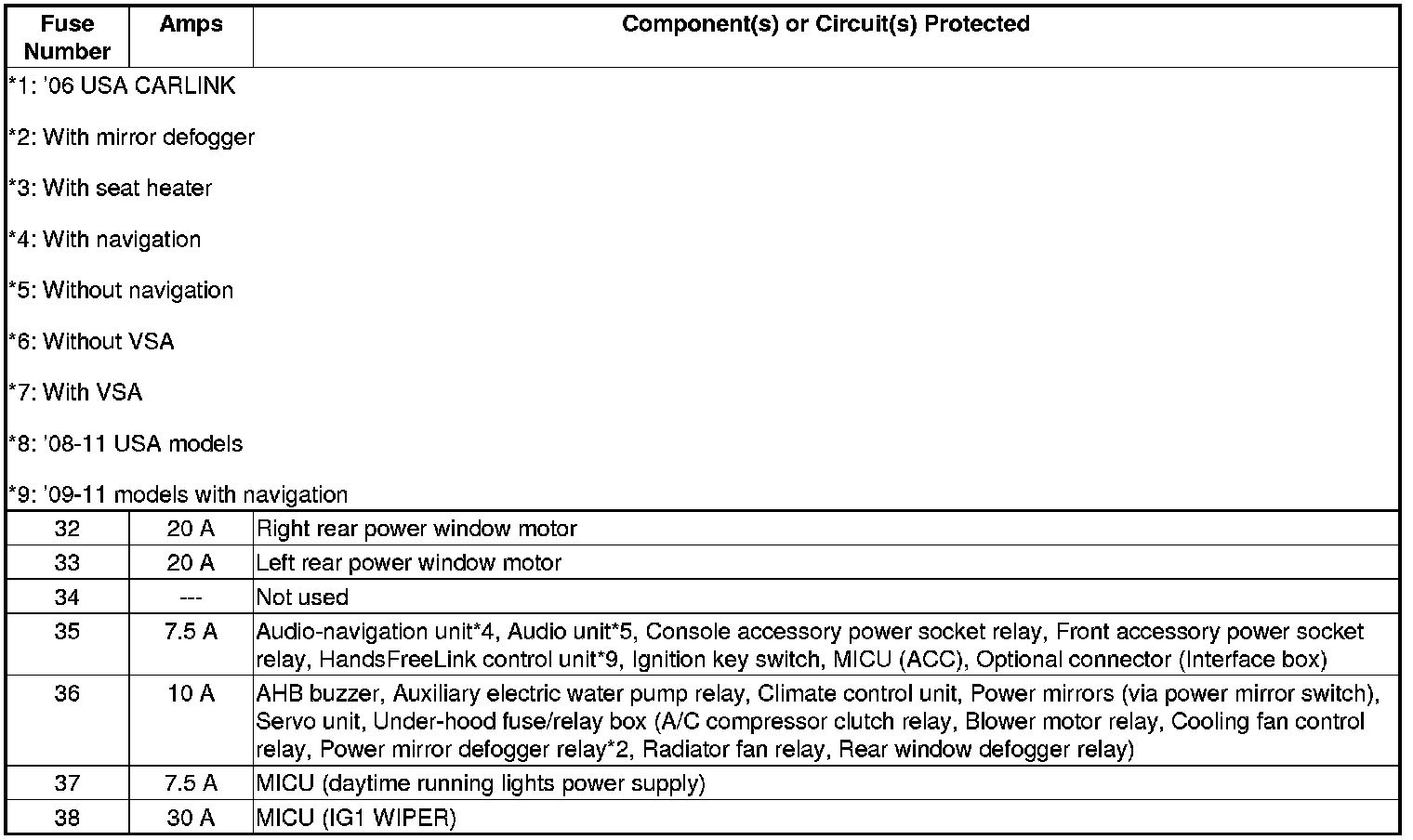

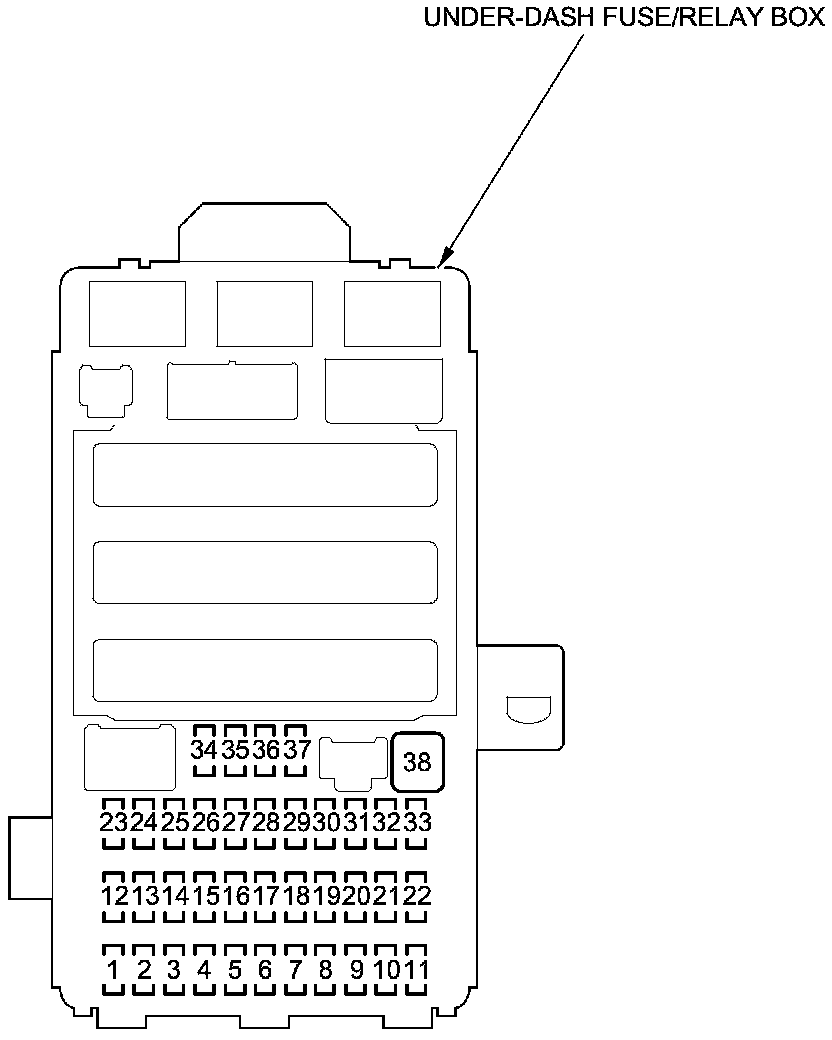

Under-Dash Fuse/Relay Box

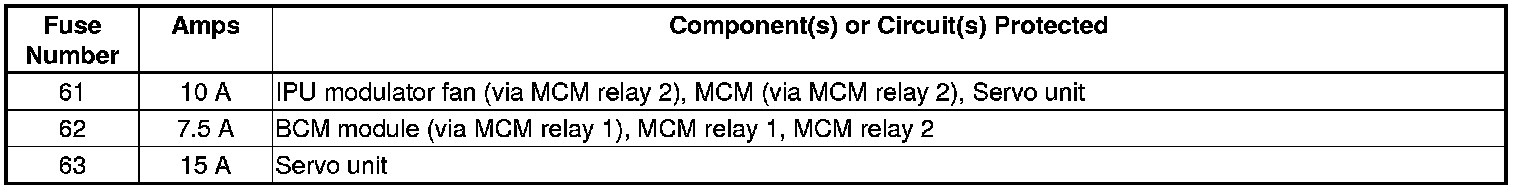

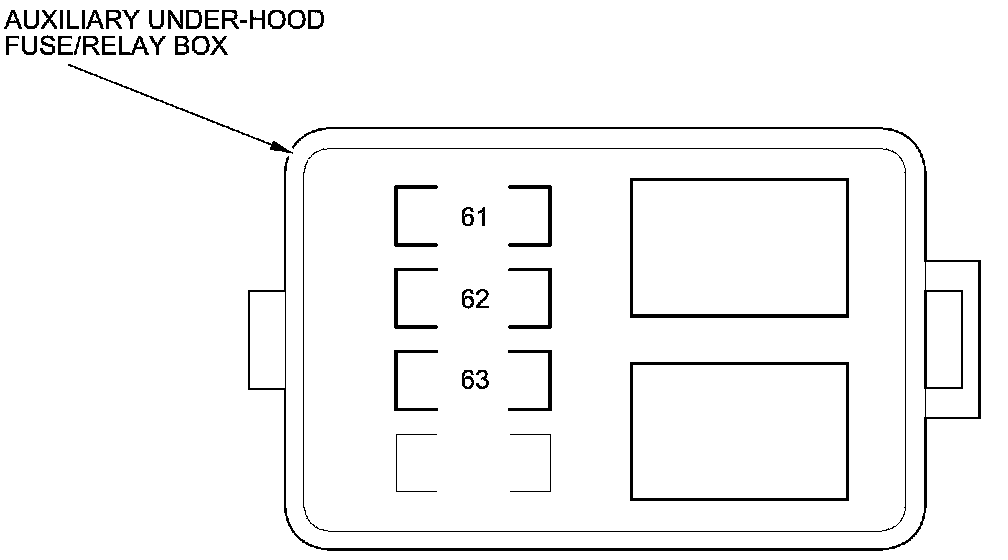

Auxiliary Under-Hood Fuse/Relay box
