Mechanical Specifications
>>
Engine
>>
Cylinder Block Assembly
>>
Connecting Rod, Engine
>>
Tightening Torque and Sequence
Tightening Torque and Sequence
Torque the bolts (E) to
20 Nm (2.0 kg-m, 15 lb-ft)

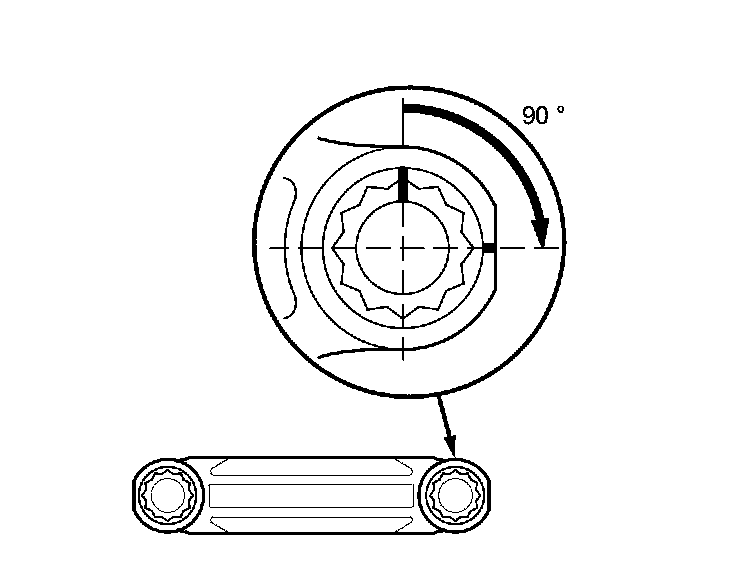

Tighten the connecting rod bolt an additional
90 °
