Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2011
>>
Insight L4-1.3L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

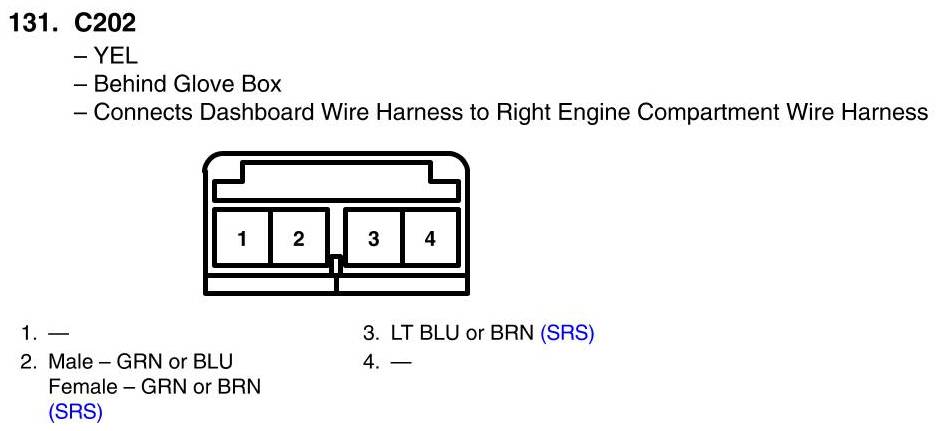

View 131 - C202 Connector View
View 131 - C202 Connector View
