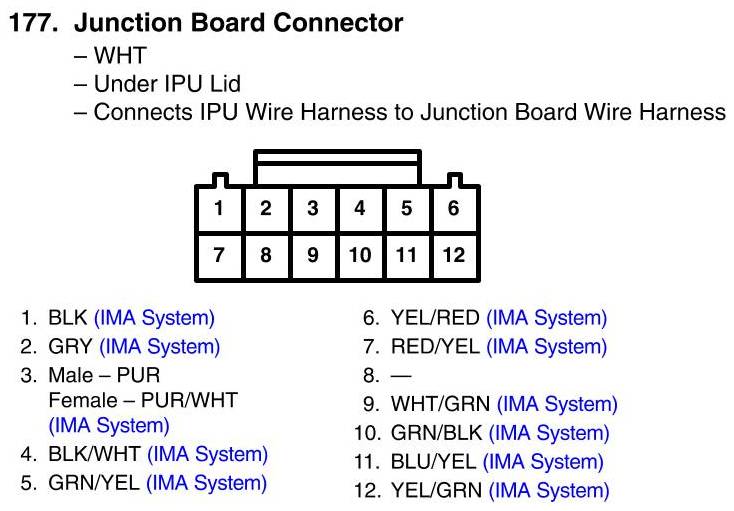

View 177 - Junction Board Connector Connector View
View 177 - Junction Board Connector Connector View
