Home >> Honda >> 2011 >> Insight L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 229 - USB Adapter Unit Connector View (USB Adapter)

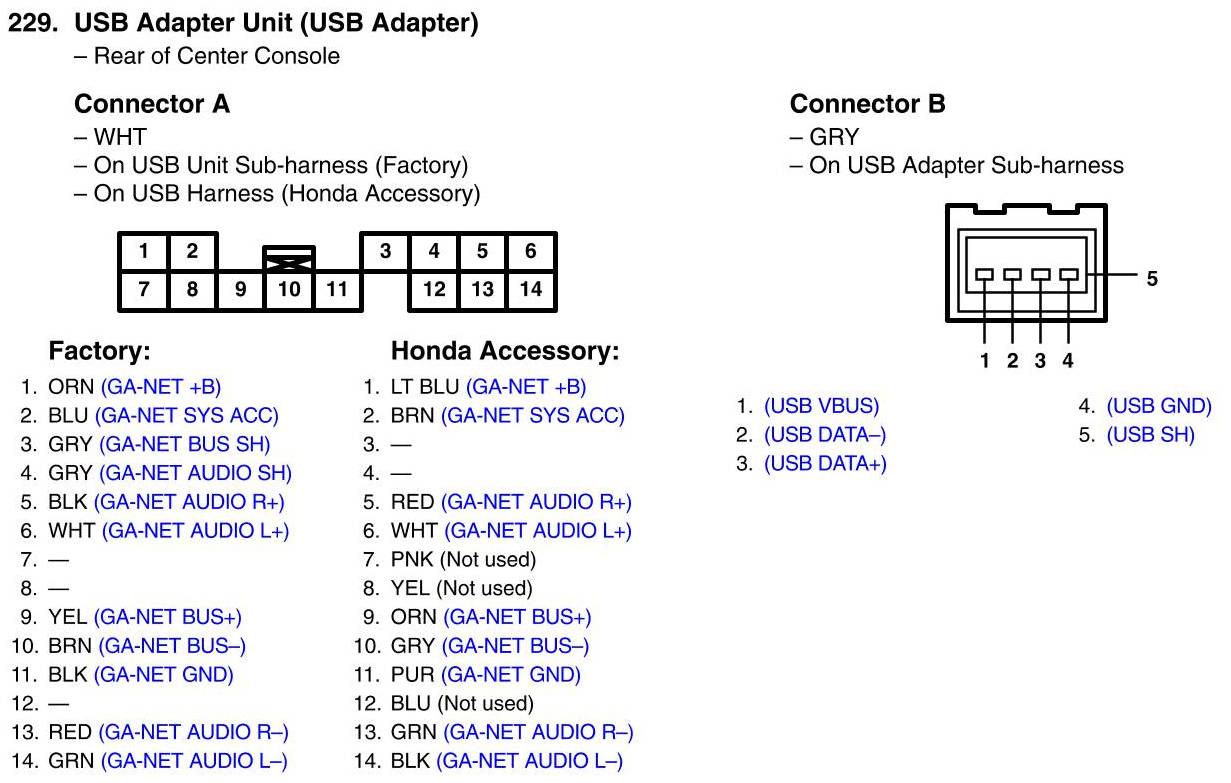

View 229 - USB Adapter Unit Connector View (USB Adapter)
