Home
>>
Honda
>>
2011
>>
Insight L4-1.3L Hybrid
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Fuse To Components Index (Battery Terminal)
Fuse To Components Index (Battery Terminal)

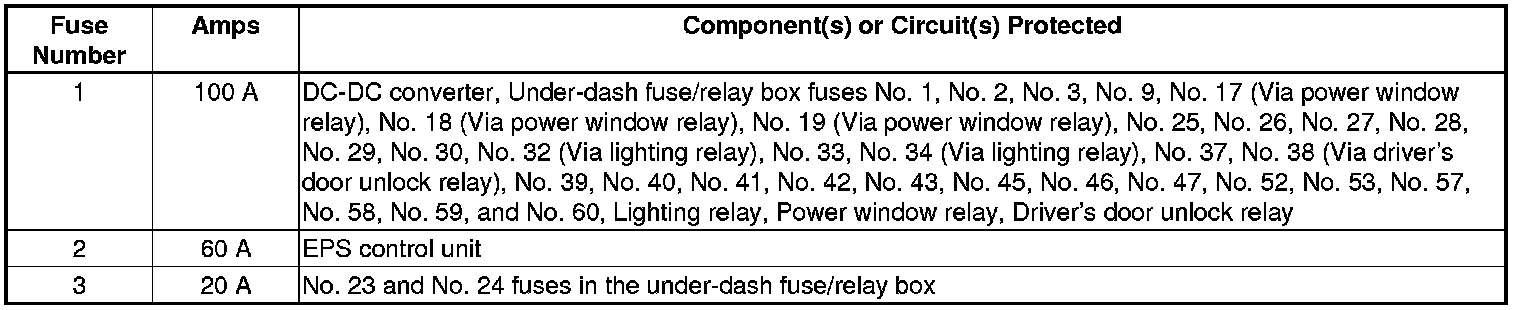

Fuse to Components Index

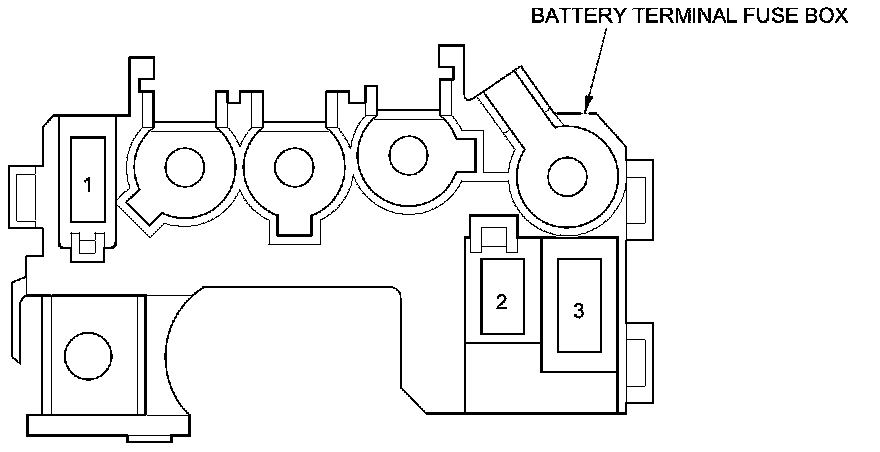

Battery Terminal Fuse Box
