Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Fuse To Components Index (Under-Dash)
Fuse To Components Index (Under-Dash)

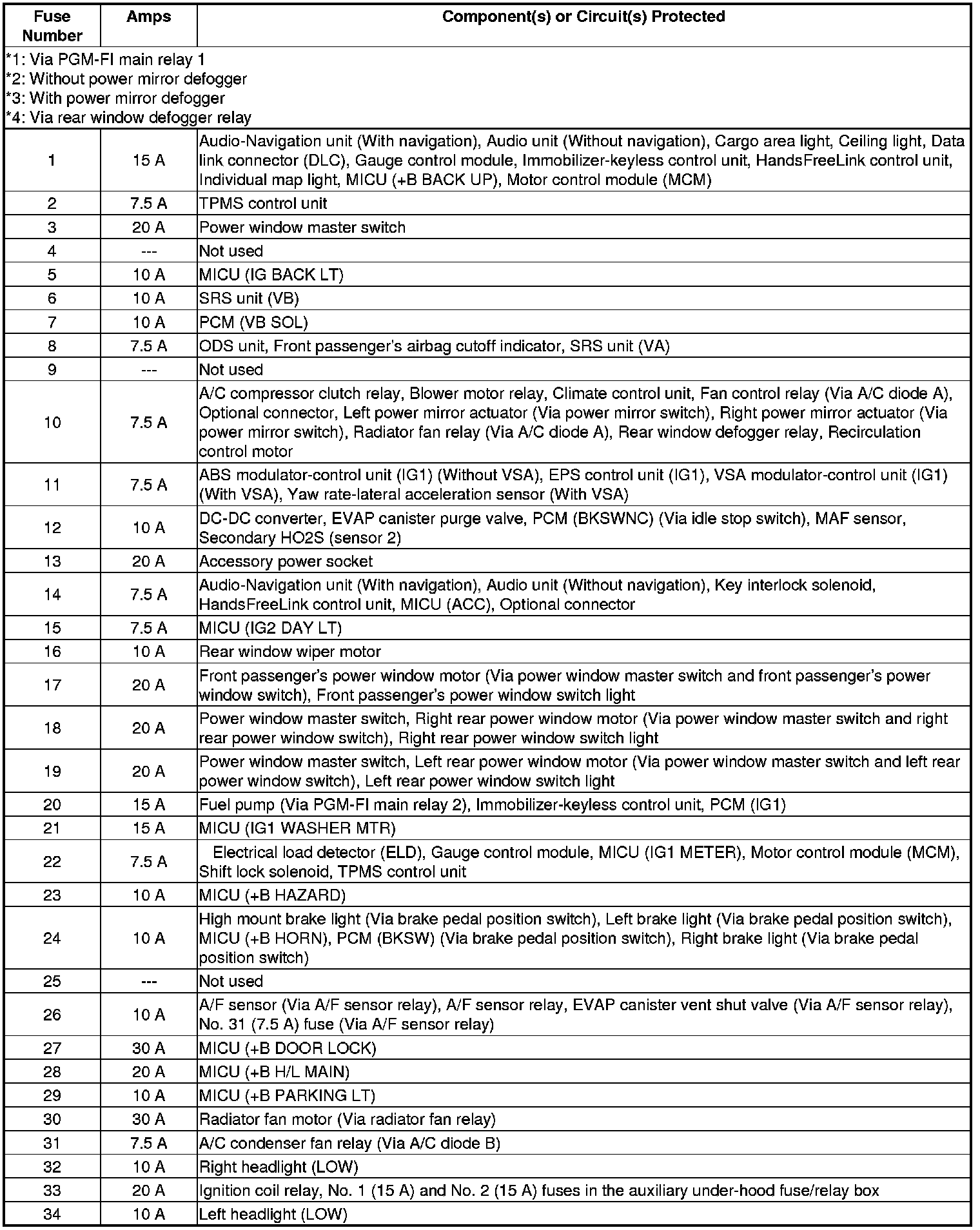

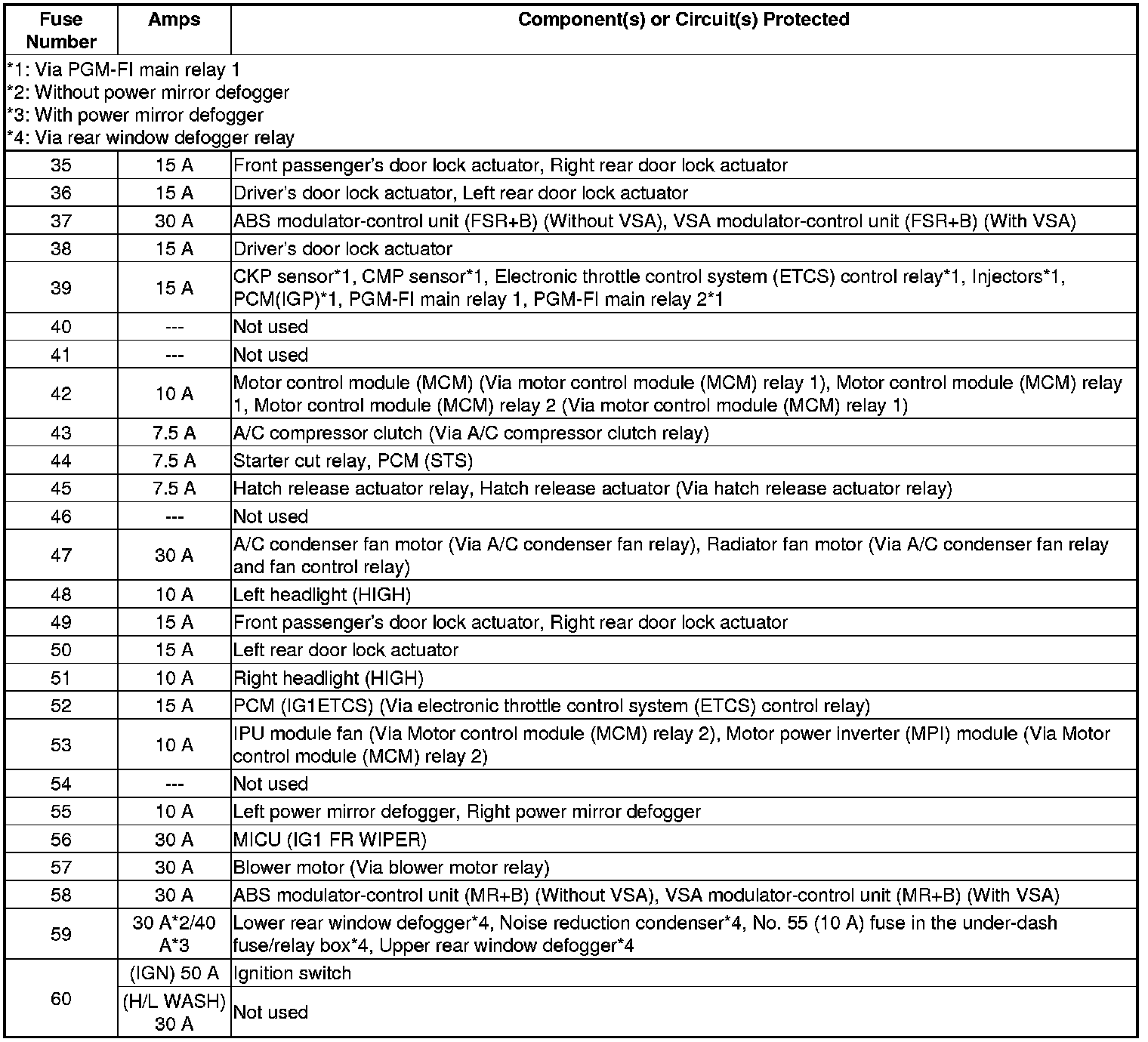

Fuse to Components Index

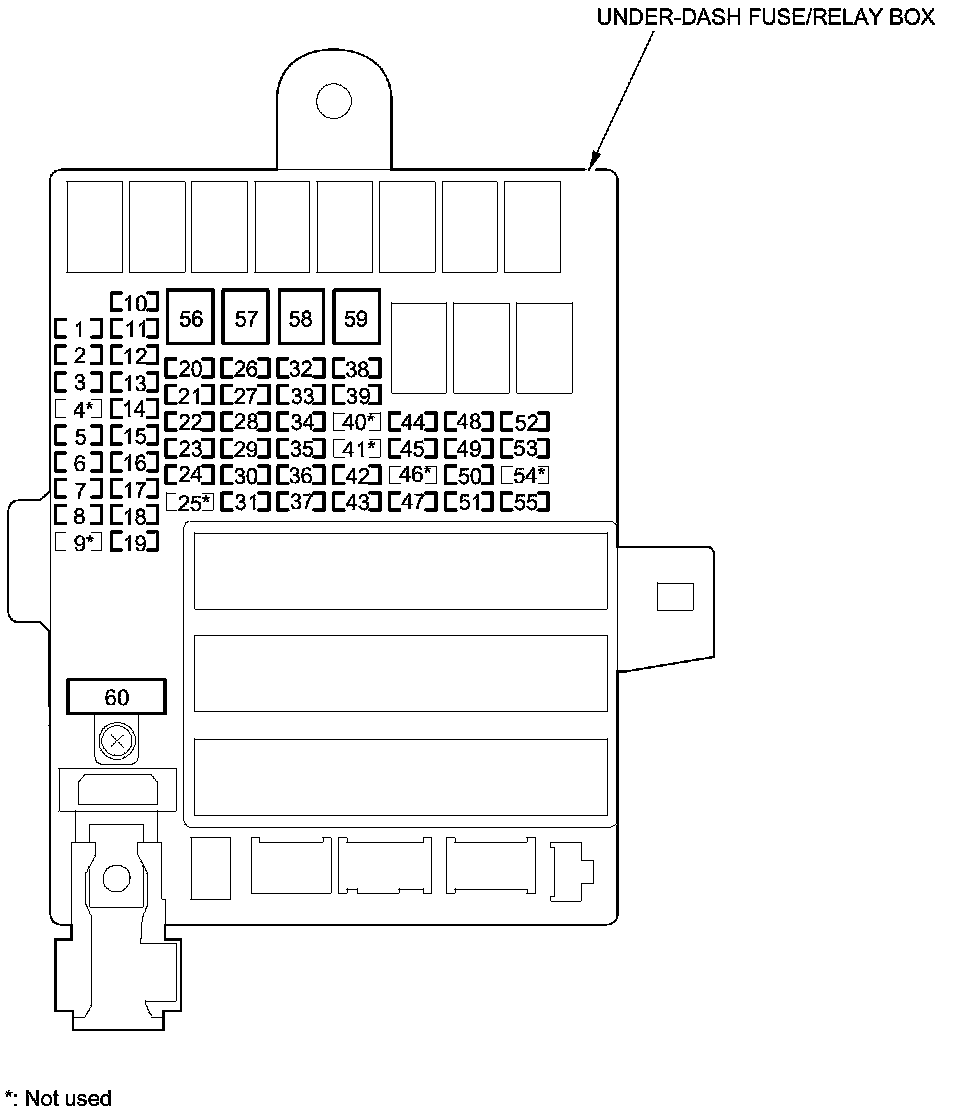

Under-dash fuse/relay box
