Mechanical Specifications
>>
Continuously Variable Transmission/Transaxle, CVT
>>
Fluid Pan, CVT
Fluid Pan, CVT

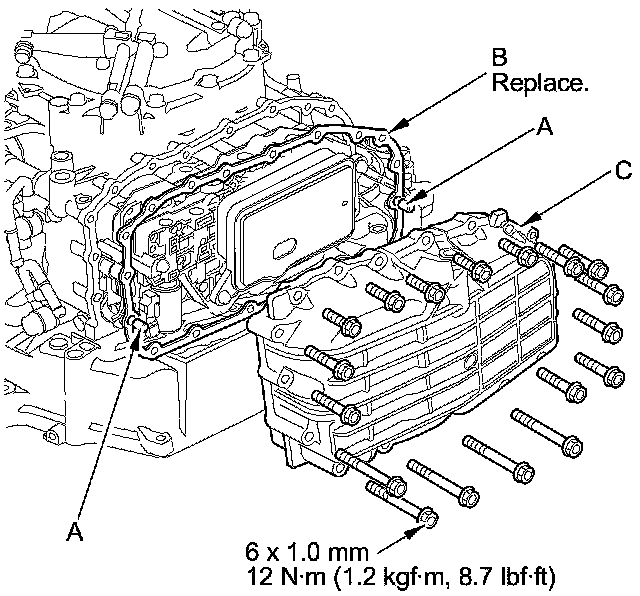

CVTF pan bolts
Tighten to specified torque in a crisscross pattern in at least two or three steps.
