MICU Input Test

MICU Input Test

1. Turn the ignition switch to LOCK (0).

2. Remove the fuse lid panel, and remove the driver's dashboard lower cover.

3. Disconnect under-dash fuse/relay box connectors A, B, N, Q, R, and Y.

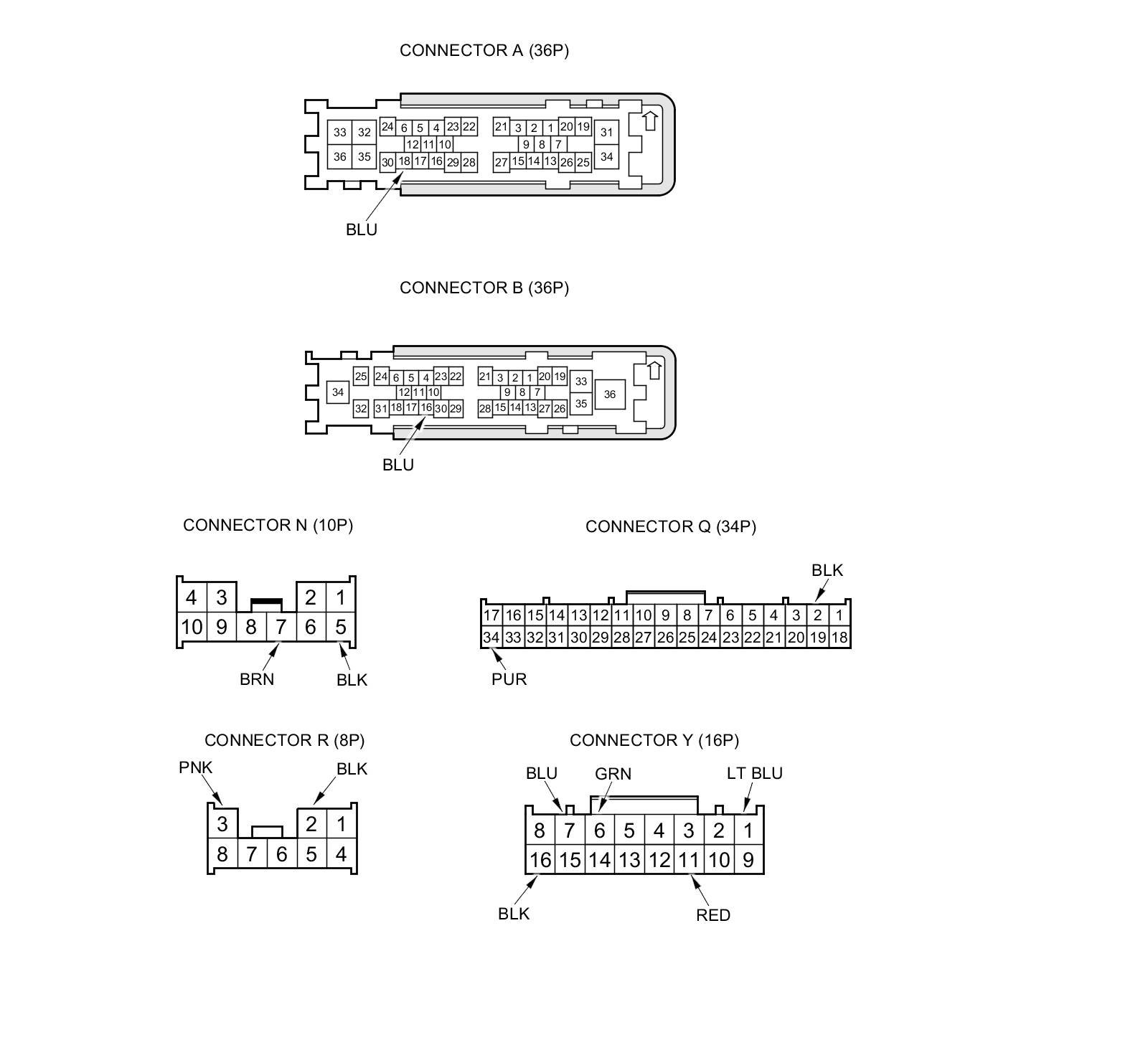

NOTE: All connector views are wire side of female terminals.






4. Inspect the connector and socket terminals to make sure they are all making good contact.

- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 5.

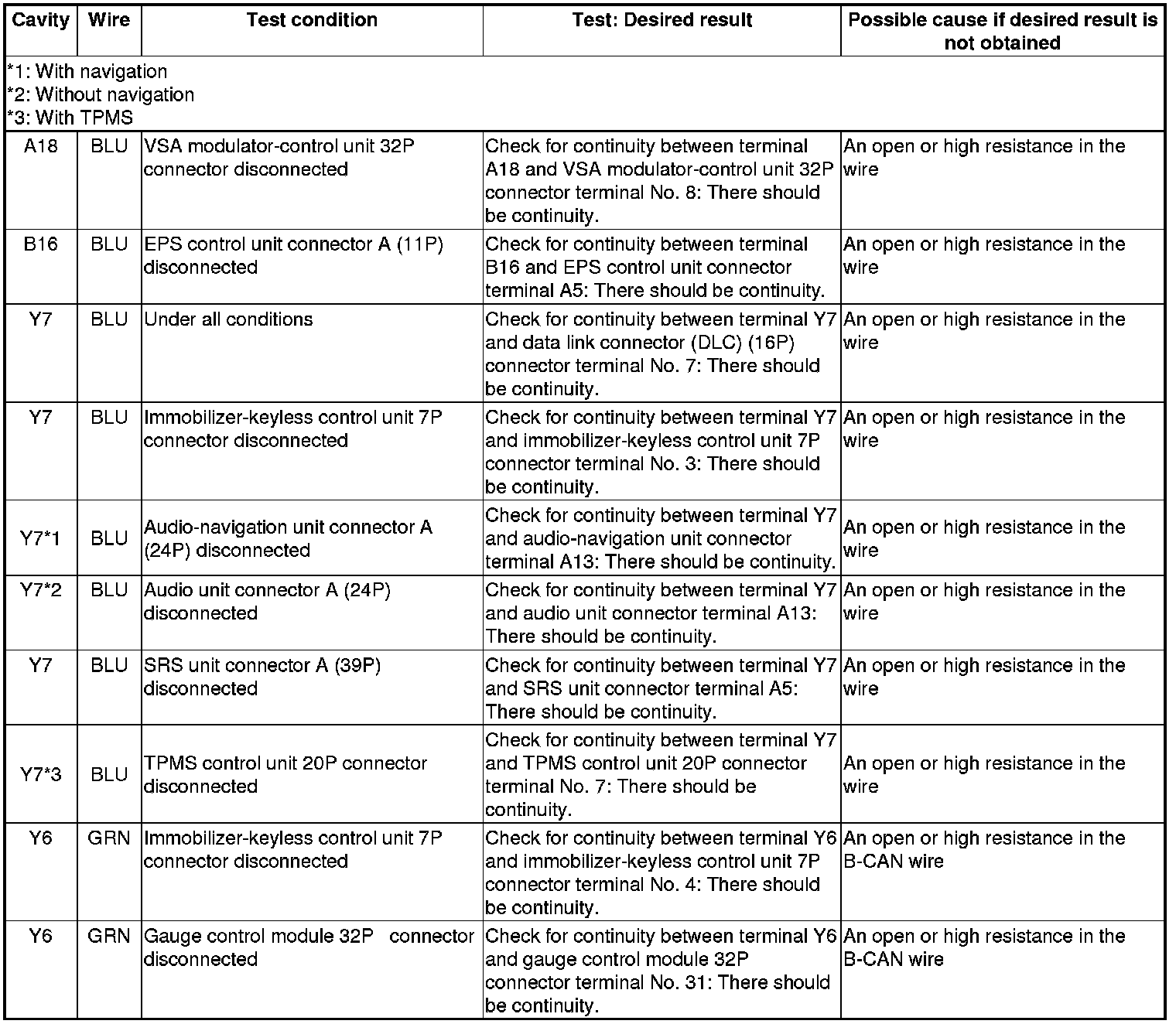

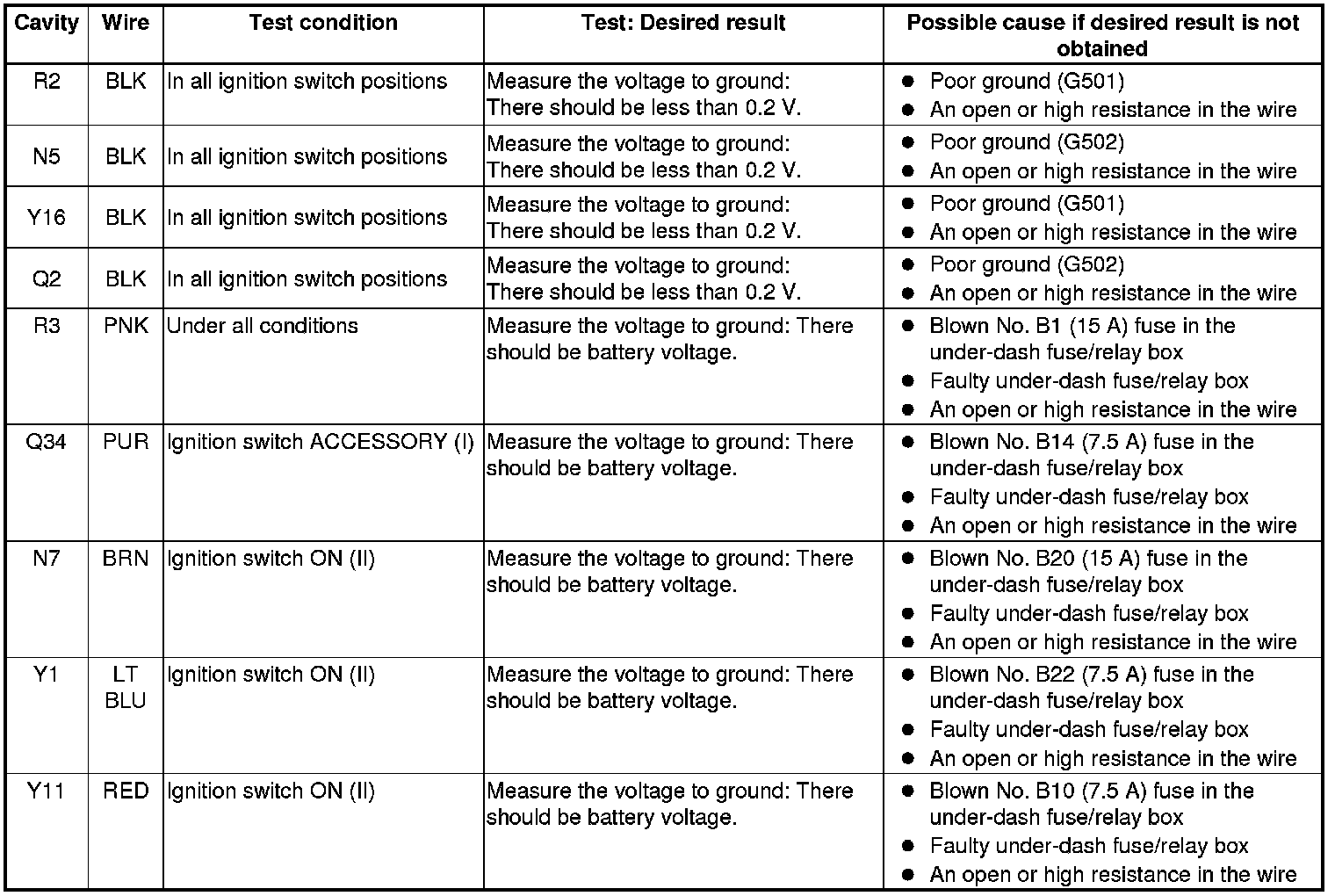

5. With the connectors still disconnected, make these input tests at the connectors.

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 6.

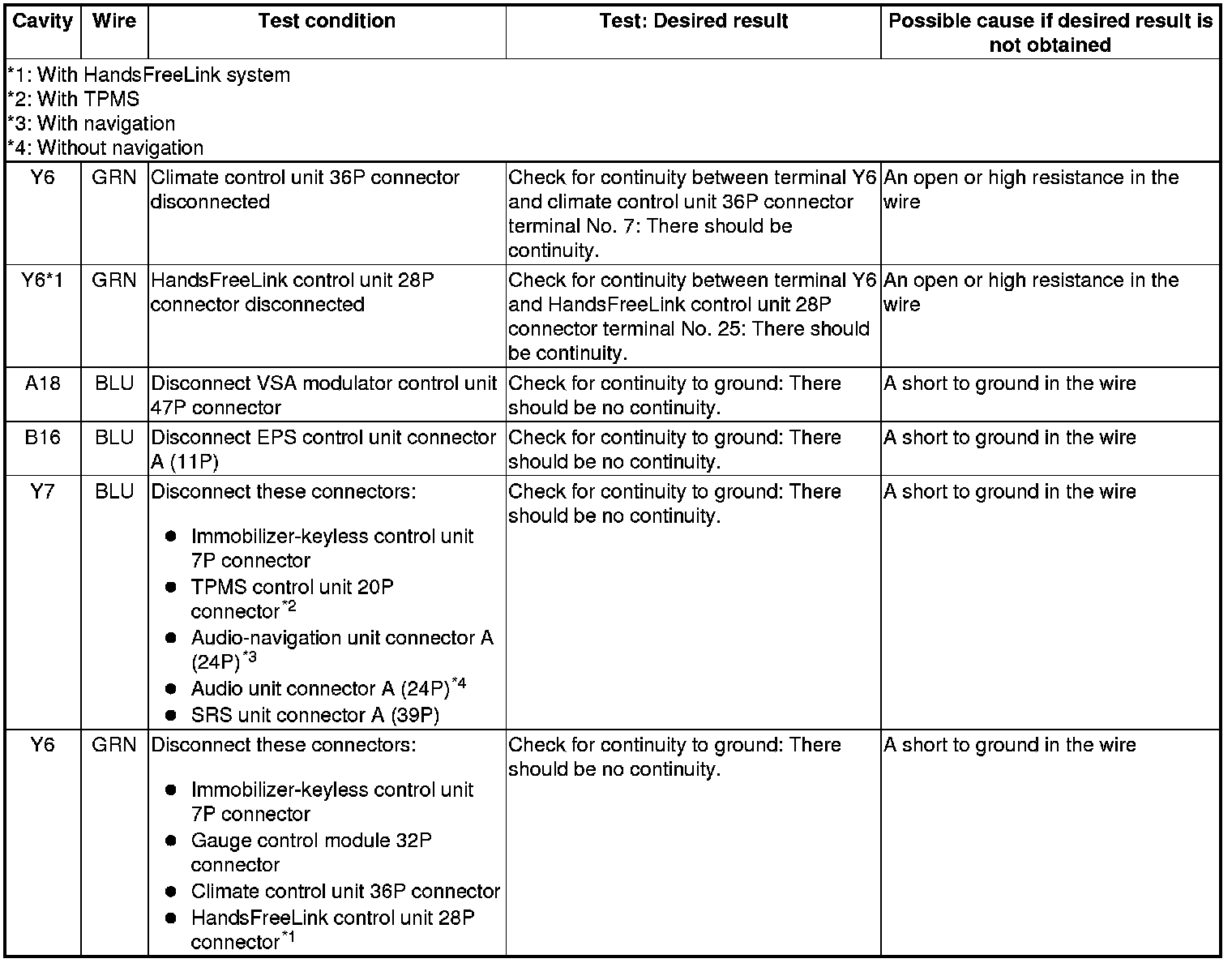

6. Reconnect the connectors to the under-dash fuse/relay box, and make these input tests at the connector.

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 7.





7. If multiple failures are found on more than one control unit, replace the under-dash fuse/relay box (includes the MICU).

- USA models Under-Dash Fuse/Relay Box Removal and Installation (USA Models)
- Canada models Under-Dash Fuse/Relay Box Removal and Installation (Canada Models)

If input failures are related to a particular control unit, replace the control unit.
