Navigation Module: Testing and Inspection
Body
Navigation Unit Connector for Inputs and Outputs

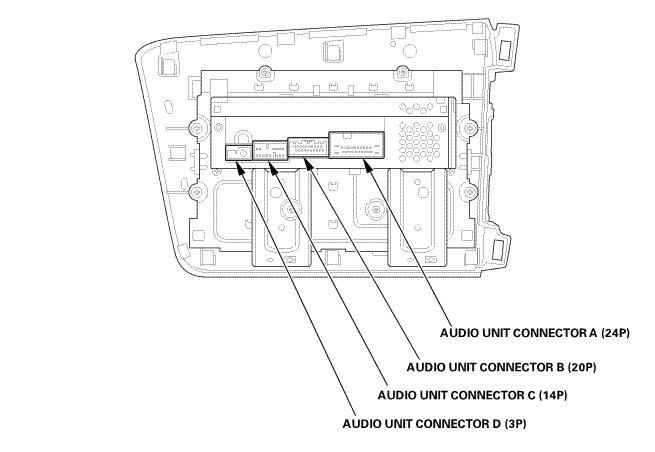

Audio Unit Connector for Inputs and Outputs

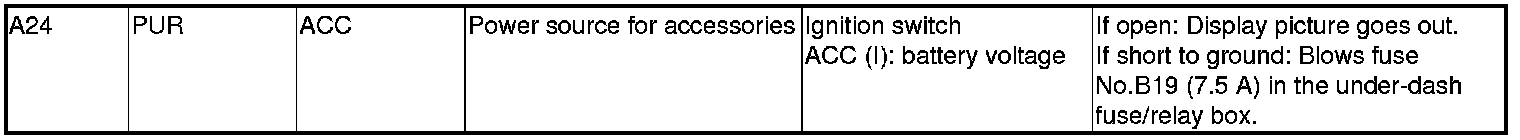

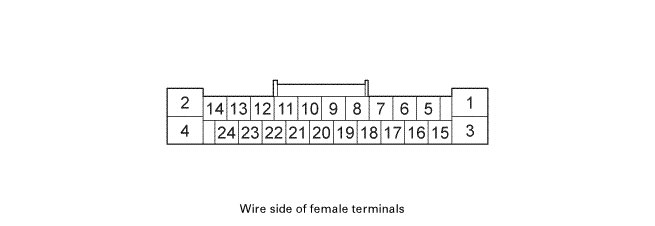

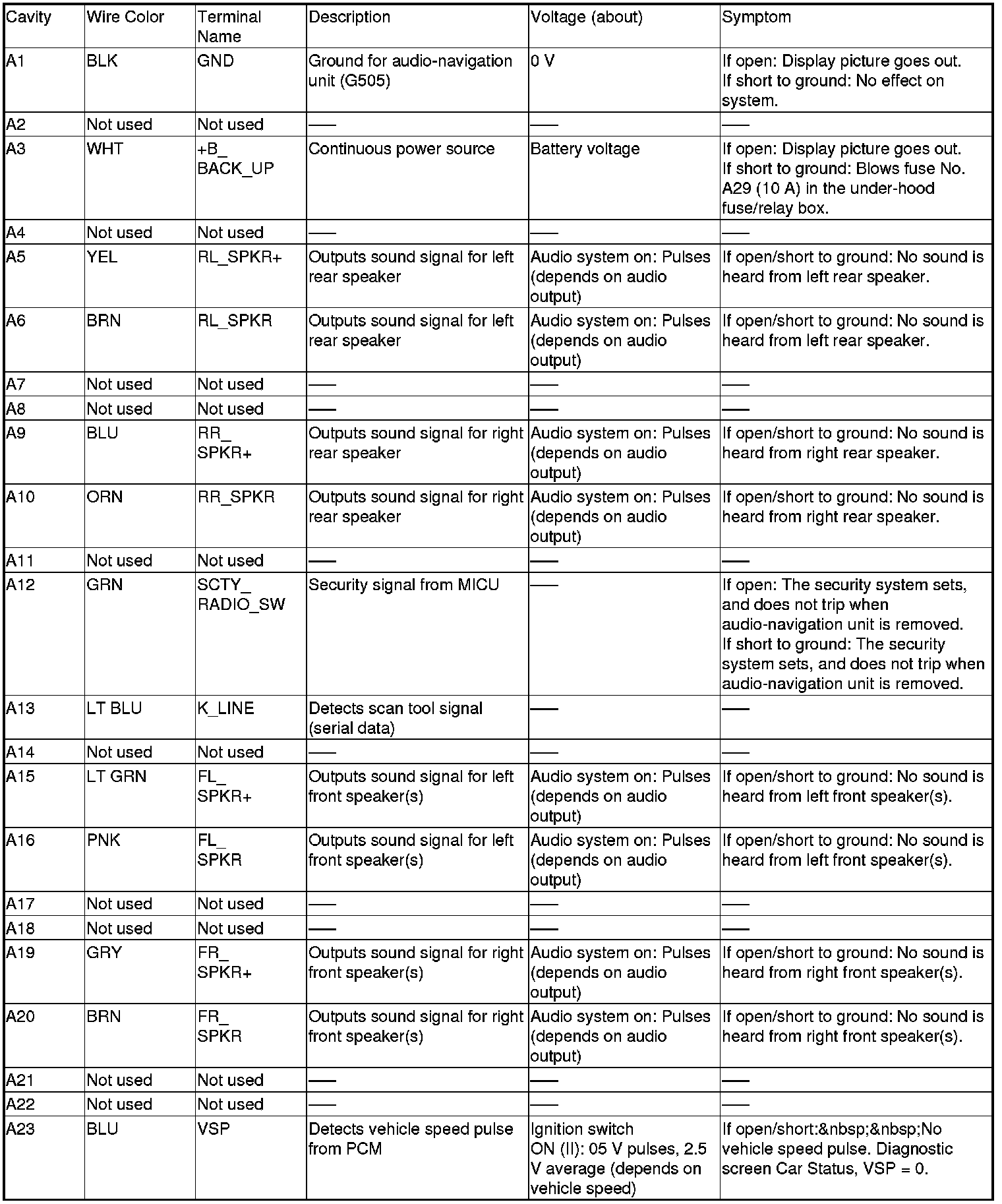

AUDIO-NAVIGATION UNIT CONNECTOR A (24P)

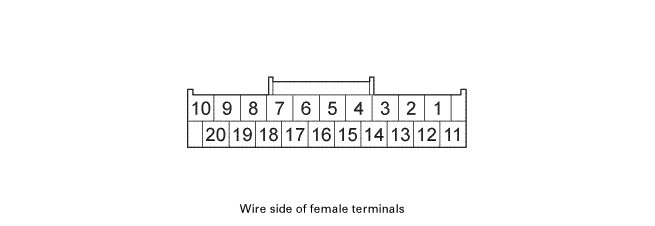

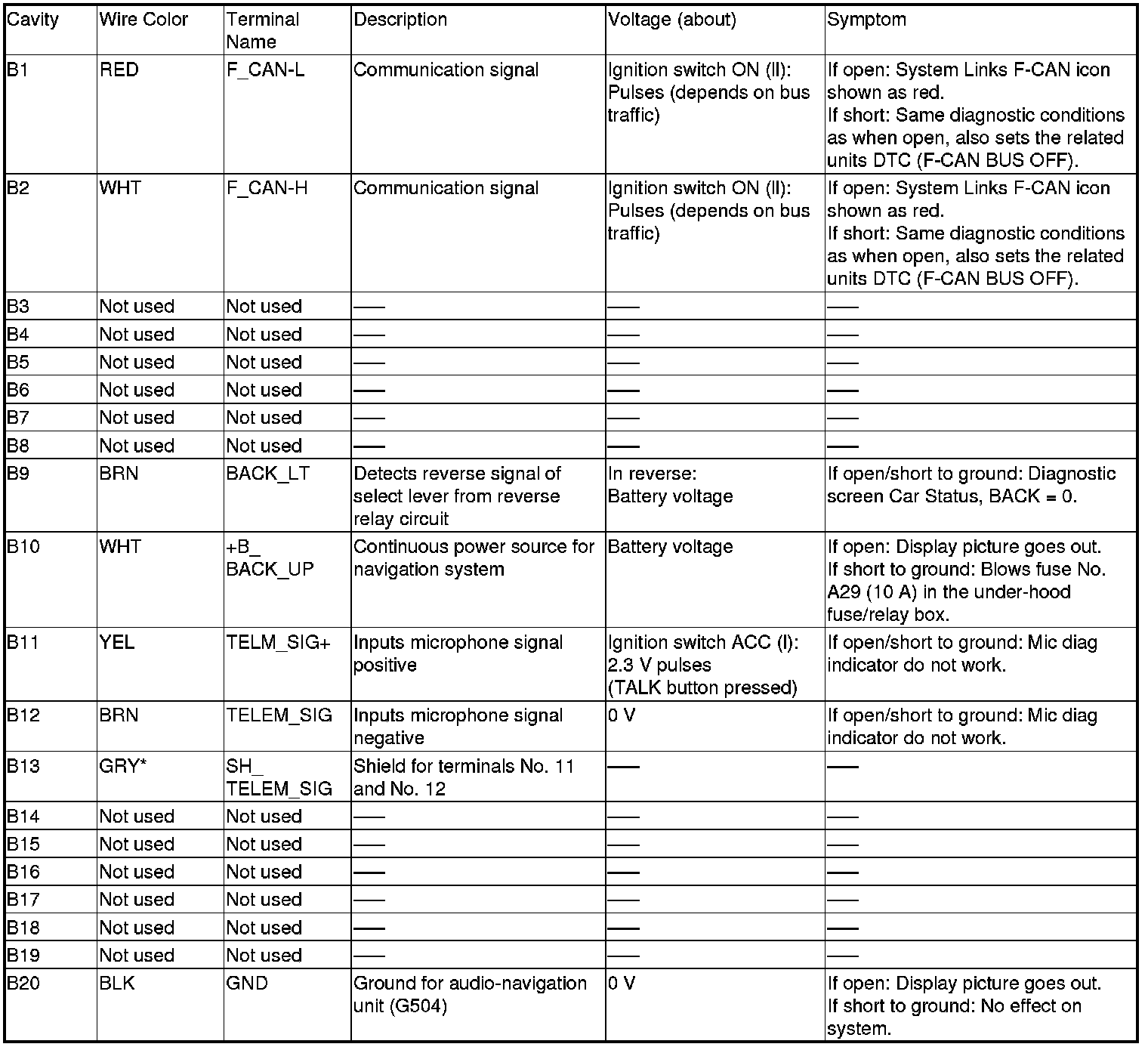

AUDIO-NAVIGATION UNIT CONNECTOR B (20P)

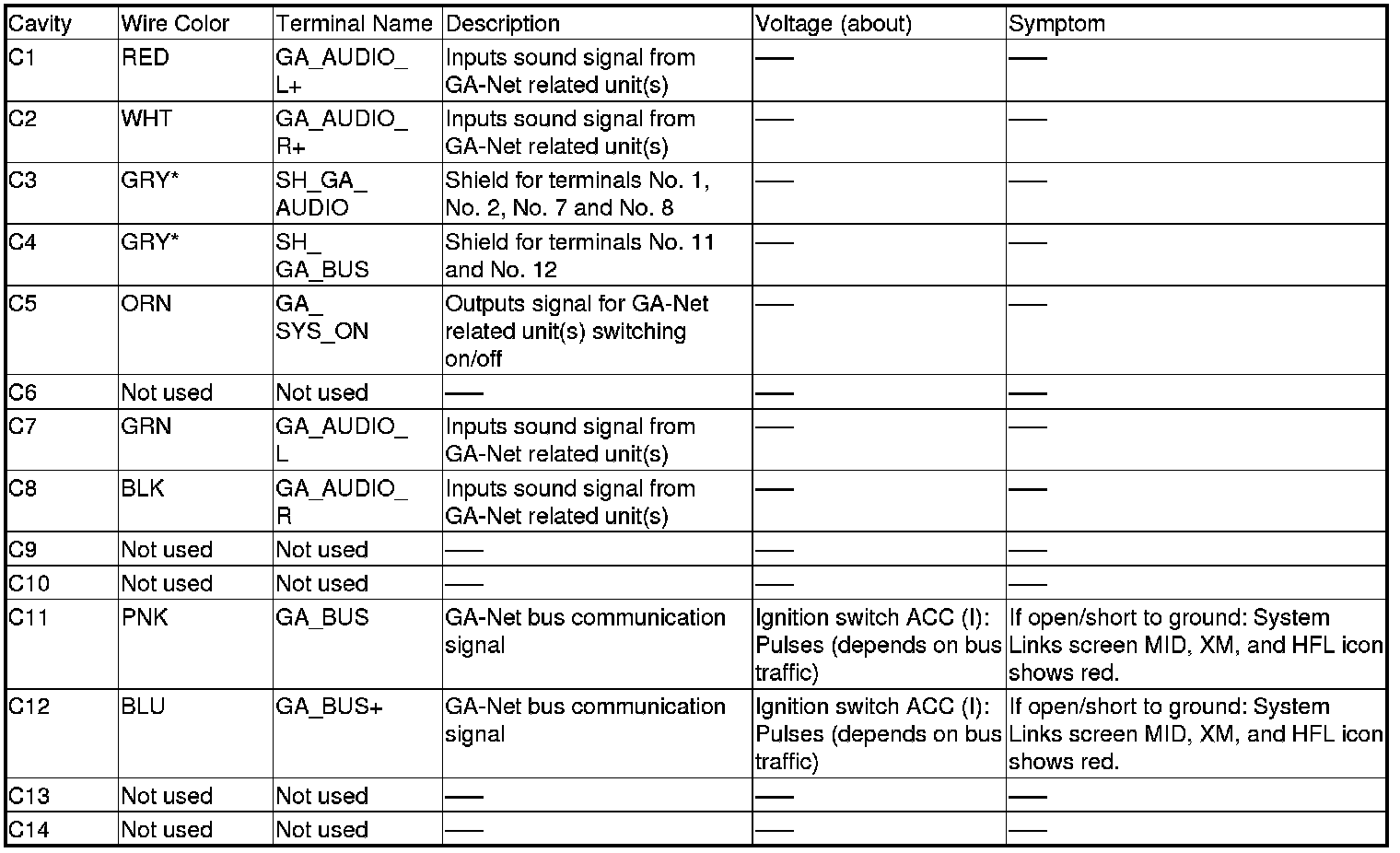

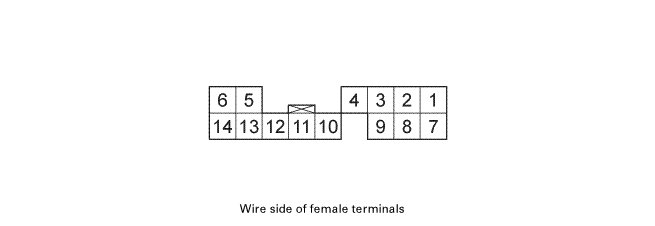

AUDIO-NAVIGATION UNIT CONNECTOR C (14P)

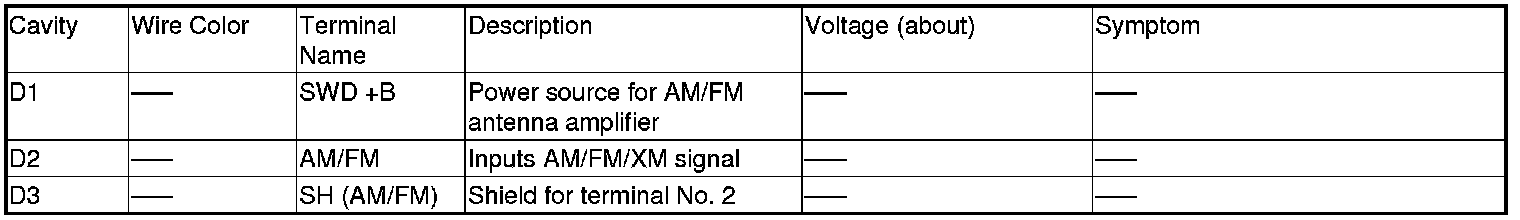

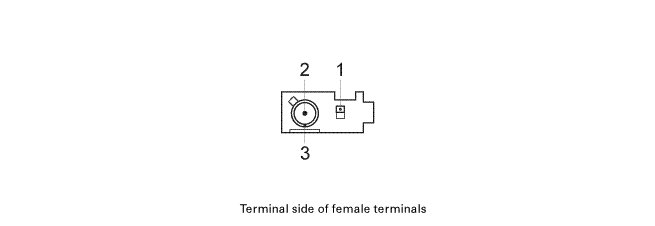

AUDIO-NAVIGATION UNIT CONNECTOR D (3P)

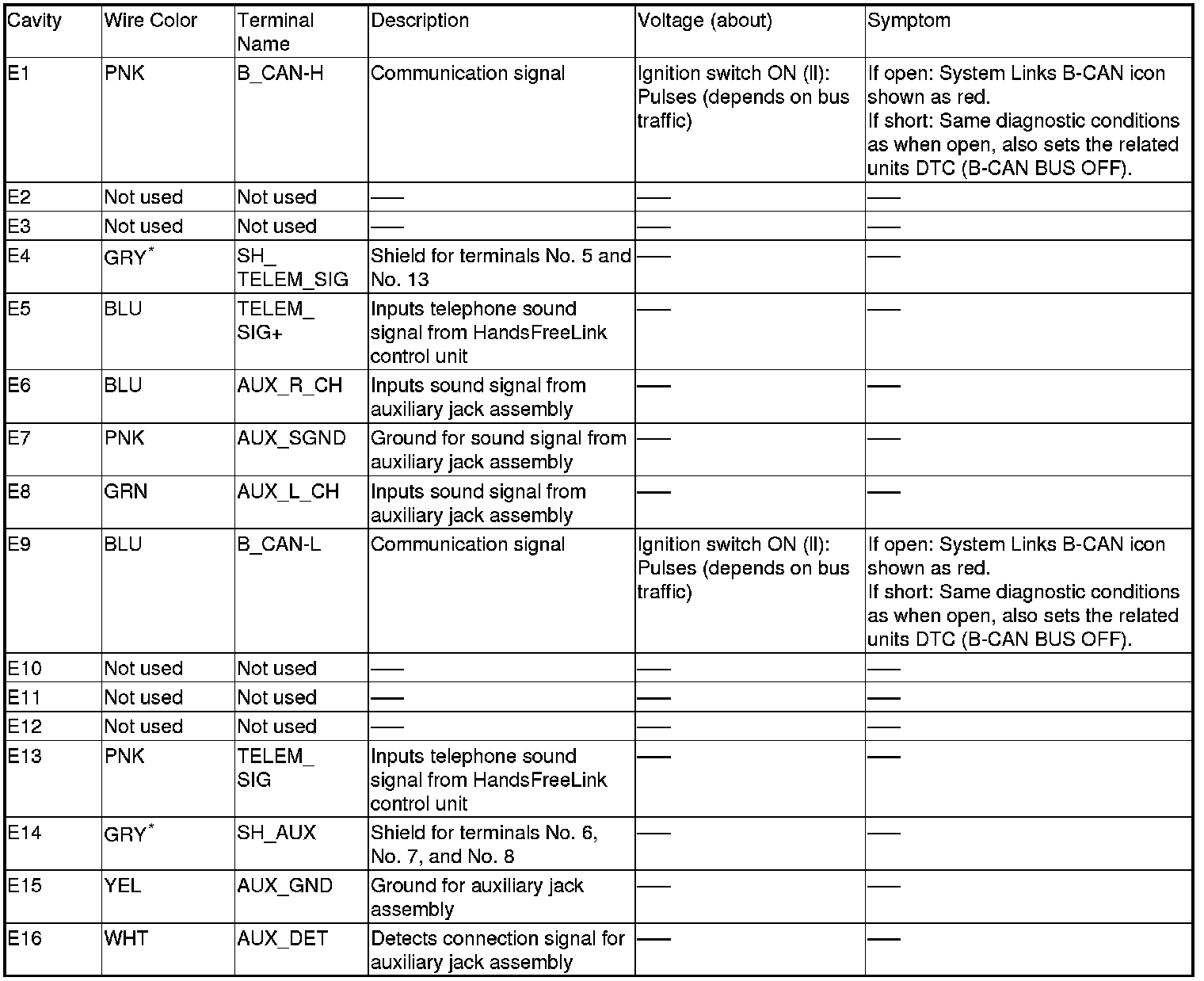

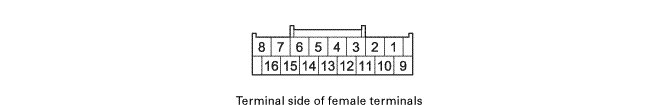

AUDIO-NAVIGATION UNIT CONNECTOR E (16P)

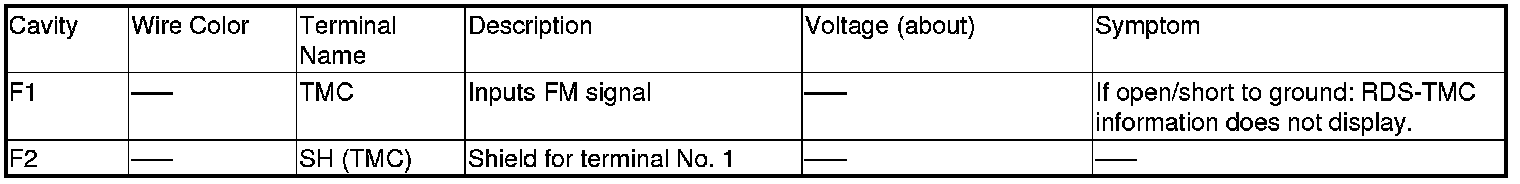

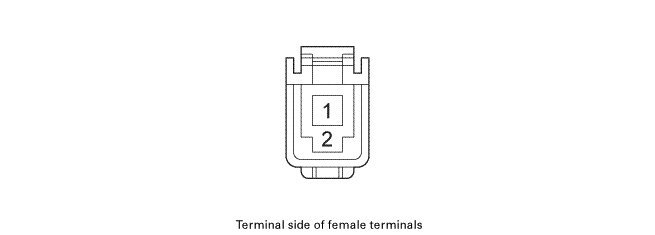

AUDIO-NAVIGATION UNIT CONNECTOR F (2P) (USA models)

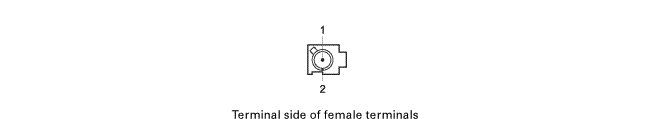

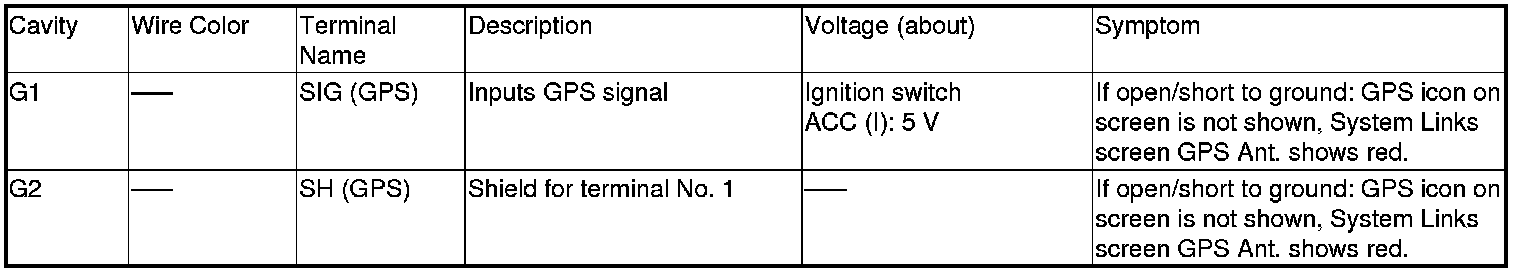

AUDIO-NAVIGATION UNIT CONNECTOR G (2P)

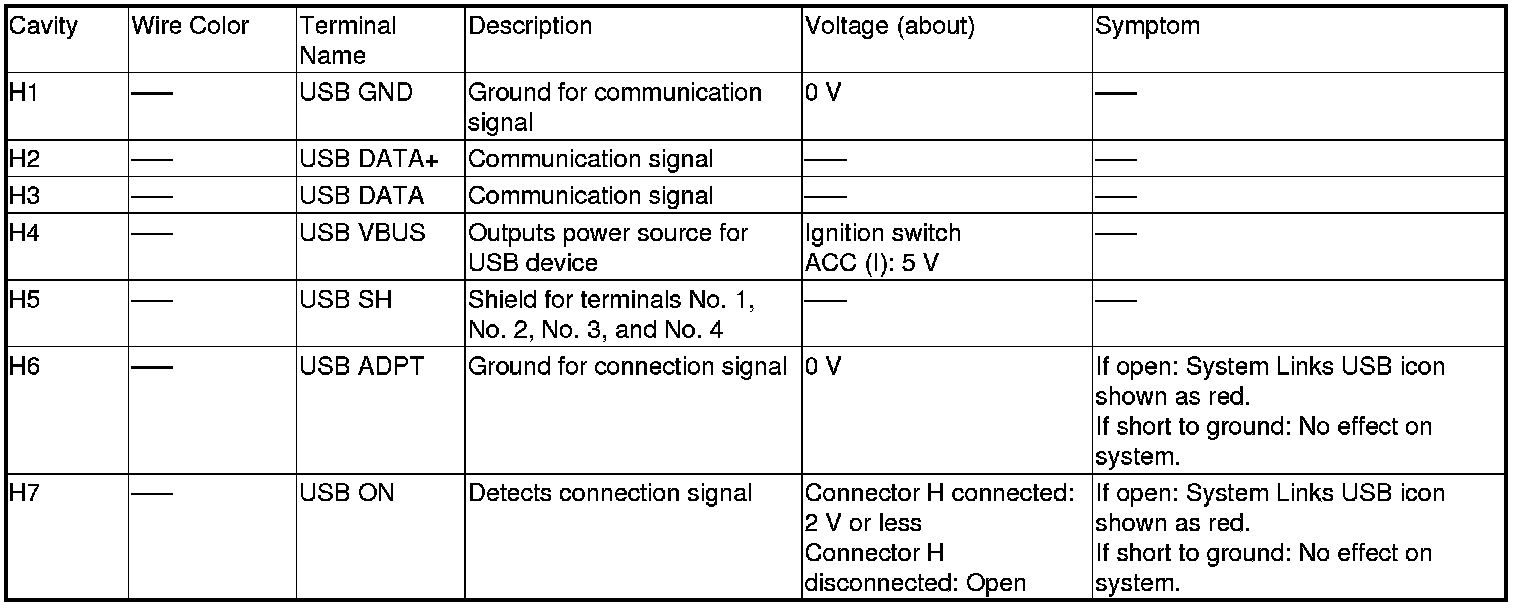

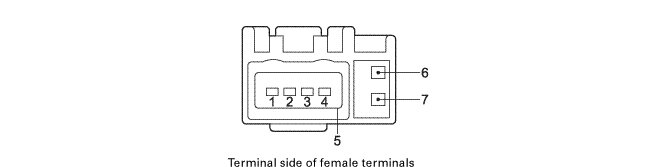

AUDIO-NAVIGATION UNIT CONNECTOR H (7P)
