Brake Fluid: Testing and Inspection

Service Information

Brake Fluid Level Inspection

Inspection

1. Brake Fluid Level - Inspection





1. Turn the ignition switch to ON (II).

2. Press the brake pedal several times.

3. Turn the ignition switch to LOCK (0), then turn it to ON (II) again.

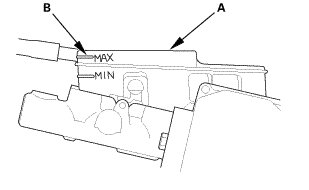

4. Wait several seconds for the brake fluid in the subreservoir (A) to stabilize.

NOTE: Do not operate the brake pedal while doing this procedure.

5. Check that the brake fluid level in the subreservoir is at the MAX (upper) level line (B).
