A/F Sensor Removal And Installation

Service Information

A/F Sensor Removal and Installation





Removal

1. A/F Sensor





1. Disconnect the connector.

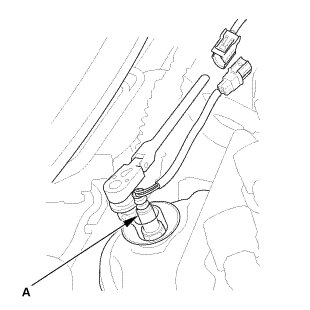

2. Remove the A/F sensor (A).

Installation

1. A/F Sensor

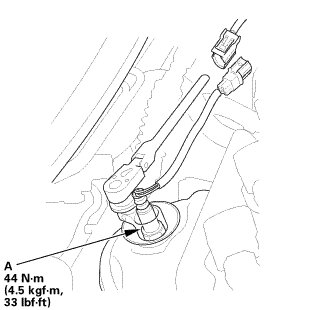

1. Install the A/F sensor (A).

2. Connect the connector.
